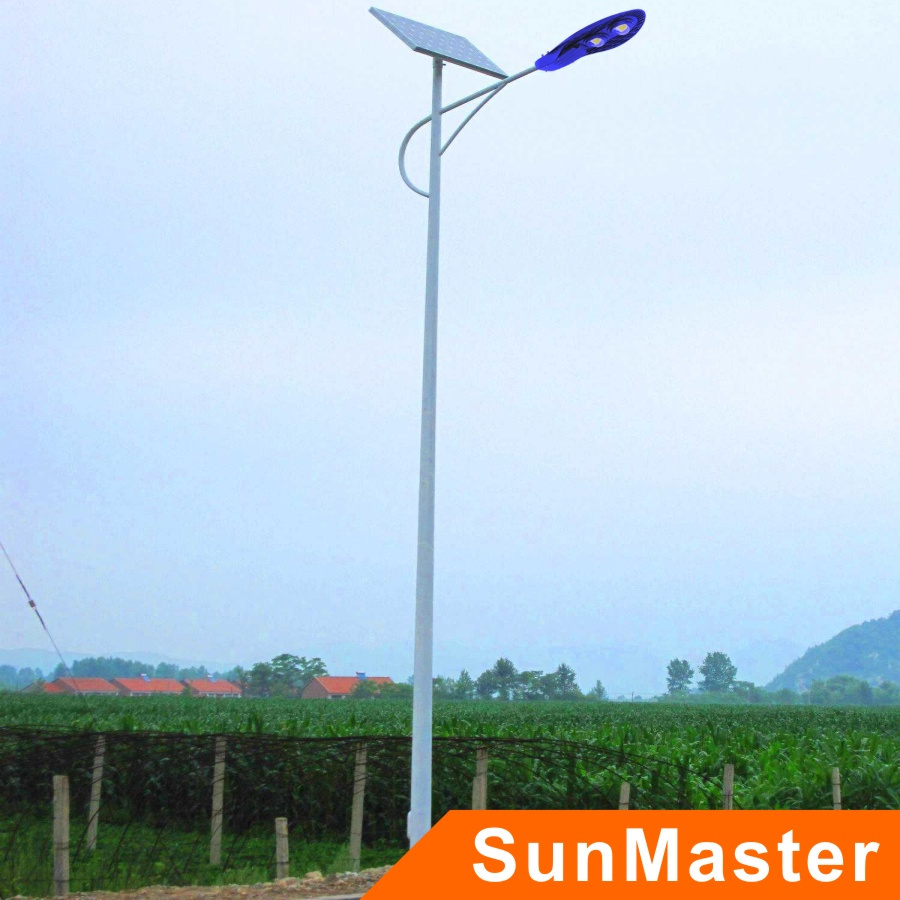

Solar LED Street Light(80W)
1. Light source: High frequency electrode bulbs, low voltage sodium, LED etc.
2. Solar panel: 60wp, 85wp, 100wp, 120wp, 160wp, 175wp, 220wp etc.
3. Lamp pole: Nice shape lamp with spray-paint after hot galvanization, designned in 4m to 13m according to customers' requests.
4. Working time: 6-12hours per day and continue working 2-5days according to customers requests.
5. Suitable installation: Uptown road, courtyard, park, tourscenery.
Δ ADVANTAGE:
1. USACree/Bridgelux Q5 LED, multi-functional
2. Environment protection, Energy saving
3. Easy installation, Long life span
4. Free of maintenance
5. Low voltage, safe and reliable
6. Independence operation system
7. Applications: Street, Garden, Public square, Park |
|
Δ MATERAILS:
1. Lamp Body:
high pressure die-cast aluminum, corrosion resistant house, high in strength and compact in structure;
The surface is static spray-paint, high temperature and weather resistant frame tenure, colorful;
2. Pole Material: SS400 steel, pot galvanizing, plastic spray treatment. |
|
Δ Working time: 10hr/d, 6H full-energy mode + 4H energy-saving mode, 3 continued overcast & raining days. |
|
Δ LED LIGHT SPECIFICATIONS |
Model No. |
STL01-80W |
Lamp power |
80W |
LED quantity |
80pcs*1W |
Voltage (V) |
DC24V |
Luminous Efficiency |
80~90 LM/W |
Color temp. (K) |
5500~6500 |
Ilumination (LUX) |
35LUX 8m |
Beam angle |
135° |
Working temp. (º C) |
-15~+55 |
IP grade |
IP65 |
|
Δ SOLAR PANEL SPECIFICATIONS |
|
cell |
mono or poly, conversion efficiency: 17% |
Pmax(W) |
150W |
Vmp(v) |
35V |
|
Δ SOLAR CONTROLLER 10A/24V SPECIFICATIONS |
ITEM NO. |
24V / 10A |
Perfect protect function:
1. Battery reverse connection protection
2. Solar panel reverse polarity connection protection
3. Over load and short circuit protection
4. Back flow from battery to solar module protection
5. Battery open circuit protection
6. Lighting surge protection(in case necessary)
7. Over-charging and over-discharging protection
8. LED display
9. Thunder strike protection;
10. Time control and light control. |
|
Δ Battery 12V120AH*2pcs Maintenance-free Lead-acid SPECIFICATIONS |
Nominal Voltage |
12V |
Nominal Capacity (10HR) |
120AH |
qty |
2pcs |
|
Δ Battery Box Location Optional
1: underground
2: on top of the pole
3: at root of pole(have A and B design as following) |
|
Δ Packing Information |
Parts |
Qty |
Pack mode |
Size(cm) |
Weight(kg) |
40 HQ Container (sets) |
Pole |
1 |
Poly |
500*40*40 |
260 |
90 |
LED Lamp |
1 |
carton & poly |
73*37*30 |
10 |
Solar panel |
1 |
carton & poly |
130*90*14 |
15 |
Solar controller |
1 |
Colar box |
15*10*3 |
0.3 |
Batteries |
2 |
carton & poly |
39*21*25 |
22 |
Batteries box |
1 |
carton |
45*28*28 |
8 |
wire |
1 |
carton |
50*50*80 |
10 |
|
Δ NOTICE: The specicification can be changed and designned according to customers requirements. Example,
Example:
1. Pole height and color;
2. LED light power and brightness
3. Solar panel dimension
4. Battery capacity and installing location |
