CE 60W Street Light Solar LED Street Light

CE 60W Street Light Solar LED Street Light
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 5/Set
Pay Type: L/C,T/T,Western Union

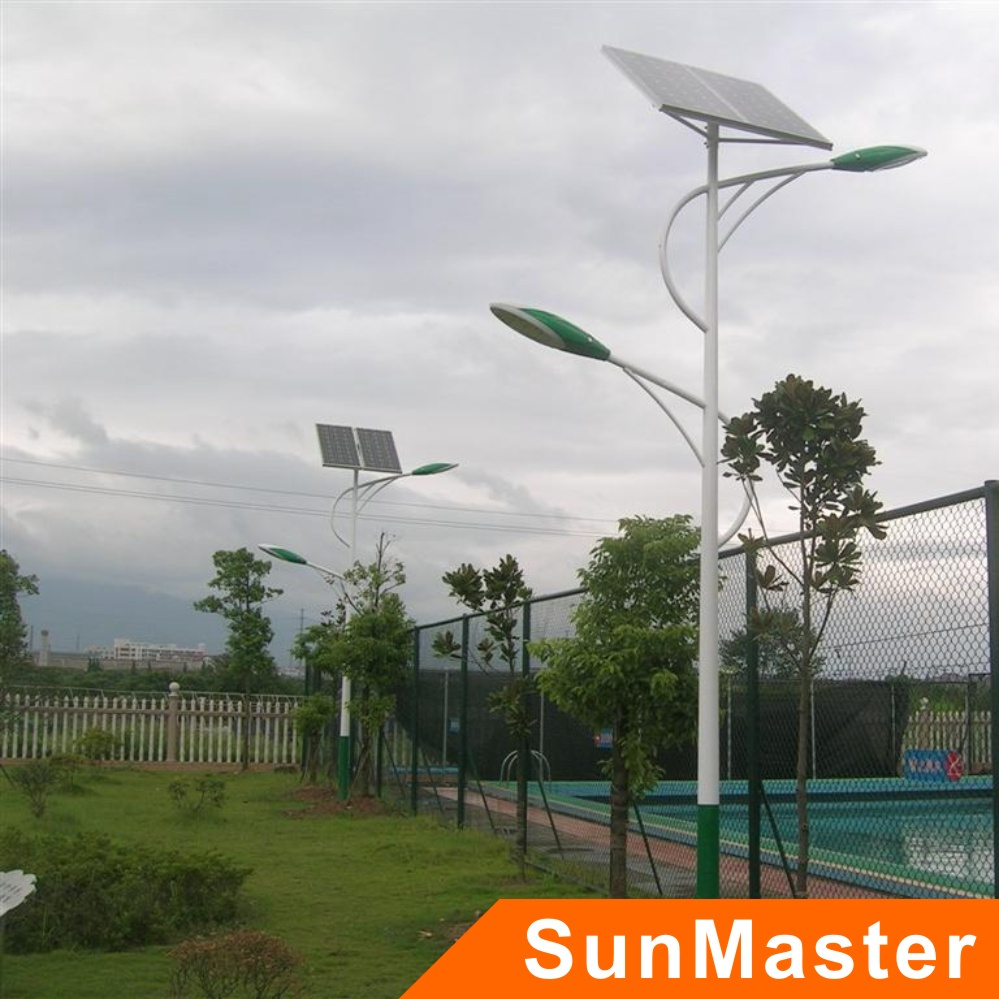

Solar LED Street Light(60W)
1. Light source: High frequency electrode bulbs, low voltage sodium, LED etc.
2. Solar panel: 60wp, 85wp, 100wp, 120wp, 160wp, 175wp, 220wp etc.
3. Lamp pole: Nice shape lamp with spray-paint after hot galvanization, designned in 4m to 13m according to customers' requests.
4. Working time: 6-12hours per day and continue working 2-5days according to customers requests.
5. Suitable installation: Uptown road, courtyard, park, tourscenery.
Δ ADVANTAGE:
      1. USACree/Bridgelux Q5 LED, multi-functional
    2. Environment protection, Energy saving
    3. Easy installation, Long life span
    4. Free of maintenance
    5. Low voltage, safe and reliable
    6. Independence operation system
    7. Applications: Street, Garden, Public square, Park

Δ MATERAILS:
    1. Lamp Body:
          high pressure die-cast aluminum, corrosion resistant house, high in strength and compact in structure;
          The surface is static spray-paint, high temperature and weather resistant frame tenure, colorful;
    2. Pole Material: SS400 steel, pot galvanizing, plastic spray treatment.

Δ Working time: 10hr/d, 6H full-energy mode + 4H energy-saving mode, 3 continued overcast & raining days.

Δ LED LIGHT SPECIFICATIONS
Model No. SLD05-60W(30W*2pcs)
Lamp power 80W(30W*2pcs)
LED quantity 30pcs*1W*2set
Voltage (V) DC12V
Luminous Efficiency 80~90 LM/W
Color temp. (K) 5500~6500
Ilumination (LUX) 35LUX   8m
Beam angle 135°
Working temp. (º C) -15~+55
IP grade IP65
Size (cm) 63.5*27*19.5*2pcs
Weight (KG) 7.5*2pcs

Δ SOLAR PANEL SPECIFICATIONS
Pmax(W) 120W
Vmp(v) 35V
Cell Mono/Poly

Δ SOLAR CONTROLLER 10A/24V SPECIFICATIONS
ITEM NO. 12V / 10A
Perfect protect function:
  1. Battery reverse connection protection
  2. Solar panel reverse polarity connection protection
  3. Over load and short circuit protection
  4. Back flow from battery to solar module protection
  5. Battery open circuit protection
  6. Lighting surge protection(in case necessary)
  7. Over-charging and over-discharging protection
  8. LED display
  9. Thunder strike protection;
  10. Time control and light control.

Δ Battery 12V90Ah*2pcs Maintenance-free Lead-acid SPECIFICATIONS

Δ Battery  Box Location Optional
    1: underground
    2: on top of the pole
    3: at root of pole(have A and B design as following)

Δ Packing Information
Parts Qty Pack mode Size(cm) Weight(kg) 40 HQ Container (sets)
Pole 1 Poly 600*40*40 260 90
LED Lamp 2 carton & poly 73*37*30 10
Solar panel 1 carton & poly 130*90*14 15
Solar controller 1 Colar box 15*10*3 0.3
Batteries 2 carton & poly 39*21*25 22
Batteries box 1 carton 45*28*28 8
wire 1 carton 50*50*80 10

Δ NOTICE: The specicification can be changed and designned according to customers requirements. Example,
Example:
                                1. Pole height and color;
                                2. LED light power and brightness
                                3. Solar panel dimension
                                4. Battery capacity and installing location
Prod Model: STL05-30W*2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Luminous Efficiency: >85lm/W
Power Efficiency: 88%
Panel Power: 120W
IP Grade: IP 65
Lighting Bulbs & Tube: Energy Saving
Life Span: 60, 000h
Lampshade Material: Toughened Glass
Color Temperature: Pure White 5000-6500k/Warm White 2700-3500k
Charging Time (',H): 8
Usage: Street
IP Rating: IP65
Voltage: 12/24V
Certification: RoHS
Light Source: LED Lamp
Cell Type: Gel Battery
