LED Street Light, LED Street Lighting, LED Street Lamp, LED Road Light, Solar LED Street Light
Features
1. Top light source-LED from BRIDGELUX/CREE
2. Patented packaging technology
3. Energy saving, environmentally friendly, long lifespan
4. Radiator made of Aluminium alloy which has the best heat conductivity
5. Applied with patented quadric optics non-imaging lens, luminaire efficiency over 90%
6. Powered at AC board voltage input with constant current drive
7. The lamp has been designed a respiratory system to ensure the dust resistance, water resistance and self cleaning ability
8. Aesthetic style
9. National-wide various invention patents
Application
1. Highway
2. Roadway
3. Street
Power supply
1. Input voltage AC 100~277V, 50~60Hz
2. Output voltage DC 53V
Installation
1. Fixed with pole

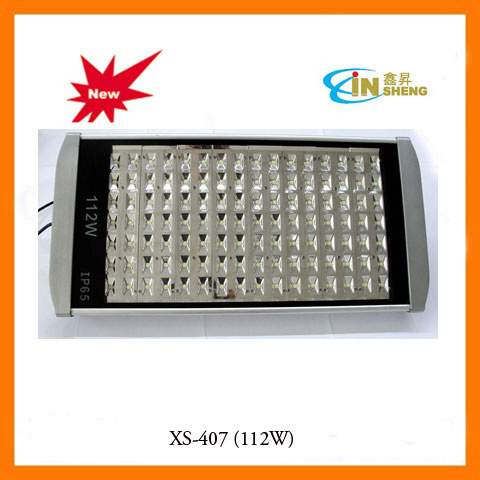

Zhongshan Xinsheng technical lighting LED Street lamp XS-407 adopt special coniform optical lens which cast the rays of every LED onto a rectangular area. The LED Lights and LED Street Lighting Lens was designed and calculated by professional software Rhino and imitation by Lighting curve and effects software, Adopting internationally top Non-image Optics system design concepts, the lens can focus all the light into the area you want to illuminate.
LED Street lamp's top light source-LED from Bridgelux/CREE and Warrantee are 2 years.
Input Voltage (VAC) |
AC 100~277V |
Frequency Range (HZ) |
50~60Hz |
Power Factor (PF) |
> 0.95 |
Total Harmonic Distortion |
< 15% |
Power Efficiency |
90% |
Working Voltage (VDC) |
DC 53V |
LED Consumption (W) |
123 W |
LED Luminous Efficiency |
> 100 lumens/w |
LED Initial Flux (LM) |
> 1120 Lumens |
Lamp’ s Effciency (%) |
> 90% |
Color Temperature |
5000~5500K |
Color Rendering Index (CRI) |
Ra> 90 |
Light Distribution Curve/Beam Pattern |
Asymmetric(Bat Wing)/Rectangular Beam |
Junction Temperature (Tj) |
< 75° |
Working Enviornment |
Temperature: -35° ~65° |
Humidity: 10%~95% |
IP Rating |
IP65 |
Working Life |
> 50000 hours |
Light Body & Lampshade Material |
Aluminum Alloy |
Net Weight/Gross Weight(Kgs) |
11 kgs / 11.3 kgs |
Packaging Size (mm) |
Net 630(L)× 310(W)× 150(H) |
Gross660(L)× 350(W)× 210(H) |
Certification |
CE |
LED Chip |
BRIDGELUX/CREE |
Warrantee |
2years |
Zhong shan xin sheng technical lighting Co., Ltd is located in gu zhen, zhong shan city, which is known as "lighting capital of China".It is a professional outdoor lighting company and integrates research and development, manufacture, installment and maintenance as a whole.
The products of our company mainly are solar street lights, solar garden lights, solar wall lights, column headlights, LED underground lights, LED underwater lamps, LED lamp cups, LED display, logo lights, emulational plant lights and other series.Our products are widely used in various squares, roads, bridges, urban landscape, scenic spots, gardens, luxury villas and other places.Since it is founded, our company has always been adhering to the purpose "quality career, customers first", insisting in the market-oriented, bringing in advanced technology and equipment constantly, and developing, designing, and producing series of new products which are fashionable, of exquisite craftsmanship, long life, safe, energy saving and easy to install.Especially our development and utilization of renewable energy, such as solar energy, wind energy and so on and new LED products, makes our outlook broader.With the constant introduction of new products, our products has been widely used in various key projects of urban construction and exported to Europe, America, southeast Asia and other parts of the world.
