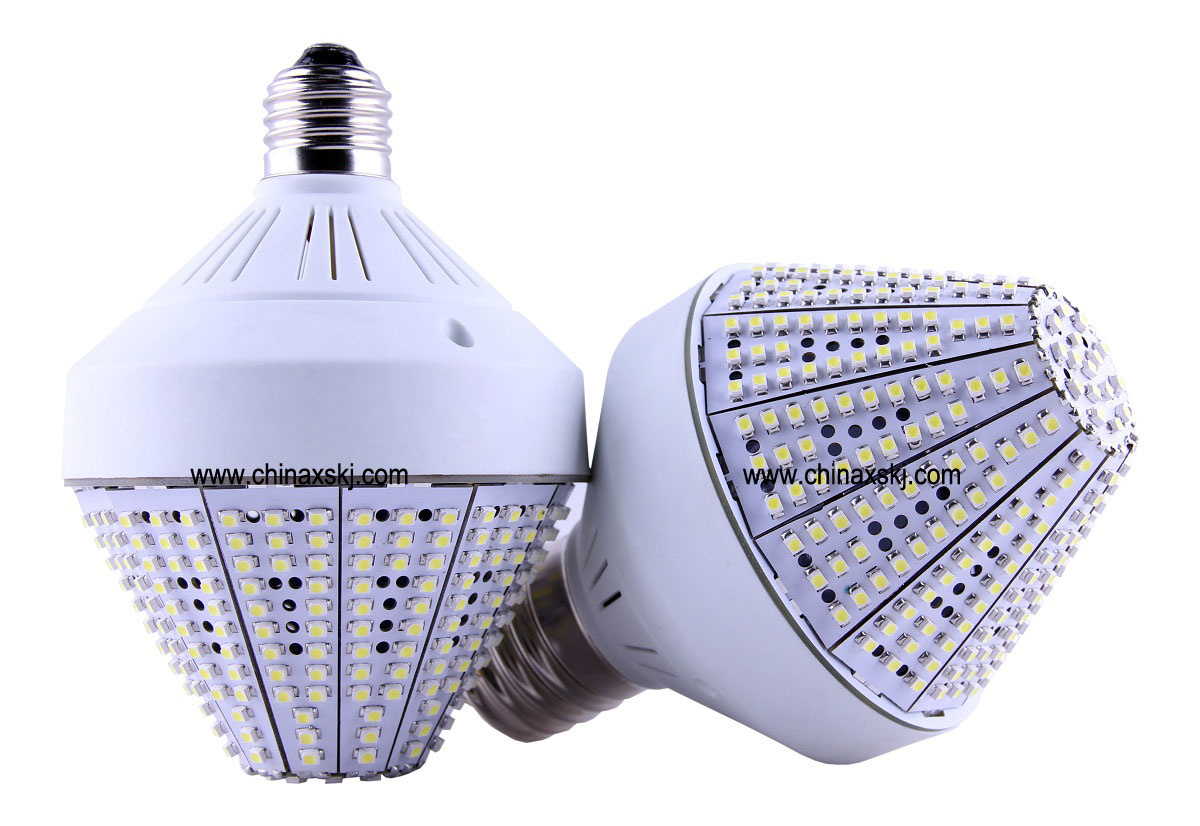

1) Light Source: 590PCS F5 LEDs
2) Luminous Flux: 3600LM± 10%
3) Epistar LED Chip(90~100Lm/W)
4) Rated Wattage: 38W± 10%
5) Base: E40 E39 E27 E26
6) Rated Voltage: 85~265VAC, 50/60Hz
7) Color Temperature: WW(2700~3800K), NW(4000-5000K) or CW(5500-6700K)
8) Beam Angle: 360 °
9) Lifetime: 50, 000Hours
10) Size: Dia128*215mm
11) Net weight: 0.44KG /PCS
12) CE. RoHS approved
13) Body Temperature: < 70°
14)24VDC for solar power system is available
15) Recommended replaced panel light: 105W CFL
|
Product Name |
XS-20W12S-304S3 |
XS-35W-590F5 |
XS-35W12S-590S3 |
|
Wattage |
SMD 20W |
35W |
SMD 35W |
|
Beam Angle |
360° |
|
Light Source/Count |
304pcs 3528 SMD LED |
590pcs straw hat LEDs |
590PCS SMD |
|
Lamp Base |
E40 E39 E27 E26 |
E40E39 |
E40 E39 E27 E26 |
|
Power consumption |
22W +10% |
38W ± 10% |
|
Luminous flux |
2000lm +10% |
3600lm ± 10% |
|
Color Temperature Standard |
Cool white: 5500~6700K |
Cool white: 5500-6700K |
|
Natural white: 4000~5000K |
Natural white: 4000-5000K |
|
Warm white: 2700~3500K |
Warm white: 2700~3800K |
|
Input voltage |
85-265VAC, 277VAC |
85~265VAC, 50/60Hz |
|
LED Emitter Life |
50, 000hours |
|
Replacement |
CFL 60W |
CFL 105W |
CFL 105W |
|
Application |
Indoor using, such as warehouse, lobby, office, supermarket, garden, etc... |
|
Size |
Dia 105mm * 160mm |
Dia 128mm * 215mm |
Dia128*205mm |
|
Operating temperature |
(-40 to 45 degree) |
Zhong shan xin sheng technical lighting Co., Ltd is located in gu zhen, zhong shan city, which is known as "lighting capital of China".It is a professional outdoor lighting company and integrates research and development, manufacture, installment and maintenance as a whole.
The products of our company mainly are solar street lights, solar garden lights, solar wall lights, column headlights, LED underground lights, LED underwater lamps, LED lamp cups, LED display, logo lights, emulational plant lights and other series.Our products are widely used in various squares, roads, bridges, urban landscape, scenic spots, gardens, luxury villas and other places.Since it is founded, our company has always been adhering to the purpose "quality career, customers first", insisting in the market-oriented, bringing in advanced technology and equipment constantly, and developing, designing, and producing series of new products which are fashionable, of exquisite craftsmanship, long life, safe, energy saving and easy to install.Especially our development and utilization of renewable energy, such as solar energy, wind energy and so on and new LED products, makes our outlook broader.With the constant introduction of new products, our products has been widely used in various key projects of urban construction and exported to Europe, America, southeast Asia and other parts of the world.
