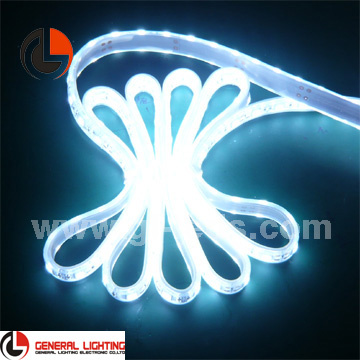

Waterproof LED strip lights with SMD Light
5060 High Output Light Strip
GL-FB/DFB series
Products GL-DFB series of light stripes is to satisfy customers seeking a high brightness of the lighting and brilliant colors effects, the product characterized by the use of a three-chip TOP 5060 SMD LED as a light source, there are bright, colorful, brightness uniform characteristics, for home decoration, hotels, an ideal light source cabinet lighting options.
Features of Waterproof LED strip lights:
1. Used 5050 TOP SMD RGB or signal color with three chip in one LED as lighting resources.
2.150 PCS LED(GL-FB-*)/300 PCS LED (GL-DFB-*) LED/5M.
3. Size: 5000X10MM(GL-FB-*)/5000X12MM(GL-DFB-*).
4. Available RGB/Red/Green/Blue/Yellow/Pure White/Warm White;
5. Input Voltage DC 12V or 24V;
6. Max power: 36W(GL-FB-*)/72W(GL-DFB-*).
7. Flexible LED can be cut by 3 LED (DC 12V) and 6LED (DC 24V) and connect again by our accessories;
8. With 3M adhersive tape back, easy for installation.
9. Can be change into waterproof with type A and type B
10. Can be chosen copper PCB or white PCB.
Application of SMD LED strip:
1. Cover lighting
2. Architectural light for canopy, corridor, window, archway
3. Backlight for edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show exhibition
Other:
General Lighting Electronic Co., Ltd. All rights reserved. No part of this photo may be reproduced, in any form or by any means, without permission in writing from General Lighting Electronic Co. Ltd.
|
Item |
Specification |
|
Product name |
RGB LED neon flex tube |
|
Product Series |
Standard Neon Flexible Tube Series |
|
Model |
GL-FB-5050 |
|
Voltage |
110V / 220V AC / 12V DC / 24V DC |
|
LED Qty / m |
80pcs led lamp |
|
Cutting min length |
0.5m |
|
Power |
3.8W/m-8.4W/M |
|
Dimension |
Width :12mm
Thickness :27mm
Length: 5m(per roll) |
|
Beam angle |
120 ° |
|
Color range |
PW/WW/Y/R/G/B |
|
Life Span |
>50000hrs |
|
Work temperature |
-20 -+50 degree |
|
Fixture Material |
PVC |
|
PCB color |
White |
|
Protection Rate |
IP67 / IP68 |
|
Certification |
CE ,ROHS |
|
Luminous flux |
White 520lm/m
Blue:200lm/m
Green:320lm/m
Warm white:480lm/m
Orange, Yellow, Red, Pink :160lm/m |
|
Color Temperature |
2000k-7000K |
|
Color Render Index |
>80Ra |
|
Power factor |
0.85-0.99 |
|
Lumens Decline |
5% per 1000hrs . |
|
Warranty |
3 year |
Feature
|
· Long life 30000-50000hrs
· Economical
· Easily and fastly install or replace traditional lamp
· Good color and luster
· Power saving and low cost
· Applicability
· Environment friendly, waterproof, UV resistant
· Flexible
. High brightness & Cold Solid State Lighting LED
. Adopting high quality SMD LED as light source, at present Red/Green/Blue/Yellow/White/RGB are available |
|
Application |
· Border or perimeter lighting
· Architectural decorative lighting
· Concealed lighting
· Cove and Under cabinet lighting
· Art lighting
· Indoor or Outdoor decorative lighting
. Emergency hallway lighting
. Emergency exit path lighting |
