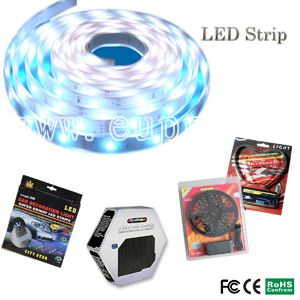

LED Strip Light/LED Flexible Strip(SMD5050-30-W-12V)
A, Competitive advantageLED Strip Light/LED Strip Light
1) Warranty: 2 year
2) CE, RoHS, FCC Certificate
3) Very flexible, easy to install
4) 12V voltage, very safe
5) Long life span, more than 5 0000hours.
B. Features of LED Strip/LED Strip Light:
1.100CM 30LEDs FPC5050 Flexible LED Strip Light.
2. Power consumption: 7.2W
3.5meter per reel.
4. Completely transparent Epoxy Resin material.
5.3M self-adhesive or matched mounting clip for easy stallation. Fantastic changing color.
6.120 degree Beam Angle.
7. Drive by 12V
8. Waterproof Rate IP65
C. Advantage of LED Strip/LED Strip Light:
1. Long Lifetime
2. Environmental Protection
3. Low Power Consumption
4. Low Heat Emission
5. Low Cost.
6. Different Colors
D. Application of LED Strip/LED Strip Light:
The product use for indoor lighting, shopping mall, super, market, showroom, club, store, hotel, restaurant, school, library, art gallery, museum, office building, home decoration. Replacement bulbs for general lighting, especially for museums, art galleries, cosmetic counters where UV or IR radiation is undesirable.
|
Parameter |
Symbol |
Absoute maximum rating |
Unit |
|
Forward current |
IF |
600 |
Am |
|
Power dissipation/m |
PD |
14.4 |
W |
|
Elestrostatic discharge |
ESD |
800 |
V |
|
Operating temperature |
Topr |
from-20 to 60 |
CD. |
|
Storage temperature |
Tstg |
from-40to 80 |
CD. |
|
Item No. |
Color |
Led
Qty |
IP
Rate |
Wave Length |
Led Work
Current/m |
Luminous |
Luminous
Flux/m |
|
Intensity |
|
(MCD/LED) |
|
5050/30-R-DC12V |
Red |
30 |
IP65 |
625-630nm |
510-570mA |
800-1200 |
90-100Lm |
|
5050/30-Y-DC12V |
Yellow |
30 |
IP65 |
590-595nm |
510-570mA |
800-1200 |
90-100Lm |
|
5050/30-B-DC12V |
Blue |
30 |
IP65 |
465-470nm |
510-570mA |
800-1200 |
90-100Lm |
|
5050/30-G-DC12V |
Green |
30 |
IP65 |
515-520nm |
510-570mA |
1600-2600 |
200-270Lm |
|
5050/30-CW-DC12V |
Cool
White |
30 |
IP65 |
6000-6500k |
510-570mA |
4000-4500 |
300-360Lm |
|
5050/30-WW-DC12V |
Warm
White |
30 |
IP65 |
2700-4500k |
510-570mA |
4000-4500 |
300-360Lm |
|
5050/30-RGB-DC12V |
RGB |
30 |
IP65 |
|
510-570mA |
|
126-156Lm |
