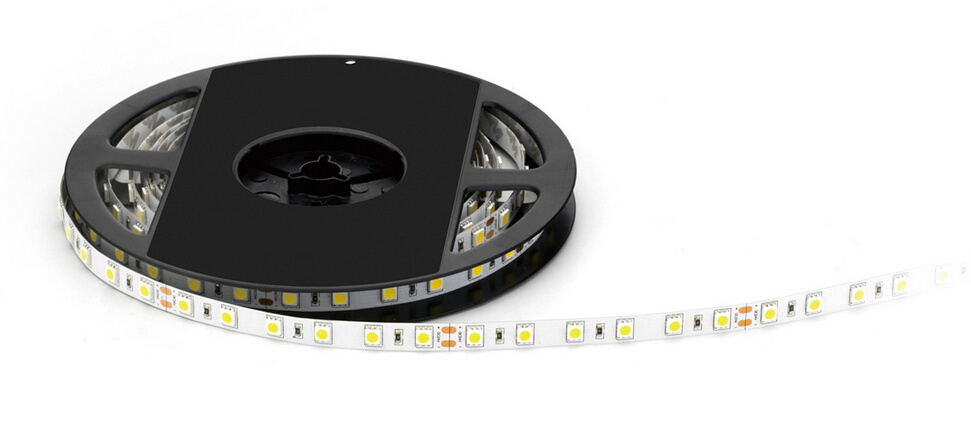

D560 HC-5050X30R-W12/24 (X:R/G/B/Y/W/WW/RGB)
Features
Volt: DC12/24V
Watt: 14.4W
Led Qty: 60 Led/M
Size: 5000*10MM
CRI: >80
Waterproof Grade: IP33/55/65/67
3M Adhesive Tape attached
5M/rell for standard length
Warrenty: 2 Years
CE&ROHS&ETL
some details:
Chip: Epistar
Chip size: 10*16 MIL
SMD glue: Dow Corning
SMD Fluorescent Powed: Intematix
SMD Gold Thread: Heraeus
PCB:double side FPC 0.25mm thickness,2.0 OZ copper,
large sheet section in copper.
Reasonable Circuit design
rolled anneal copper inside
Applications:
.Decorative,architectural and accent lighting
.Landscape, aquarium and garden lighting
.Illuminating art and wine cellars: zero UV emissons!
.Kitchen,bathroom,and under-cabinet lighting
.Style lighting for limousines.caravans and cars
.Yachts and cruise ships
| Type | Description |
| color | luminance | volt | watt | size |
| HC-5050R30R-W24 | red | 530-680mcd | DC24V | 14.4W | 5000*10MM |
| HC-5050Y30R-W24 | yellow | 420-540mcd |
| HC-5050B30R-W24 | blue | 600-1000mcd |
| HC-5050G30R-W24 | green | 4300-5500mcd |
| HC-5050W30R-W24 | white | 16-18LM |
| HC-5050DW30R-W24 | Nature white |
| HC-5050WW30R-W24 | Warm white |
| HC-5050RGB30R-W24 | RGB | 500/950/220mcd | DC24V | 14.4W | 5000*10MM |
