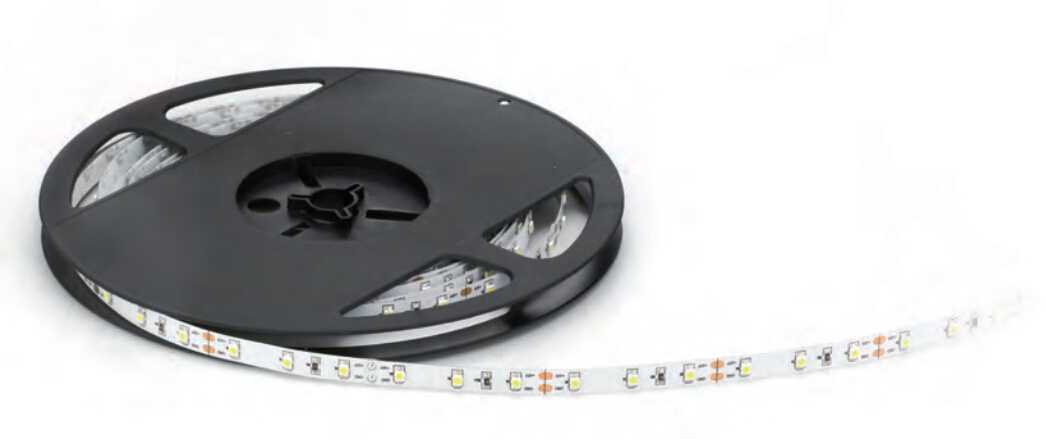

D360 HC-3528X30R-W12/24 (X:R/G/B/Y/W/WW)
Volt: DC12/24V
Watt: 4.8W
Led Qty: 60 Led/M
Size: 5000*8MM
CRI: >80
Every 3/6 LEDs can be cut
Waterproof Grade: IP33/55/65/67
3M Adhesive Tape attached
5M/rell ofr standard length
Warrenty: 2 Years
CE&ROHS&ETL
some details:
Chip: Epistar
Chip size: 10*16 MIL
SMD glue: Dow Corning
SMD Fluorescent Powed: Intematix
SMD Gold Thread: Heraeus
PCB:double side FPC 0.25mm thickness,2.0 OZ copper,
large sheet section in copper.
Reasonable Circuit design
rolled anneal copper inside
| Type | Description |
| color | luminance | volt | watt | size |
| HC-3528R30R-W12 | red | 160-280mcd | DC12V | 4.8W | 5000*8MM |
| HC-3528Y30R-W12 | yellow | 160-310mcd |
| HC-3528B30R-W12 | blue | 250-300mcd |
| HC-3528G30R-W12 | green | 1000-1600mcd |
| HC-3528W30R-W12 | white | 6-7LM |
| HC-3528DW30R-W12 | Nature white |
| HC-3528WW30R-W12 | Warm white |
Huacai (Yangzhou) Opto-electronics Co., Ltd, with rich experience of over four years in lighting R&D and occupying a modernized plant area of almost five thousand square meters, is a professional manufacturer based on LED lighting source and specializing in LED lighting application. Our company incorporates four brand in Beijing, Shanghai, Guangzhou and Jiangsu around Mainland China. Located quite near from Bao'an Airport, our company enjoys the superior geographical and convenient transportation. There is six modern atomized production line LED SMD encapsulation line, six high-speed SMD encapsulate machine, two eight bins Reflow Machine, fully atomized Epoxy machine, Generator, over eighty large equipments, seventy percent of which are imported form Japan. The chips we used are mainly imported form Taiwan, International brands like CREE, OSRAM, NICHIA, EDISON are also available for high-end users. Following the operation philosophy that customer's need, Colors's pursuit'', advanced testing measurement and impeccable managing system are taken into application, so we can make sure of the quality of our products, all of which are exported globally. Currently our annual production value can be reached 30 million USD, The main products are: SMD LED Flexible Strip Light, SMD LED Rigid Light Bar, LED T5&T8 Tubes, and they have been awarded the CE & RoHS certification.
