Product features:
1) Low energy consuption, long lifespan, less maintence performance
2) No color difference, concentrating well, good viewing angle
3) Better waterproof, better radiation, better dust proof, good quality modules,under the same conditions ,using two more years than SMD
4) High brightness, high refresh, the biggest advantage of a comprehensive reflection of outdoor HD LED display
5) Simply installation, easy to maintain, easy to use
Product Description
P8 Outdoor Full Color Module Technical Parameters
|
Items | Parameter |
|
| Product Model | P8 Full Color Led Module |
|
| Module size | 256mm*128mm |
|
| Pixel pitch | 8mm |
|
| Pixel density | 15625dots/m2 |
|
| Pixel configuration | RGB 3 in 1 |
|
| Module resolution | 32dots(W)*16dots(H) |
|
| Module maximum power consumption | 25W |
|
| Module Thickness | 2.8CM |
|
| Module Weight | 0.6kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/4 scan |
|
| Interface | HUB75B |
|
| Brightness | ≥7500cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 768mm x 768mm |
|
| Module quantity | 18pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 96*96dots |
|
| Optimal viewing distance | 8M ~ 80M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20 °C~ +50 °C ) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 300W/H |
|
| Maximum power consumption | ≤600W/square meter |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900
|
Application:

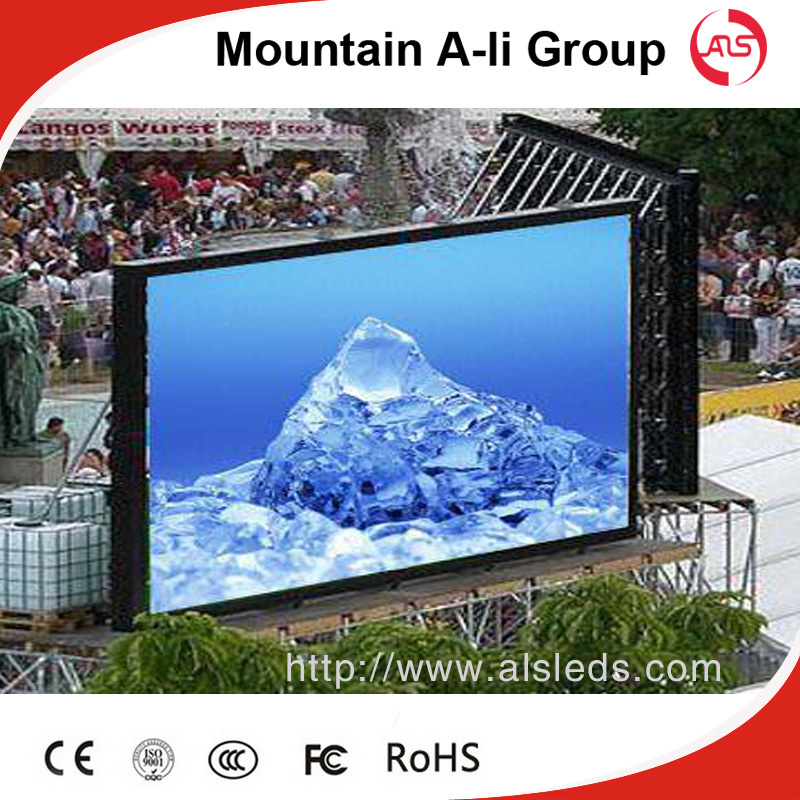

1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3) The stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
