Product features:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness
decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has
good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color
solve the problem of mosaic well
5.Price
No. 1 cost effective. The price is very good, please contact us for an
offer. You can compare and know!
Product Description
P6 Outdoor Full Color Module Technical Parameters
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P6 Outdoor Full Color Led Module |
| Module size | 192mm*96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B3in1 |
| Module resolution | 32dots(W)*16dots(H) |
| Module maximum power consumption | 20W |
| Module Thickness | 2.7CM |
| Module Weight | 0.4kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/8scan |
| Interface | HUB75B |
| Brightness | ≥7000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 768mm*768mm |
| Module quantity | 32pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 6M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤600W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |

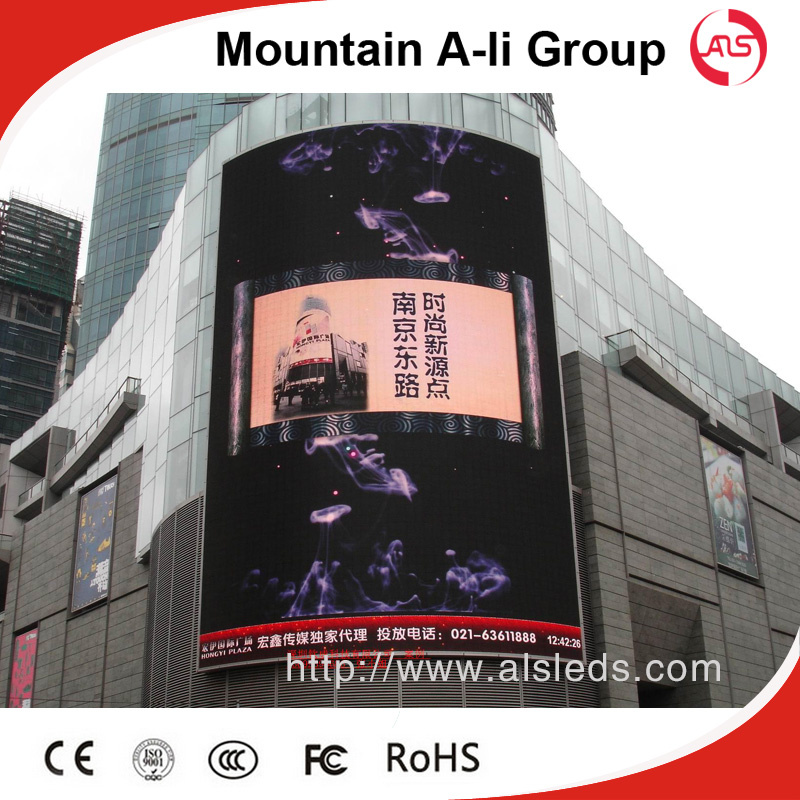

Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3) The stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
