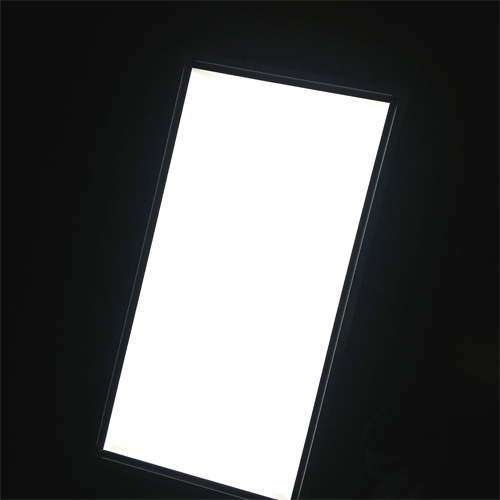

LGAC4 is scattering light guide panel made of high quality virgin acrylic, designed specially for LED panel light. It combines properties of high light efficiency, freewill processing, convenient application, as well as long life expectancy. It provides an economic and easy solution for preparing LED panel light, especially for LED decorative lighting.
Technical and performance information
Raw material: Nanometer scattering light guiding acrylic sheet based on high quality raw material
Maxim lighting width: 800mm, availability of large area LED panel light, good uniformity and stability
Advantages: No demanding of laser engraving and screen printing, freewill processing, easy solution for LED edge light panel and signage
Thickness tolerance: 0.2mm
Original size: 1250X1850mm, 1250X2450mm, 1550X3050mm, 2050X3050mm.
Application: LED edge light panel, signage, decorative lighting.
Thickness and recommended lighting width
| Thickness (mm) | Lighting width (mm) |
| 2~3 | 0~400 |
| 4~5 | 300~600 |
| 6 | 600~800 |
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.
With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.
Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.
From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.
Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.
We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
