Home LED Light Products Artistic Design Digital LED Panel Light for Ceiling Lighting

Artistic Design Digital LED Panel Light for Ceiling Lighting

Artistic Design Digital LED Panel Light for Ceiling Lighting
Price: US $ 60-75/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union

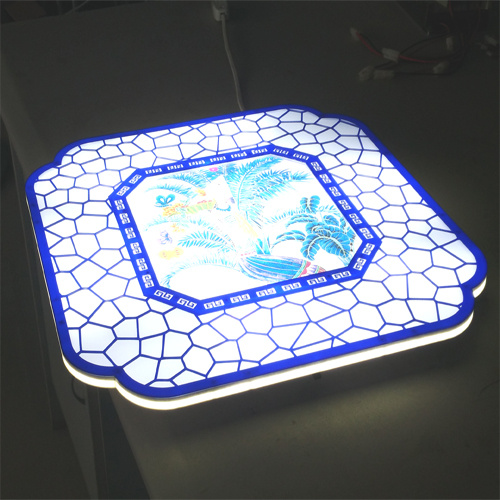

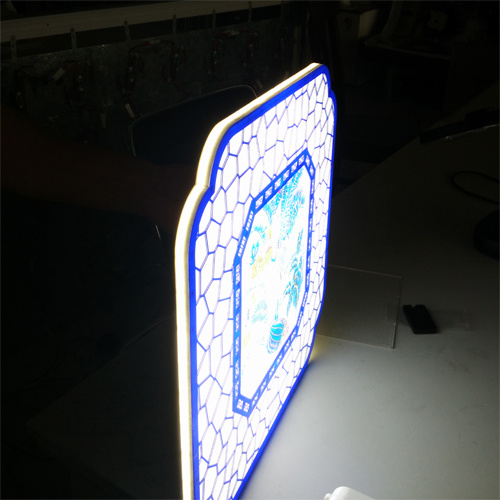

Digital artistic LED panel light(APL1) is fabricated of edge lit light guide panel and high luminance LED modules with artistically designing. By applying Single Chip Microcomputer controlling and shunted current constant driving, it is high reliable, energy saving, low cost design in freewill size and style.

Advantageous performance
- Based on digital shunting current constant driving, high reliability, and long life expectancy guarantee of 100000 hrs.
- Endless design in freewill size and style.
- Tunable luminance, color temperature, and lighting area.
- Wireless controlling available.
- Special performance available by SCM programming.


Technical information
Light source  SMD 2835CRI>80%
Input voltageAC 100V~240VColor temperature2500~8300K
Power factor>0.6Life expectancy100000 hrs
Light efficiency60~100lm/W














Prod Model: APL-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Energy Saving Level: European a++
Lifte Span: 100000 Hrs
Power Factor: >0.6
Driving Style: Digital Constant Current
CRI: >80%
Light Source: LED
Housing Material: Acrylic
Emitting Color: White
Dimmable: With Dimmable
Appearance: Square
Type: Ceiling
Base Material: Metal
Certification: RoHS
Voltage: 100-240V
Beam Angle: 120
Nanjing Jayan Materials Technology Co., Ltd., established on April 2011, is a technology company located in Nanjing City, Jiangsu Province, China.

With our professional background and knowledge on polymer chemistry and processing, polymer optics, as well as LED electronics, we have been engaged on business fields including acrylic sheets and polystyrene sheets, light guide and light diffuser, LED light and luminaries, and plastic processing machinery.

Up to now, we have annual production capabilities of 3500 tons cast acrylic sheets, 3000 tons extruded acrylic sheets and 3000 tons extruded polystyrene sheets. Based on the production capability, we provide light guide panel and light diffusion panel both of acrylic and polystyrene for various application. With leading technology in polymer chemistry and polymer optics, we design and offer various polymer products for LED light according to customized requirements.

From May 2014, we have started business of LED light and luminaries based on the innovative technology named "Digital independent current constant driving". A Single Chip Microcomputer (SCM) is applied to manage each LED working independently, which makes LEDs much more stable and energy saving than conventional LED lighting. A series of special LED lights have been developed successfully upon this novel technology, including LED backlights, LED panel light, and LED ceiling lamp.

Having accumulated abundant experience of polymer processing, we also provide plastic processing machinery in laboratory size by OEM.

We are keeping endeavor on research and development, and aspiring to be a leading technology company in fields of performance polymers and LED lights.
