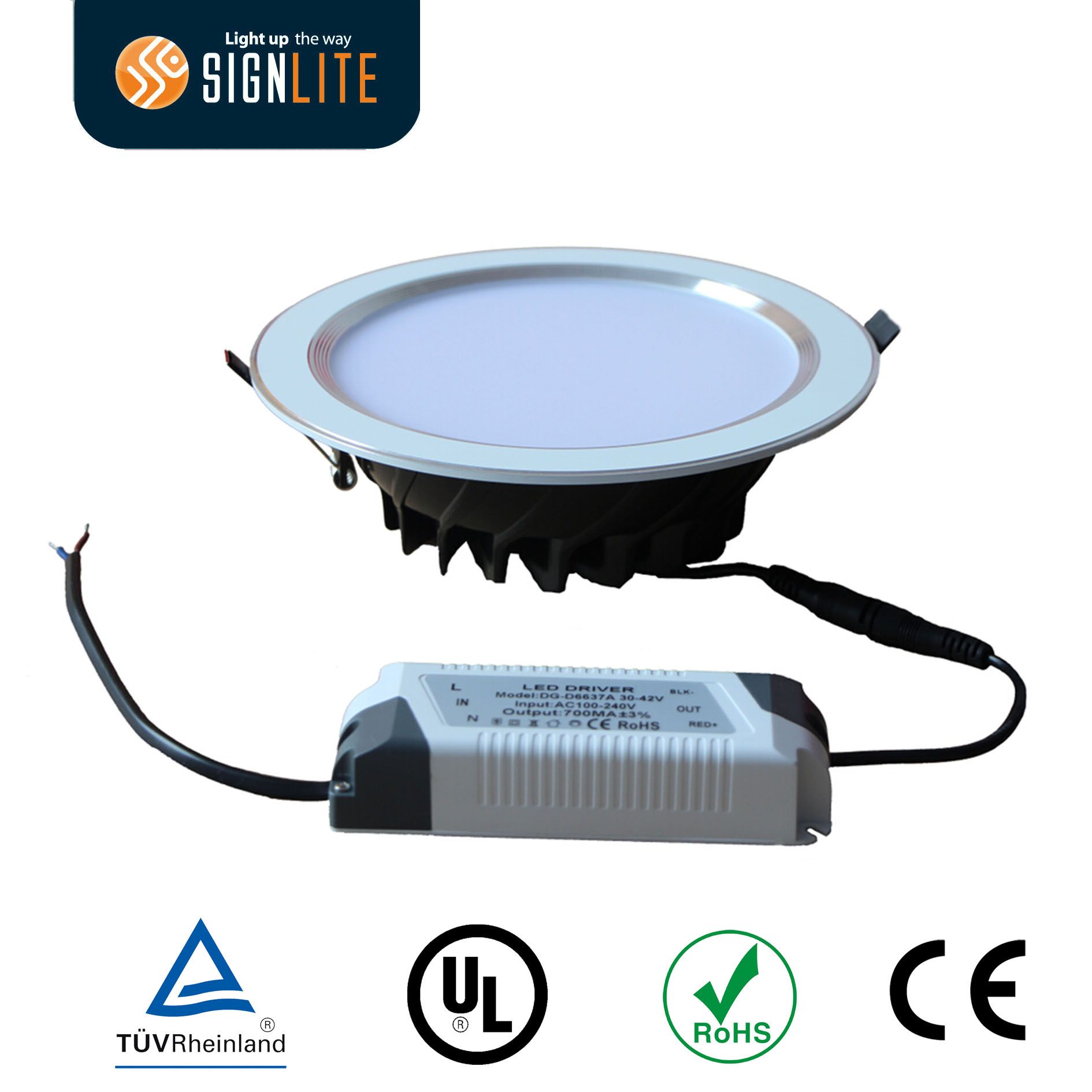

Product Description 8INCH downlight
-Features
1. Beautiful and clean appearance,easy installation
2. High light and high luminous efficiency Samsung G2 SMD5630 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas,environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 50,000 hours
Specification
Power consumption: 3watt 5watt 9watt 12watt 20watt 30watt
Input voltage: AC85-265V
Working frequency:50-60HZ
Size: D230*60mm
Cutout: D230mm
Package: 26.2*23.5*7.8 cm,20pcs/carton 23.66KG
LED type: Samsung G2 SMD5630
LED qty. 900pcs
IP grade IP44
Luminous 2600-2700lm
Luminous efficiency 90-95lm/w
Beam angle 120°
Color temperature Warm White:3000-3500K Nature White:4000-4500K White:6000-6500K
CRI Ra>80
Power factor >0.9
Working temperature -20 ~ +60centigrade
Operating lifespan >50,000hrs
Warranty 5years
>>Parameter
DL8N30 | 8 inch back lighting Downlight,height 6cm,
surface diameter 23.0cm,cut hole diameter 20.2cm-8 inch, with 96 pcs Samsung G2 SMD5630 LED,output 2600~2700 lumen,
RA 90,availabe color warm white 2800~3200K,
Commercial white 4000~4500K,White 6000~6500K,90 lumen/watt | Weight:
0.92 Kg/downlight;
1.11Kg/(downlight+inner box);
20 pcs downlight+inner box per carton;
20 pcs total weight : 23.66Kg;
Dimension:
Box size:26.2*23.5*7.8 cm
Carton size:55*49*41cm
|

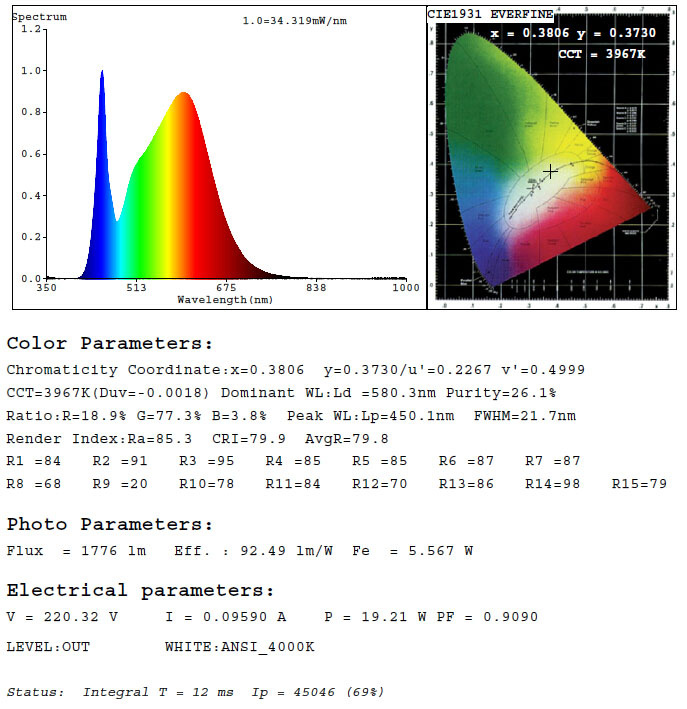

Text report

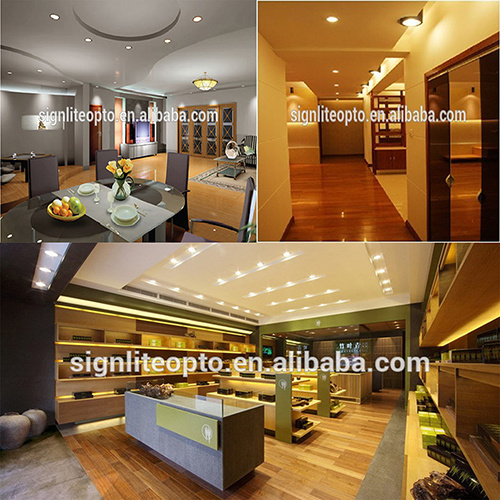

applicationsIt's suitable for hotel, school, hospital, restaurant, residential building, supermarket, stage, advertising decoration, factory, office, commercial complexes, etc.
OTHERS" Specification:
1. Power: 3w 5w 9w 12w 20W 30W Customer design
2. Color temperature: 2700K-6500K;
3. Lead time: 10-20 days
4. Warrenty: 5 years warranty with low price(If the light was damaged naturally, we will be responsible for
Shipping cost and maintenance cost )
Product series
Model | DL2.5W3G | DL3W5G | DL4W9G | DL5W12G | DL6W20G | DL8W30G |
| Power | 3 | 5 | 9 | 12 | 20 | 30 |
| Input | AC85-265V 50/60HZ |
| PF | 0.5-0.7 | 0.9-0.98 |
| LED | SMD2835 |
| LED Quantity | 9 | 15 | 27 | 36 | 60 | 96 |
| CRI | 80-85 |
| CCT | WW2800-3200K,NW4000-4500K,White6000-6500K |
| Lumen | 310 | 530 | 900 | 1250 | 1700 | 2700 |
| Material | AL+PC |
| Size | 2.5inch | 3inch | 4inch | 5inch | 6inch | 8inch |
