Product Description
-Features
1. Beautiful and clean appearance,easy installation
2. High light and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas,environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 30,000 hours
Specification

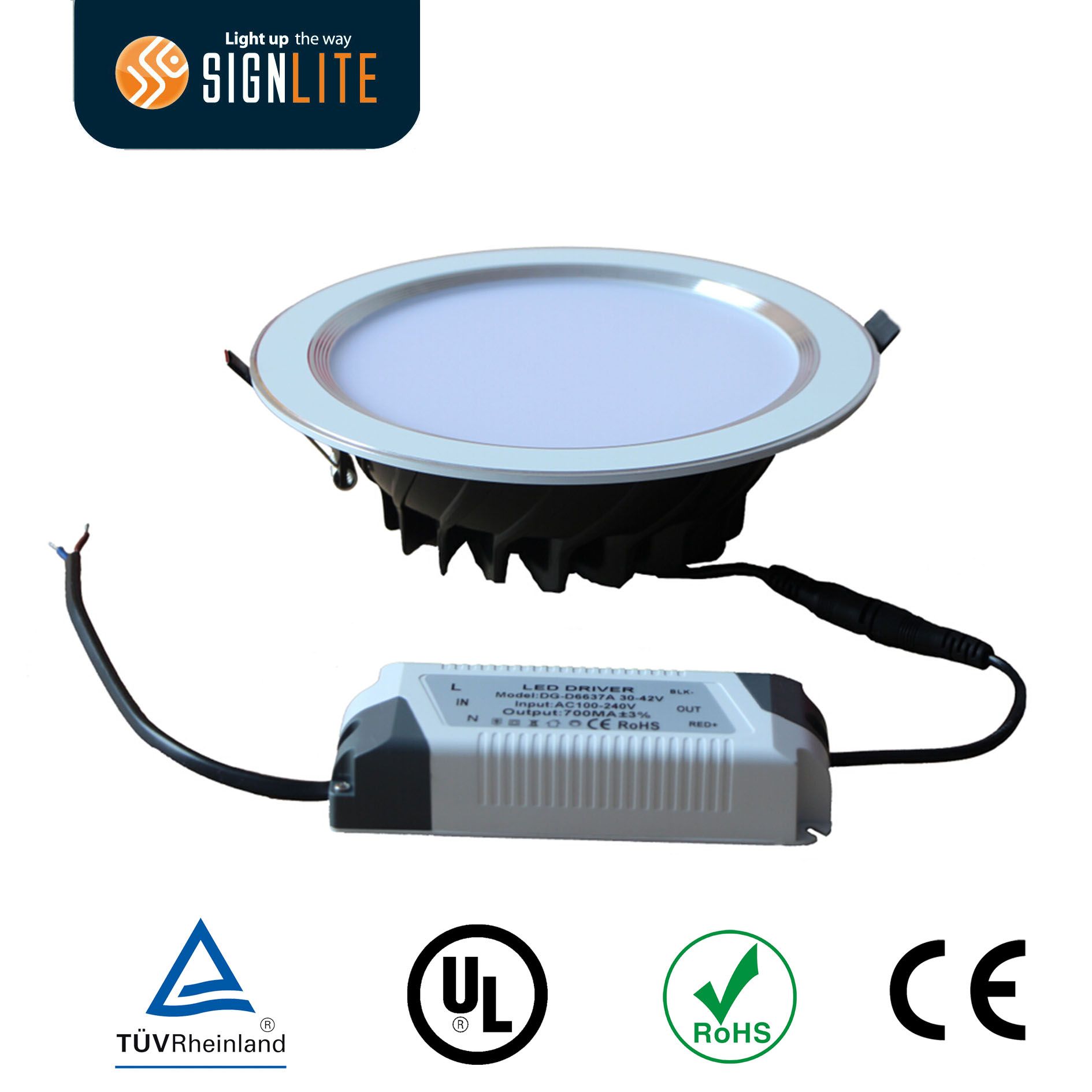

5 inch back lighting Downlight,
height 5.4cm,
surface diameter 18.0cm,
cut hole diameter 13.95cm-5 inch, with 60 pcs SMD2835 LED,
output 1100~1200 lumen,
RA 80~85,
availabe color warm white 2800~3200K,
Commercial white 4000~4500K,
White 6000~6500K.
We produce 2.5 inch to 8 inch downlight.
>>Parameter
DL5N12 | 5 inch back lighting Downlight,height 5.4cm,
surface diameter 18.0cm,cut hole diameter 13.95cm-5 inch, with 60 pcs SMD2835 LED,output 1100~1200 lumen,
RA 80~85,availabe color warm white 2800~3200K,
Commercial white 4000~4500K,White 6000~6500K,85 lumen/watt | Weight:
0.42 Kg/downlight;
0.54Kg/(downlight+inner box);
20 pcs downlight+inner box per carton;
20 pcs total weight : 11.75Kg;
Dimension:
Box size:21.3*18.5*7 cm
Carton size:45*39*38 cm |
Product series
Model | DL2.5W3 | DL3W5 | DL4W9 | DL5W12 | DL6W20 | DL8W30 |
| Power | 3 | 5 | 9 | 12 | 20 | 30 |
| Input | AC85-265V 50/60HZ |
| PF | 0.5-0.7 | 0.9-0.98 |
| LED | SMD2835 |
| LED Quantity | 15 | 25 | 45 | 60 | 100 | 168 |
| CRI | 80-85 |
| CCT | WW2800-3200K,NW4000-4500K,White6000-6500K |
| Lumen | 225 | 375 | 765 | 1020 | 1700 | 2700 |
| Material | AL+PC |
| Size | 2.5inch | 3inch | 4inch | 5inch | 6inch | 8inch |
Application:
It's suitable for hotel, school, hospital, restaurant, residential building, supermarket, stage, advertising decoration, factory, office, commercial complexes, etc.
