Solar street lamp with LED light
LED solar street light
Solar charge controller /regulater A microprocessor automates the functions of the system automatically activates form sunset to sunrise; Has both time-control and optical-control; Also regulates the battery, preventing overcharging and protecting against discharging.
Solar street light Applications:
-Area Lighting.
-Airport Lighting.
-Hospital Parking.
-Parking Lot lighting.
-HighWay RoadWay Lighting.
-Street lighting.
-Security Light.
-Highway and ramp lighting.
-Bridge lighting, Under Pass lighting.
-Residential, Industrial, Commercial lighting.
1.LED lamp
Working Voltage DC12V/24V,
Luminous Efficiency:100lm/W,
Center illuminance:14lx,Ra>80,
Color temperature:2700-7000,
Protection Grade :IP65
Working life >50000, It can woke more than 10 years in accordance with 12 hours a day.
Lamp shade is Die-casting molded with aluminum alloy,and its face is UV-resistant and corrosion resistant .
No bad glare; No Strobe; Start without delay .Low maintenance cost .
2. BATTERY
Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage life.
High quality alloy plate grid and unique electrolyte formula, Delicate and perfect processing and manufacturing technology,
the battery has a large capacity,good deep discharge performance,charge acceptance ability,low temperature starting ability,low self-discharge rate,Good performance of resistance to temperature change,long life characteristics and so on.
Security seal structure, no need add acid or water to maintenance it, Does not leak acid,No acid mist, Environmental pollution free.
3.CONTROLLER
CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps' electrical systems, and through good control strategy, effective extend the system's power supply time.
*protection grade: IP68, effective dust-proof and water-proof
*compact structure, small volume, easy to install
4.SOLAR PANEL
1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline cells and high transmittance tempering glass, this not only reduce solar power supply system installation cost ,but also increase unit system area electric-power output .
2. Solar power float ±3% , it could ensure our customer get the power from solar panel, reduce the power loss caused from mismatching power, improve system output function and bring more benefit for customer .
3. Obtained TUV CE MCS SONCAP ISO
4. 5 years' warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.
5.POLE
Q235 steel // Components surface is sprayed with the powder after hot galvanized anti-corrosion treatment, smooth surface, non-discolouring , no pinhole hang, no flow, no peeling phenomenon ;
Galvanized layer thickness is not less than 85 microns,
the coating thickness is not less than 100 microns.
Galvanized treatment is in accordance with the standard of GB/T13912-2002 " Film pencil hardness measurement", G
B/T1732-1993 "Paint film punching resistance measurement",GB/T9286-1998 "Paint film of the cross test"
6.Certificates
7.packing and loading

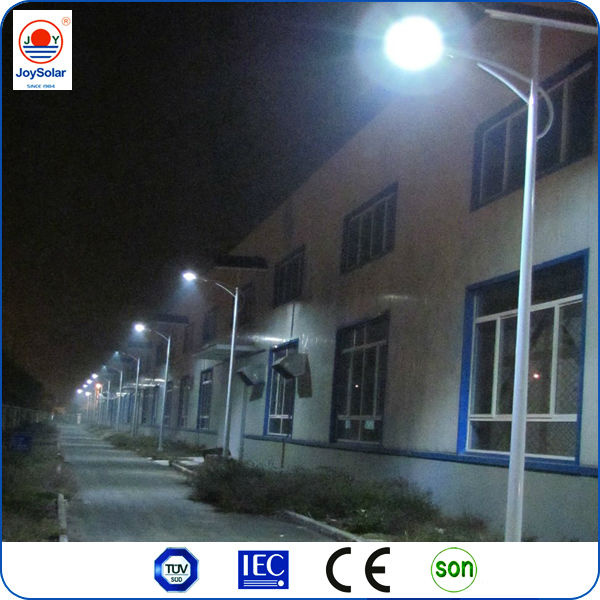

8.our street lighting project
Pole |
Height:2.5m-12m; material:Q235 steel;
Disposal of surface:hot galvanization and spraying powder.
Color:RAL k5 classic optional
Shape:round,square,octagonal etc. |
System voltage |
DC 12V/24V |
Light source |
LED,Saving energy, HFED, LPS |
Fixture |
IP65,Aluminum alloy die-casting form. |
PV module |
Mono or poly solar panel:80W to 370W, can be folded . |
Storage battery |
Deep recycle lead-acid/gel battery from 65AH to 200AH/12V |
Phocos Controller |
IP68 controller with remote control ,5A-20A with automatically time and light control,overcharge and overdischarge protection; |
Bracket |
The angle can be adjusted.
Material:Q235 steel(hot galvanizing and spraying powder) |
Battery box |
PVC box/ABS engineering plastics; Lead-acid / Gel battery.
Position of battery:On the pole or underground |
Daily service hours |
5-12hours (design according to requirement) |
Cloudy&rainy day |
1-9days (design according to requirement) |
Warranty |
1years |
Usage |
street,parking lot,highway,residential etc. |
Advantages |
Easy installation;Environment protection;Free of maintenace; Bracket angle can be adjusted; |
