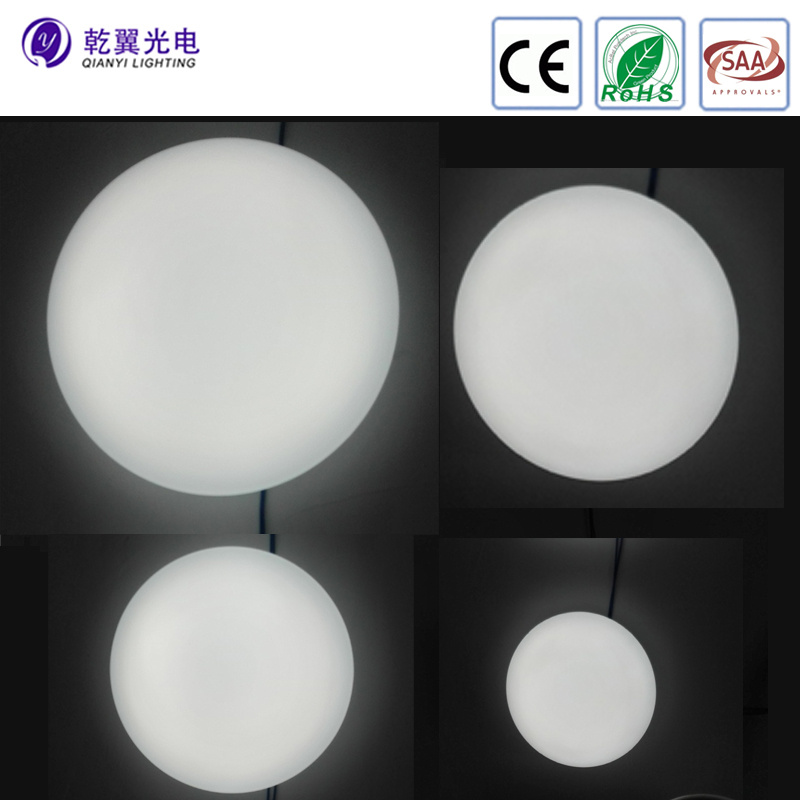

12w to 30w SAA approvals lighting standards IP44 round LED ceiling light
Light source: high quality 0.5W SMD LED
CCT: cool white(5500-6500K), commercial white(4000-4500K)warm white(2800-3300K)
Color of aluminum frame: aluminum silver, white painting
Input Voltage: AC 110-240V
Installation: Surface mounted
Certification: CE, RoHS, SAA
Warranty: 3 years
Brand: Qianyi
Size: D278*99mm
Patented products. Counterfeiting is not allowed.
LED ceiling light with12W/18W/24W/30W surfaced ceiling light
Dimension:
Model | Dia(mm) | Height(mm) |
| QY-CL4-R12W | 278 | 99 |
| QY-CL4-R18W |
290 | 102 |
| QY-CL4-R24W | 350 | 109 |
| QY-CL4-R30W | 400 | 121 |
Package:
Model | Inner Box | Carton | G.W/CTN | QTY/CTN |
| QY-CL4-R12W | 32*32*10.5mm | 680*570*360mm | 8kgs | 10pcs |
| QY-CL4-R18W | 38*38*11mm | 810*600*640mm | 12kgs | 10pcs |
| QY-CL4-R24W | 44*44*12mm | 640*490*480mm | 7.5kgs | 5pcs |
| QY-CL4-30W | 50*50*13.5mm | 810*600*640mm | 9kgs | 5pcs |
Parameters:
Model | Light Source | Power | Lumen Output | Ra |
| QY-CL4-R12W | 24pcs 0.5W SMD LED | 12W | 650-850lm | >75 |
| QY-CL4-R18W | 36pcs 0.5W SMD LED | 18W | 1000-1300lm | >75 |
| QY-CL4-R24W | 48pcs 0.5W SMD LED | 24W | 1400-1600lm | >75 |
| QY-CL4-R30W | 60pcs 0.5W SMD LED | 30W | 1800-2100lm | >75 |
Application:
1. Ceiling
2. Wall
Installation:
1. Open the front cover, connect the input power cord to the terminal block.
2. Fix the light to the ceiling or wall.
3. Close the front cover.
