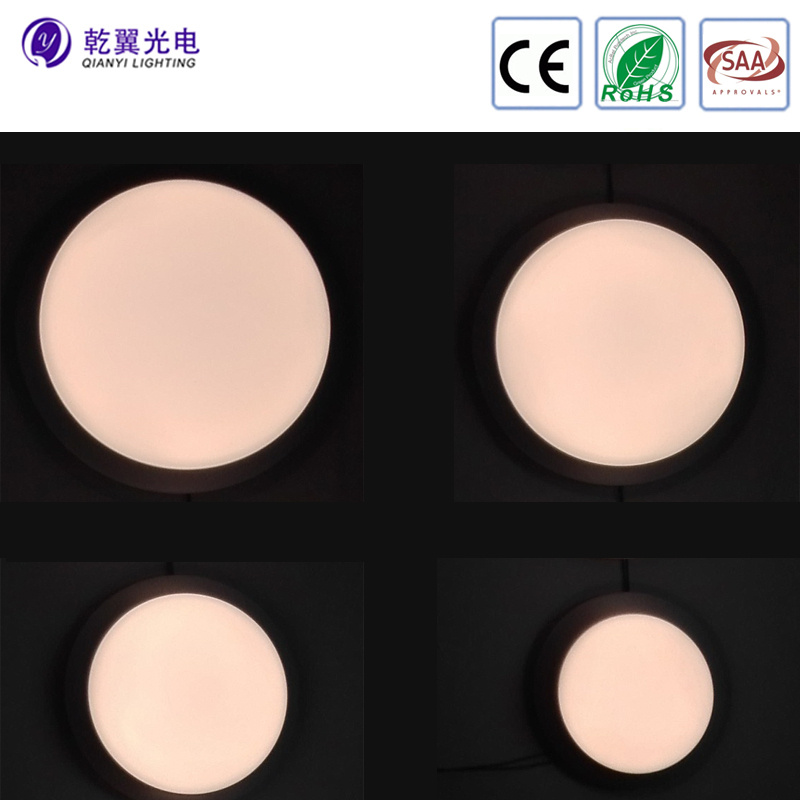

12W LED Oyster Ceiling / Wall Light / ON-OFF Function / Smart Version
Light source: high quality 0.5W SMD LED
CCT: cool white(5500-6500K), commercial white(4000-4500K)warm white(2800-3300K)
Color of aluminum frame: aluminum silver, white painting
Input Voltage: AC 110-240V
Installation: Surface mounted
Certification: CE, RoHS, SAA
Warranty: 3 years
Brand: Qianyi
Size: D262*82mm
Patented products. Counterfeiting is not allowed.
Application:
1. Ceiling
2. Wall
Installation:
1. Open the front cover, connect the input power cord to the terminal block.
2. Fix the light to the ceiling or wall.
3. Close the front cover.
Dimension:
| Model | Dia(mm) | Height(mm) |
| QY-CL3-12W | 260 | 96 |
| QY-CL3-18W | 326
| 98 |
| QY-CL3-24W | 395 | 113 |
| QY-CL3-30W | 460 | 123 |
Package:
| Model | Inner Box | Carton | G.W/CTN | QTY/CTN |
| QY-CL3-12W | 32*32*10.5mm | 68*57*36mm | 10kgs | 10pcs |
| QY-CL3-18W | 38*38*11mm | 81*60*64mm | 14kgs | 10pcs |
| QY-CL3-24W | 44*44*12mm | 64*49*48mm | 9kgs | 5pcs |
| QY-CL3-30W | 50*50*13.5mm | 81*60*64mm | 12kgs | 5pcs |
Parameters:
| Model | Light Source | Power | Lumen Output | Ra |
| QY-CL3-12W | 24pcs 0.5W SMD LED | 12W | 650-850lm | >80 |
| QY-CL3-18W | 36pcs 0.5W SMD LED | 18W | 1000-1300lm | >80 |
| QY-CL3-24W | 48pcs 0.5W SMD LED | 24W | 1400-1600lm | >80 |
| QY-CL3-30W | 60pcs 0.5W SMD LED | 30W | 1800-2100lm | >80 |
Foshan NanHai Qianyi Lighting Co. Ltd is a factory of Export style which was set up in 2014 specializing in desighing and manufacturing all kinds of lighting fixtures. Qianyi Lighting is made up of General factory and a branch factory, taking an area of 10, 000, Stationing over 100 skilled workers, there are 4 production lines inside the factory, including Power-Coating, Aluminum Injection, General Assembling. The annual turn over reaches USD10, 000, 000. The production capacity is increasing by 30% every year so as to meet market demands.
All members in Qianyi Lighting understand we should win the market by good service, quality and better prices. We enforce 7S management to enhance the applying of TUV IS9002 quality management theory. And we have obtained GS-TUV, CE, UL, cUL, ETL, cETL certificates etc. Qianyi Lighting would like to exploit larger market by excellent lightings and service with friends having same ambition in the world.
