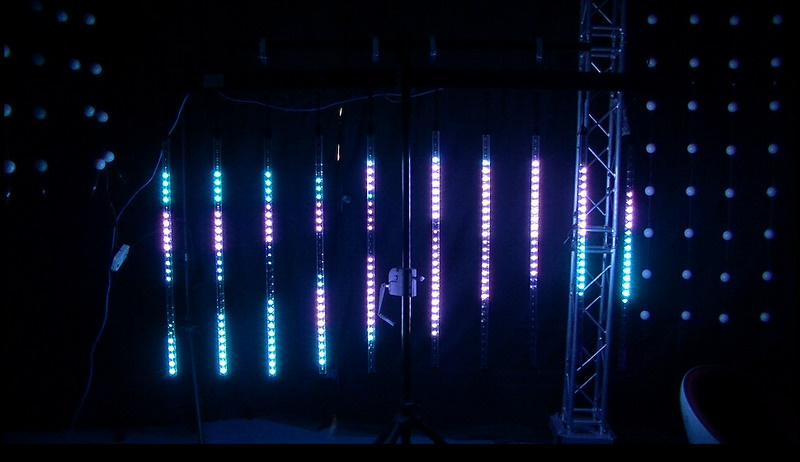

LED Pixel Tube Series
(1m/1.5m/2m length more options for customer)
differents between 3 different tube
Parameter
Type | PT-321 | PT-322 | PT-323 |
| Length | 1000mm | 1500mm | 2000mm |
| Tube diameter | 28mm |
| Working Voltage | DC12V |
| Light source | SMD5050 LED RGB Tri-Color 32*2=64 pcs |
| Beam/View angle | 120 degrees/360 degrees |
| Pixel point / pitch | 32 / 30mm | 32 / 45mm | 32 / 59mm |
| Tube material | PC |
| DMX Channel | 96 DMX Channels |
| Tube color | Clear, Bellows, Milky |
| Power | 15W |
| Weight | 250g | 320g | 430g |
Controller information
Type : KB-200
Power supply : AC100v~240V,50HZ/60HZ
Power : 120w
LCD Display Control panel
Connector : Tube / Ball selected
Operation Mode : automatic,M-S, DMX
DMX channels : 8CH/450CH(Pixel tube)
150CH/225CH/300CH/375CH/450CH(Pixel Ball)
2m 3m 4m 5m 6m
Both DMX and Art-Net control protocol supported
Both Artnet and Kling Net Protocol
Auto Mode : built-in 30 programs with execution speed adjustment
Master/slave mode : for synchronized operation of more units linked in a chain
Driver Bar material : aluminium/Black
Dimensions : 1000*82*65mm (W/H/D)
Weight : 2.28kg
Set weight : 5.2kg
Type : KB-400
Power supply : AC100v~240V,50HZ/60HZ
Power : 120w
LCD Display Control panel
Connector : Tube / Ball selected
Operation Mode : automatic,M-S, DMX
DMX channels : 8CH/450CH(Pixel tube)
150CH/225CH/300CH/375CH/450CH(Pixel Ball)
2m 3m 4m 5m 6m
Both DMX and Art-Net control protocol supported
Both Artnet and Kling Net Protocol
Auto Mode : built-in 30 programs with execution speed adjustment
Master/slave mode : for synchronized operation of more units linked in a chain
Driver Bar material : iron/Black
Dimensions : 300*62*250mm (W/H/D)
Weight : 1.5kg
Applications :
Mobile DJ ,stage backdrop decoration , wedding ,holiday ,all kinds of events and show ,TV station
