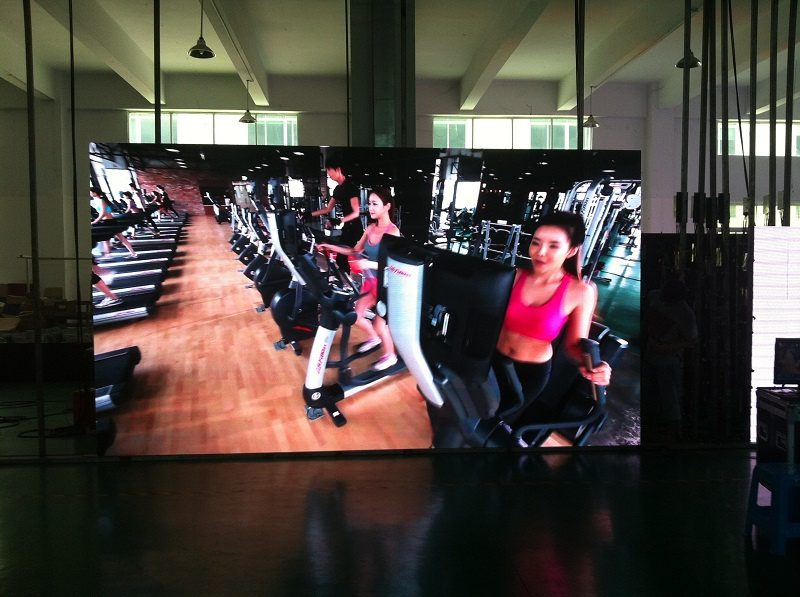

Remote Control Outdoor Full Color LED Display(P6.67):
| Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm | 10mm |
| Pixel density(pix/m2) | 22545 | 15625 | 10000 | 10000 |
| LED Type | 3535 | 3535 | 3535 | Dip346 |
| Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
| Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/6 | 1/5 | 1/4 |
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Module Size (mm) | 320×160×16 |
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | aluminum |
| Cabinet weight(kg) | 12 | 17 | 17 |
| Voltage | 200-240V |
| Average.power(W/m2) | 230 | 230 | 230 |
| Max.power (W/m2) | 700 | 700 | 700 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC(CE)Rosh |
Application:Outdoor Full Color LED Display widly used in culture square,traffic,wharf,air port,station and so on.
Export Markets:North America, South America, Eastern Europe, Southeast Asia,Africa,Oceania,Mid East,Eastern Asia etc.
Features:
1.SMD led encapsulation confirm wide view distance and high brightness,
2.CE,FCC,ROHS certificate,2 years warranty
3.High pixel density, Long view distance, High definition, Good uniformity
4.With Rental design Aluminum Cabinet,light weight,easy and quick to assemble without tools in short time
5.low power consumption, low noise created, low transportation costs, and low installation costs.
6.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
Die cast rental outdoor led display :
1. High Refresh
2. High Resolution
3. Competitive price and Good quality
4. Easily to Install and Dismantle
5. CE,ROHS,CCC, ISO9001
Our service:
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful &win
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
