P3.91 Indoor rental led display detail specification Pixel Pitch 3.91mm
Pixel Density 65536dots/square meter
Pixel Configuration 1R1G1B
Cabinet Resolution 128dots*128dots
Drive Mode 1/16scan
Brightness ≥1000nit/square meter
Color Temperature 6500-9500k
Grey Scale 12-14bit
| Pixel Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 3-in-1 | SMD2121 3-in-1 |
| Environment | Indoor | Indoor |
| Pixel Density | 65,410 dots/m2 | 43,222 dots/m2 |
| Module Resolution | 64×64 dots | 52×52 dots |
| Module Size | 250×250 mm |
| Cabinet Resolution | 128×128 dots | 104×104 dots |
| Cabinet Size | 500X500 mm |
| Cabinet Weight | 8 KG | 8 KG |
| Cabinet Material | Die-casting Aluminum |
| Viewing Distance | >4m | >5m |
| Viewing Angle | H120°V120° |
| Refresh Rate | ≥1,200 Hz | ≥1,200 Hz |
| Maximum Power Consumption | 650 W/m2 | 600 W/m2 |
| Average Power Consumption | 230 W/m2 | 210 W/m2 |
| Drive Mode | Constant current | Constant current |
| Brightness | ≥1,200 CD/ m2 | ≥1,200 CD/ m2 |
| Input Voltage | AC100-240V/50-60Hz |
| Life Span | 100,000 hours |
| Working Temperature | -20°C~60°C |
| Working Humidity | 10%RH~90%RH |
| Gray Scale | 14 bit |
| IP Grade | IP31 |

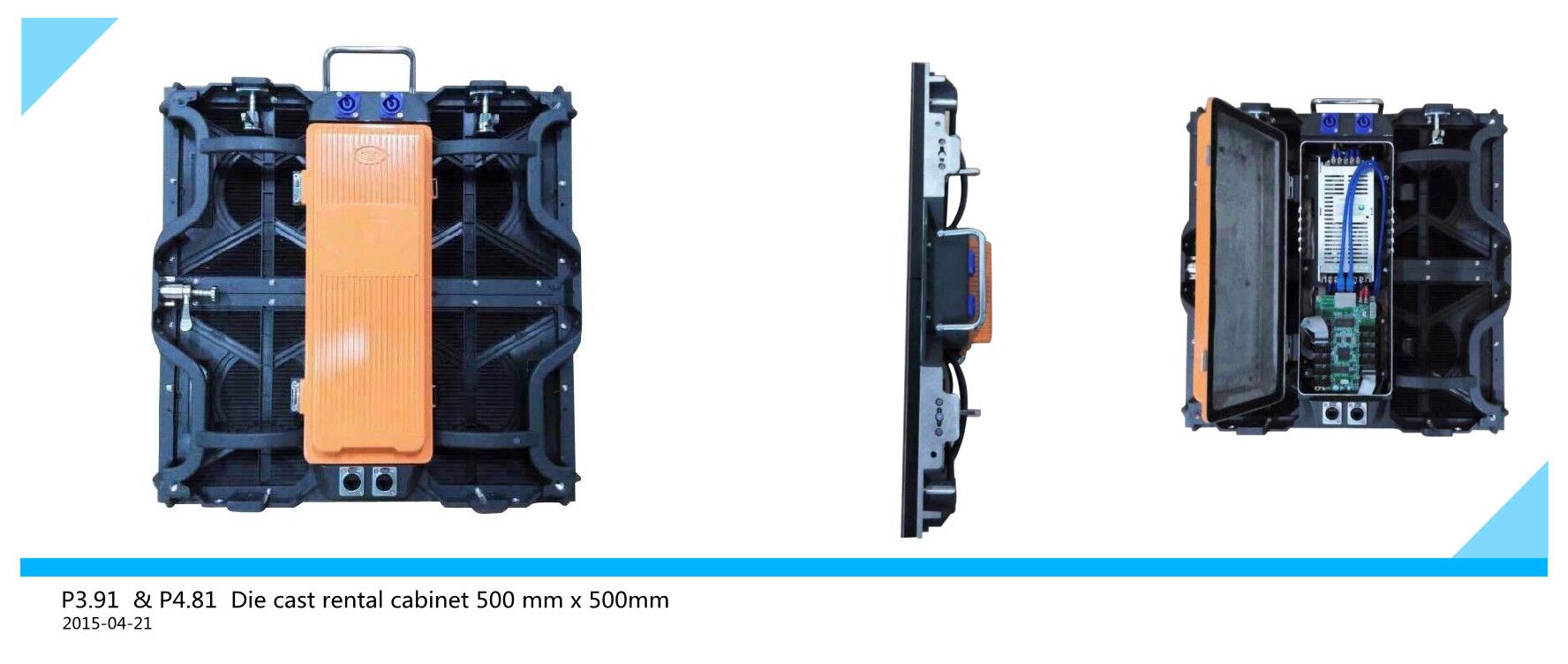

P3.91indoor Rental led display 500 mm x 500mm cabinet aging in the factory
Stable performance, wide applicability, high brightness, high protection grade.
1.High temperature resistant and aging resistant PC materials are applied in the modules to get rid of the mosaic problem even after long time use.
2.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
3.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.

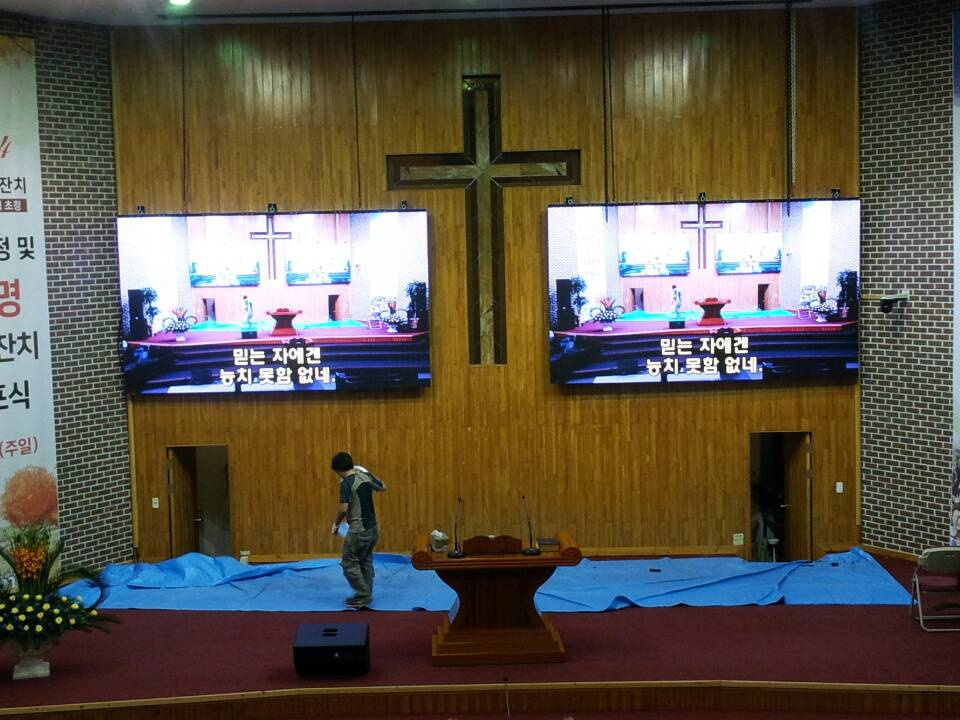

P3.91 indoor rental led display install in Korea
Rental LED Display Function
1.Video Broadcast Functions
2.Information dissemination functions
3.Network functions
Rental LED Display Applications
Commercial advertising:Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc.
Live broadcast:Gym, Stadium, Concert, Sport Match, Competition, Gov publication etc.
Rental business:Entertainment, Wedding, Party etc.
Led Display Service for customers
1.We provide pre-sale service in technical consultation, for example, recommending and designing solutions as pre the customers request, which help lower the risk of customers` investing.
2.In the process of production, gloshine follows up the tightly and accept the supervision from the clients.Necessary trainings are also provided to the customers.
3.For the after-sale service,Noveled takes the great responsibility to collect customers` feedback, inspection and maintains products periodically to ensure solving problems timely.
