Home LED Light Products Reflector Cup CREE Stereo COB 15W LED 2500k AR111/Qr111 (J)

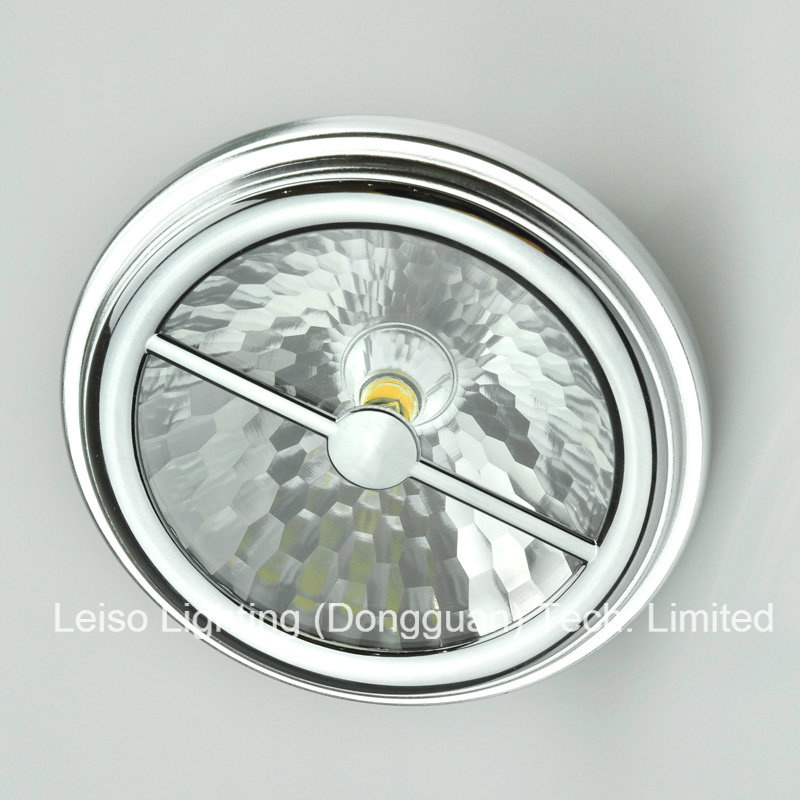

Reflector Cup CREE Stereo COB 15W LED 2500k AR111/Qr111 (J)

Reflector Cup CREE Stereo COB 15W LED 2500k AR111/Qr111 (J)
Price: US $ 14-17/Piece
Trade Terms: FOB,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Power: 15W
Replacement 75W halogen AR111
Input voltage: 12V AC/DC
CCT: Customized from 1800-2500K, Standard CCT: 2700K, 3000K, 4000K, 5500K
Lumens: 840lm-1000Lm
CRI: 80Ra/90Ra/ Customized 95Ra
Beam angel: 24/40 degree
Size: Φ 111*H55.5mm
Dimmable: Avialable with external driver or GU10 base
Warranty: 3 years free replacement
Lifespan: 45000hrs

Advange:

1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4. Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W halogen lamp, saving at least 80% energy.
7. TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained.
8. Customized color temperature from 1800K, 2200K, 2500K, and standard CCT: 2700K, 3000K, 4000K, 5500K
9: CRI 80 and 90 for choose
10. Materials: PC940. Excellent resistance Burning level V-0.
11. With PMMA cover on the lamp to pretect the dust-free.
Item No.Data sheetPowerLumens (CCT)Product DimensionVoltageDimmablePacking Data
CTN
Qty
CTN
Dimension
Volume weightGross weight
LS-S618-G53-BWW/BW* SCOB AR111
* Reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
15WCRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K)
Φ111*H55.5mm12V DC/ACNOT2453x39x22cm9.1kg8.2kg
LS-S618-G53-A-BWW/BWCRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
Φ111*H55.5mm12V DC/ACNOT24
LS-S618-GU10-BWW/BW* SCOB AR111
* Reflector design
* CREE Chip
* Beam angle : 24°/40°
* GU10 base
15WCRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 900 lm (4000K)
CRI >80, 960 lm (5500K)
Φ111*H84mm100V~240V ACNOT2453x39x28cm11.6kg9.4kg
LS-S618-GU10-BWWD/BWD110-120V AC      220-240V ACYES
LS-618-G53-ED-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver
15WCRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K)
Φ111*H55.5mm200V~240V ACNOT2453x39x28cm11.6kg13kg
LS-618-G53-ED-BWWD/BWDCRI >80, 840 lm (2700K)
CRI >80, 860 lm (3000K)
CRI >80, 960 lm (4000K)
CRI >80, 1000 lm (5500K)
220V ACYES
LS-S618-GU10-A-BWW/BW* SCOB AR111
* Reflector design
* CREE Chip
* Beam angle : 24°/40°
* GU10 base
15WCRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
Φ111*H84mm100V~240V ACNOT2453x39x28cm11.6kg10.4kg
LS-S618-GU10-A-BWW/BW110-120V AC      220-240V ACYES
LS-S618-G53-A-ED-BWW/BW* SCOB AR111
* reflector design
* CREE Chip
* Beam angle : 24°/40°
* G53 base
* With External Driver
15WCRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
Φ111*H55.5mm200V~240V ACNOT2453x39x28cm11.6kg13kg
LS-S618-G53-ED-A-BWWD/BWDCRI >90, 780 lm (2700K)
CRI >90, 800 lm (3000K)
CRI >90, 820 lm (4000K)
220V ACYES

Prod Model: LS-S618-G53
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Halogen Effective AR111: 111*63mm
Cct: 2300k
CRI: 80
Materials: Aluminum
Emitting Color: Full Range
Power: 15W
Base Material: Aluminum
Usage: Decoration
Life: 50000h
Certification: CB
Power Source: AC
Electric Current Type: DC
Input Voltage: 12V
LED Chips: CREE
Diffuser: Aluminum
IP Rating: IP20
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.

Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.

The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.

"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
