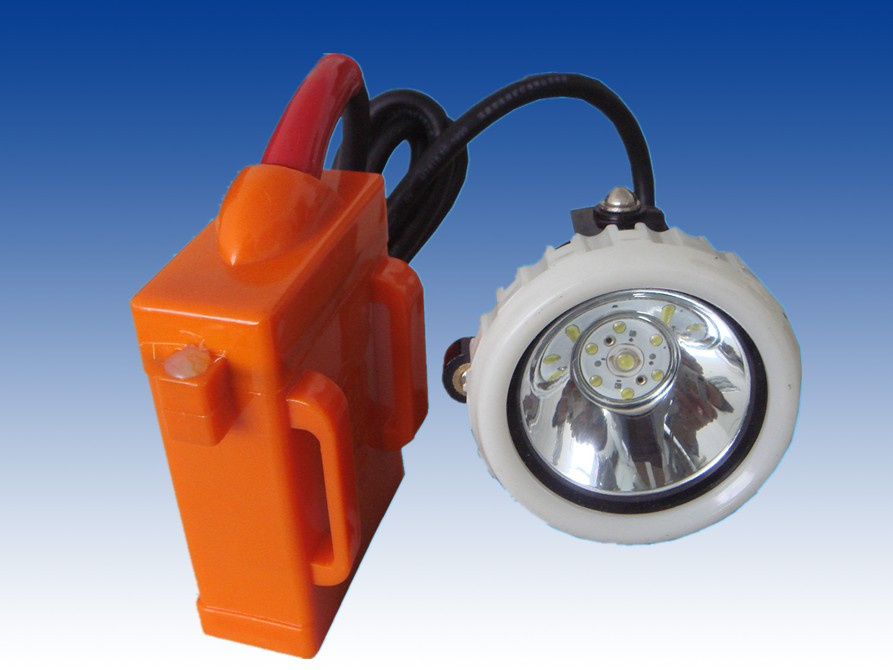

LED Emergency Light KL4LM(B)
Features
1 one high output 1 watt LED, six low output LEDs
2 two lighting levels: Maximum code and economic code
3 multi-function for mining and outdoor sports
4 rechargeable up to 500 times
5 >20000 Hrs >1500lux at the maximum code
6 two years warranty
Specifications of LED Emergency Light:
Rated voltage: 3.7V
Rated capability: 4Ah
Lighting time: 11H
Main light rated current: 0.15A
Assistant light rated current: 0.11A
Working temperature: -20-40degree
Relative humidity: ≤ 95%± 3RH
Atmospheric pressure: 80kPa-106kPa
Illuminance of the beginning: ≥ 1500lux
Illuminance of 11 hours later: ≥ 800lux
Charging time: 8-10h
Symbol of the explosion-proof: Exsl
Life time: >20000Hrs
IP degree : IP65
Descriptions of LED Emergency Light:
It is the new generation safe, energy-saving and environmental friendly LED Mining light. The main light source adopts high lumen high-power 1W LED, six low-power LED assistant light source. High efficiency and long lifetime. It adopts lithium-ion battery which has the large storage, and also has the protection multi-circuit, safety and PRO-environment. It has lots of advantages like small volume, light weight, good water-proof, long lighting time, high illuminance, free maintenance, no memories of charge and discharge, ect. Same structure as the traditional mining light. It is convenient to be fixed on miner's hat.
Instructions of LED Emergency Light
1. KL4LM(B) LED Mining light is available for constant-voltage and constant-current charger
2. Output DC of charger: 5.5V-7V, Output Voltage of inside charger controller
Steady between 4.1V-4.3V. Charge protection voltage 4.35V. Protecting delaying time of over charge: 100 ms. Charging constant-current could be control between 650mA to 850mA.
3. It is charged before selling, pls recharge 10 hours before use.
