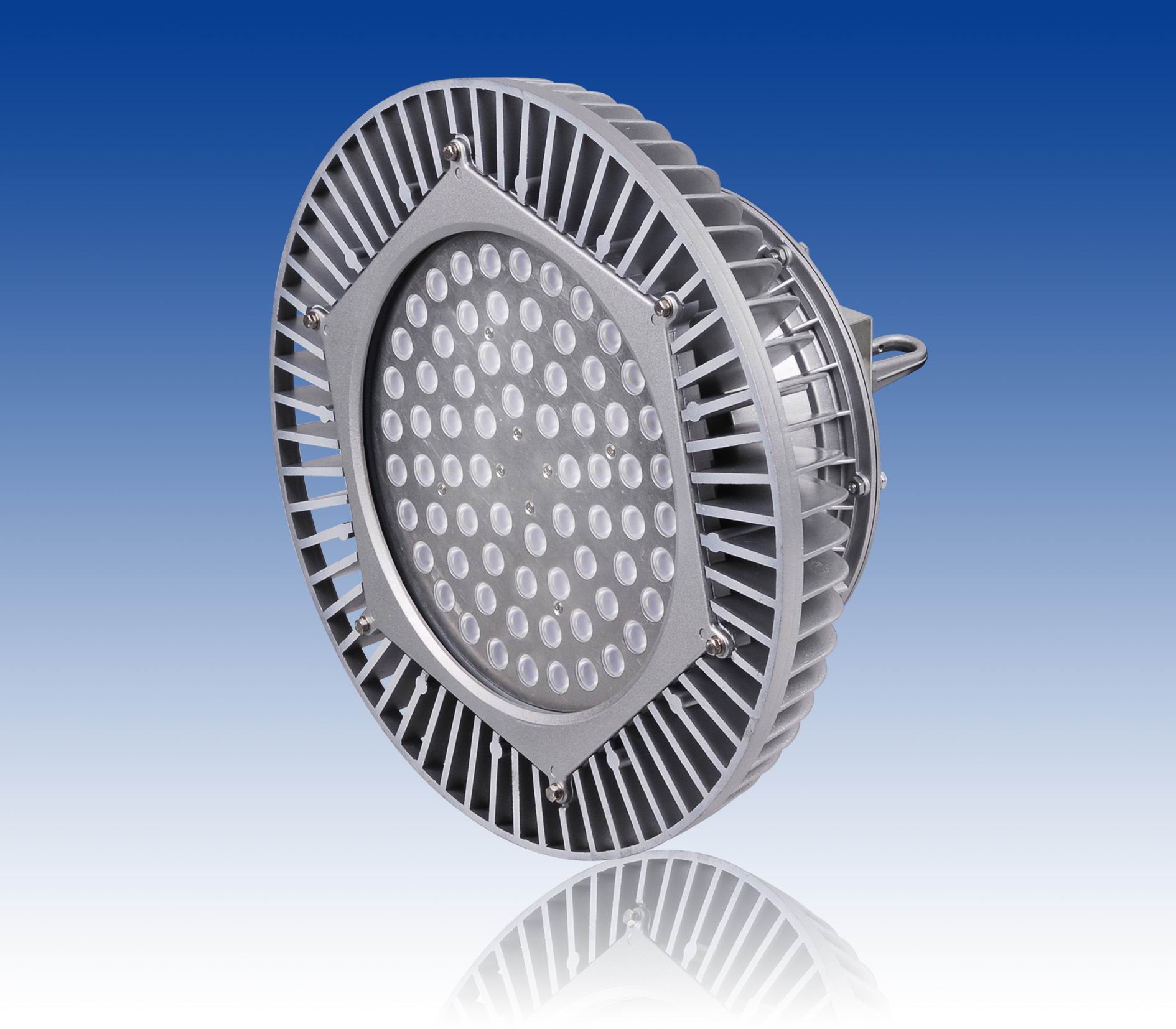

Specifications of 200W LED high bay light:
Input Voltage: AC85-265V
LED Quy: 70PCSX3W
Power: 200W
Luminous Flux: 16800lm
Illumination(3M): >1400lux
Angle: 130 degree
Package Dimension: 406mm*450mm*450mm
CRI: >80
Power Factor: >0.9
Efficiency: >80%
Working Frequency: 50-60Hz
Life Time: >50, 000Hrs
CCT: 3000K, 4000K, 6500K
IP Degree: IP65
Descriptions of 200W LED high bay light:
The housing adopts high-pressure die-casting aluminum, surface powder is by electrostatic spray, The beautiful appearance is anti-corrosion, waterproof, dust-proof. The reflector is with highpurity aluminum, the lighting angle is large, lighting intensity is uniform and without glare. The unique sesigned radiator consuct and spread heat efficiently to ensure the heat dissipation request and lifetime.
Applications of 200W LED high bay light:
1. Workshop
2. Storages
3. Factories
4. Shops
5. Restaurants
6. Garages
7. Supermarket etc
|
Input Voltage |
AC85-265V |
|
|
Frequency |
50-60Hz |
|
|
|
Efficiency |
> 0.9 |
|
|
|
CRI |
Ra> 75 |
|
|
|
Lifetime |
> 50000hrs |
|
|
IP degree |
IP65 |
|
|
|
Working Temperature |
-105 |
|
|
|
Package size |
280*450*450mm |
|
|
N. W |
120W |
160W |
200W |
|
|
8.8KG |
8.8KG |
8.8KG |
|
G. W. |
11KG |
11.5KG |
11.5KG |
|
Package |
1PC/CTN |
|
|
|
Model |
Light source |
LED Qty |
Luminous flux |
Comsumption |
CCT |
Illumination |
|
CH-G13W120 |
2W LED |
56PCS |
8960lm |
120W |
5000-7000k |
≥ 1000lux |
|
CH-G13W160 |
2.5W LED |
70PCS |
14000lm |
160W |
|
≥ 1250lux |
|
CH-G13W200 |
3W LED |
70PCS |
16800lm |
200W |
|
≥ 1400lux |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
