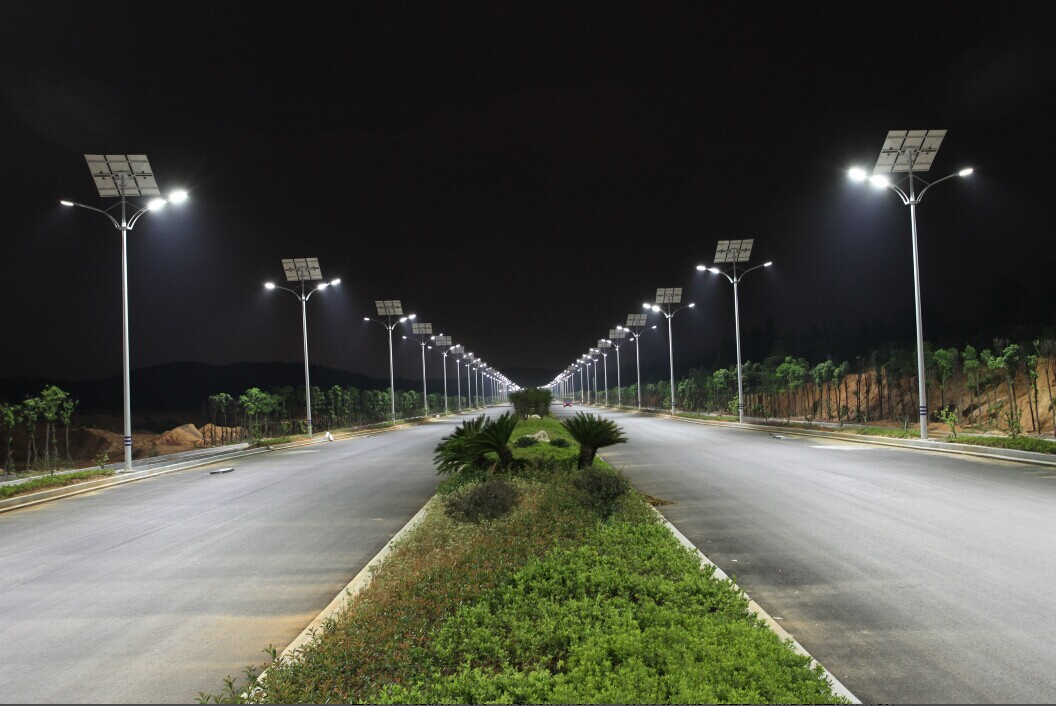

60W Led solar street light
Pole height: 8m
Solar panel: 180W
Battery: 2*120AH
Contrller: 10A/24V
Lamp: led light 60W
size:680*305*70mm
weigh: 7.5kg
aluminum alloy die-casting molding with toughened glass
working life>50000 hours.
Features:
1. High Power, high lumen, high quality
2.Save 80% more energy compared with traditional lighting fixtures
3.Easy to install and use, secure and reliable
4.No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux, long life span>50000hrs
7. High brightness, low consumption, green for environment
We can produce LED street lights from 30W to 150W.
Item |
Description |
Pole and
Solar panel
bracket |
Height:8m.
Diameter:70/180mm,3.75mm thickness,
flange:350*350*18mm
hot deep galvanized Plastic electrostatic spraying,
working life≥25 years. |
LED Lamp |
lighting source:60W
size:680*305*70mm
weigh: 7.5kg
aluminum alloy die-casting molding with toughened glass
working life>50000 hours. |
Panel |
maximum power:180W
polysilicon solar panel
working temperature:-40ºC--85ºC
Power tolerance:±5%
working life ≥20 years |
Battery |
2*120AH
Gel-battery
working life≥3 years |
Battery
Box |
2*120AH battery box/engineering plastics,
working life≥20 years |
Controller |
10A/24V working life≥3 years
protection:
-Overheating -Over discharging -Over charging
-Load overload -Load short circuit
-PV reverse polarity -Battery reverse polarity |
