Home LED Light Products Portable Explosion Proof LED Work Light

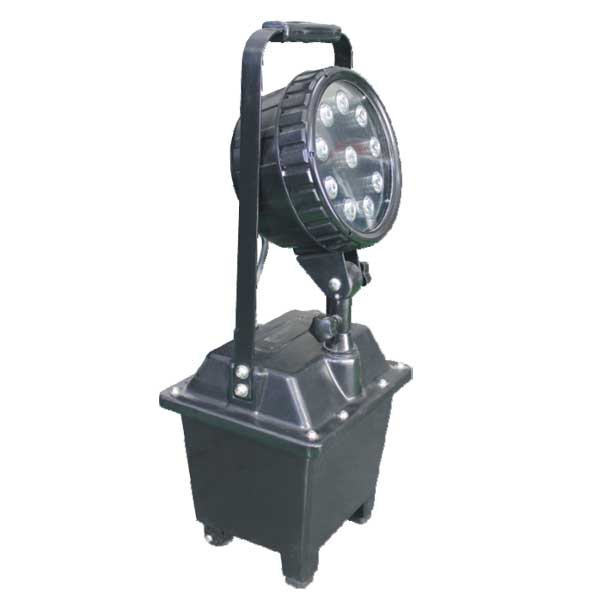

Portable Explosion Proof LED Work Light

Portable Explosion Proof LED Work Light
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
 LED Explosion Proof Work Light/Working Lamp/Worklight

1. Application:
Hazardous zone 1&2;
Dust zone 20, 21& 22;
Explosive gas atmosphere class: IIA, IIB, IIC;
Temperature class: T1-T6;
Widely used in patrol, overhaul, emergency rescue, cargo loading and unloading and other inside and outside places to used as movable light;
Applied to oil field, power, petrochemical, railway, metallurgy, mine, public security and fire fighting.
2. Features:
Both Flameproof enclosure and Increased safety make it's good explosion-proof performance.
High hardness alloy shell can withstand strong shock, so it can be applied in all kinds of severe conditions.
Imported high power LED light source, constant current output to ensure light's steady brightness.
Battery adopts high-energy lithium battery featured with large capacity, long lifespan, and can be recycling, it is economical and environmental.
Both can be used as portable lights or be used on the support which is adjustable from 1.2meter to 1.3 meter. The wheels at the bottom of the lamp body which can move on ground or track easily.
The light can be working in heavy rain. The aluminum alloy body can resist high impact .
Two options: Strong light and work light for different needs, easy to switchover.
3. Operations and Cautions:
Please make sure it's power off before charging.
It can be used anytime within 6 months when fully charged for one time; if it remains standby status for a long time, it should be charged at least one time within half year.
Try to avoid charging or storing on the high temperature occasions in order to prolong the light's and battery's service life.
Do not disassemble hardware and seal components to avoid disabling light's performance and capability. If light must be disassembled, it should be handled by professiona person.

1 x CREE Q4high-luminance white LED with lifespan of more than 100,000 hours.
High-energy18650 Li-ion batteries, 600 times circulating life,with protection circuit.
Machined6063-T6 aircraft aluminum case with anodized finishing is tough andlightweight, insulative,extremely durable and resists crushing.
Toughenedglass with 6mmthickness as lens that assures clear and bright beam,scratch-proof .
Aluminmumreflector focuses the LED's light to creat a smooth,near-flawless beam andhas a better radiating than plastic.
Nicewaterproof design, can be used under water.
Intelligent electronic willprevent over-charging over-discharging and short circuit.
Stable current can providestable brightness.Protection circuit will shut down automatically when thebattery reaches a low voltage value.
Three output levels—high light,working light and strobe. . Withbattery capacity forecast.

Explosion-proof LED torch light


  LED Explosion Proof Work Light/Working Lamp/Worklight
Parameter Value
Power 30W
Rated Voltage 24V
Light Efficency 90LM/W
Rated Capacity 17Ah
Working hours(work light) 35h
Working hours(strong light) 20h
Charging Time 12h~16h
 LED Lifetime ≥100000h
Battery Lifetime ≈1000 times(cycle)
Ex mark Ex de IIC T6
Anti-corrosion Class WF2
IP Grade IP66
Gross Weight 20KG
Prod Model: EPLC01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source Life Expectancy: ≥ 100, 000 H
Dimension: Dia 40*196mm
Rated Voltage: 3.7V
Charging Time: ≈ 8h
Explosion-Proof Grade: Exd II C T6
Continous Operating Hours: 15h(Work Light)/7h(Strong Light)
Rated Power: 18W
Rated Capacity: 6.6ah
IP Rating: IP68
Certification: UL
Emitting Color: White
Application: Industrial
Why Not NIBBE?

Pls kindly check some NIBBE facts as following:

1 NIBBE is one of the largest and leading Explosion-proof Lighting factory in China.

2 Most NIBBE products use high quality Bridgelux COB LED, CREE high power LED light source and MOSO/Mean Well driver.

3 NIBBE has the highest standard and its products can meet Ex d II C T6 GB, Ex d I MB, Class 1, Division 2. C1, D1 and I are under development

4 NIBBE has a wide product range and covers all main kinds of explosion proof lights and is ideal for one-stop sourcing.

5 NIBBE has over 10 global patents.

6 NIBBE factory has been certified with ISO 9001: 2008 and ISO 14001: 2014 system

7 NIBBE is the first Chinese factory with main international approvals, including ATEX, cLCus(UL and CSA standards), GOST, CNEX, MA, CE, RoHS, etc. IEC EX is pending.

8 NIBBE products have 3-5 years warranty.

9 NIBBE is the key supplier of big oil enterprises, such as Conoco Phillips, Chevron, SINOPEC, CNPC, CNOOC, etc.

10 NIBBE has rich oversea experience and has exported to over 50 countries for 5 yrs.

11 NIBBE is one hour drive from Hong Kong and very easy to visit.

Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.

Why not buy directly from the original OEM/ODM factory with better price, quality reliability and service?

NIBBE-The Ultimate Explosion-proof Lighting Partner for You!

Besides, NIBBE also makes non-explosion proof lighting, such as LED flood light, LED steet light, LED hay bay light.
