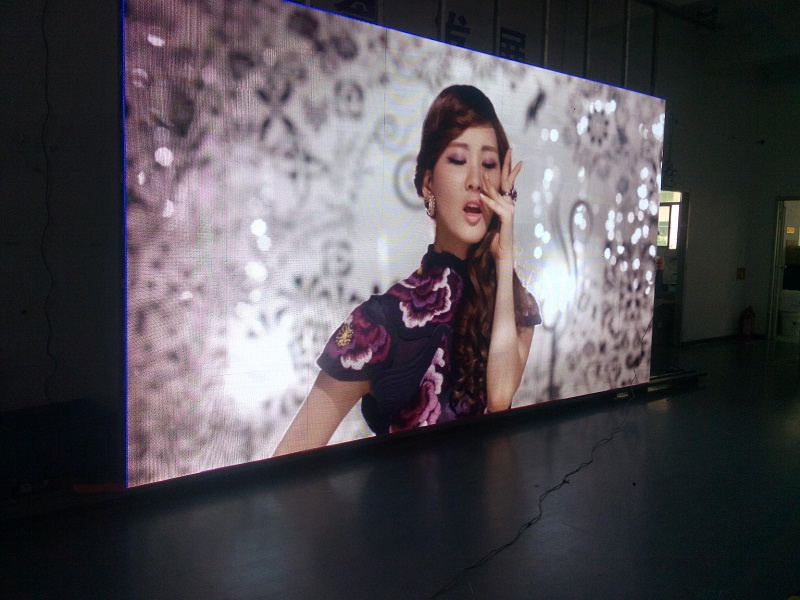

pH6 Indoor full color LED Display for advertising
indoor SMD 3in1 fullcolor led display has the function of uniformity color, wide viewing angle and perfect images, it is widely used in concerts, stage, church, shopping mall, airport, railway station, hotel, hospital and etc.
Wide Viewing Angle
Horizontal and vertical viewing angle is 140 degrees, pictures and videos of the display can be viewed by more viewers.
High Brightness and Brightness Adjustable
The brightness is more than 1500nits/sqm, and can be adjusted automatically, it saves power cost.
High Refresh Rate
The refresh rate is more than 1000HZ, it is flicker-free when live broadcast. It fully meets the needs of professional camera shooting.
Professional-grade Connectors
indoor SMD led displays use professional grade connectors for fast installation, safe and stable connection.
Fast and Easy to Maintain
indoor SMD display can be front service design, it can be maintenaned from front.
Quality Guaranteed
The product is designed and produced in strict compliance with international standards, such as CE, ROHS.
| Model | P6 |
|---|
| Model No.: | LEDA-IW-P6 |
|---|
| Pixel Pitch | 6mm |
|---|
| LED Type | SMD3528 |
|---|
| Pixel Configuration | 1R1G1B |
|---|
| LED Driving Method | 1/8 Scan |
|---|
| Module Pixel | 32*16 (W*H) |
|---|
| Module Size | 192*96MM |
|---|
| Cabinet Pixel | 128*128 (W*H) |
|---|
| Cabinet Size | 768*768MM |
|---|
| Cabinet Weight | 35KG |
|---|
| Max. Power Consumption | ≤1000W/ |
|---|
| Ave. Power Consumption | ≤500W/ |
|---|
| Hor. Viewing Angle | 140° |
|---|
| Verti. Viewing Angle | 140° |
|---|
| Brightness | ≥1500 cd/ |
|---|
| Pixel Density | 27777/ |
|---|
| Protection Level | IP43(Front & Back) |
|---|
| Processing | 16 bit |
|---|
| Colors | 281 trillion |
|---|
| Refresh Rate | ≥1000HZ |
|---|
| Frame Rate | 60fps |
|---|
| Lifetime | 100,000 Hours |
|---|
| Power | AC220/110 ± 10%, 47~63Hz |
|---|
| Operating Temperature |
-20ºC to +60ºC |
|---|
Operating Humidity |
20% to 90% |
|---|
Brightness Level | Manual 100 levels,automatically 16 levels |
|---|
| Certifications | CCC, FCC, CE, ROHS, UL, ETL
|
|---|
