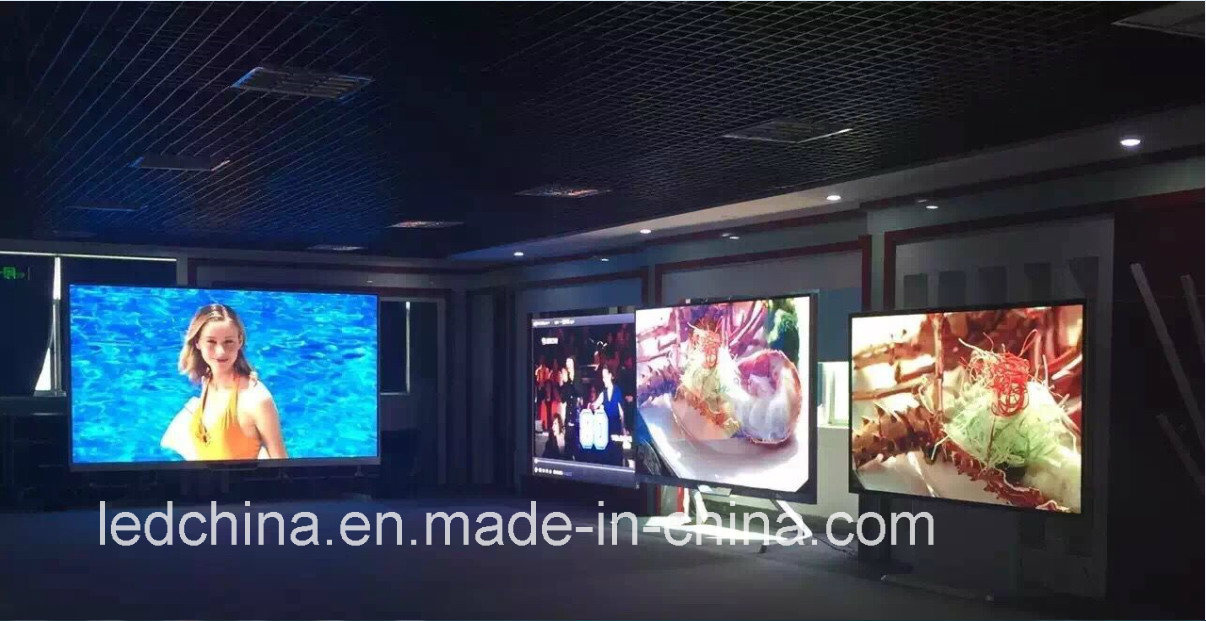

PH5 Indoor High Refresh LED Display
Products Advantages:
1. Price Advantage: We have the best competitive price at the market, have the same even better quality.
2. Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps.
3. Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4. Service advantage: Better service at same situation, better cooperation at same service!
| PH5 Indoor High Refresh LED Display |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD3528 | 120-140mcd | 620-625nm | 140º/65º |
| 3 | Green LED | SMD3528 | 360-435mcd | 520-525nm | 140º/65º |
| 4 | Blue LED | SMD3528 | 80-100mcd | 470-475nm | 140º/65º |
| Module Specification |
| 1 | Pixel Pitch | 5mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 64 x 32 pixels |
| 4 | Module Pixles | 2048 pixels |
| 5 | Module Size | 320mm X 160mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 640mm x 640mm x 80mm |
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels |
| 3 | Module Quanity (pcs) | 8pcs |
| 4 | Cabinet Pixels | 16384 pixels |
| 5 | Pixel Density | 40000 pixels/m2 |
| 6 | Cabinet Materials | Standard Iron or Aluminum |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥1500cd/m2 |
| 2 | Driving Method | 1/16 scan |
| 3 | Best Viewing Distance | 5m - 30m |
| 4 | Max. Power Consumption | 750W/m2 |
| 5 | Average Power Consumption | 300W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1200Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | For indoor use only |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
| Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
