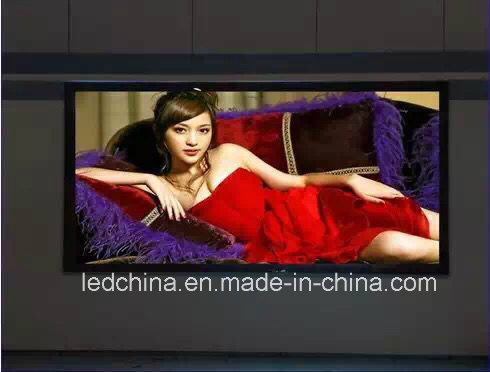

Ultrathin Lightweight Indoor P3 High Definition LED Display

Ultrathin Lightweight Indoor P3 High Definition LED Display

Application:
Applied to place where requires high-definition display and fast installation such as Indoor stage, television studio, concert, exhibition etc.

Features:
1. Ultrathin and lightweight: Each cabinet weighs only 9.2kg, easy to install and transport.
2. Noiseless: Die-casting Aluminum cabinets, fanless design with noiseless power supply.
3. Seamless: High precision CNC machining, precision up to 0.1mm
4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour.
5. Front service: use patented spring bead positioning pain and connection lock, any defective cabinet can be removed easily without dismantling the whole screen
6. Mask without screws: mask fixation uses patented snap joints instead of screws; it takes only 25 seconds to assemble one module, much more convenient for maintenance.
7. Unique blanking circuit: high definition display by eliminating the rowne after-image without damaging the LED lamps.
8. Energy saving: low electric current, high bright lamps, equipped with PFC switching power supply, save 30% electricity.

Ultrathin Lightweight Indoor P3 High Definition LED Display
S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type		Brightness		Wave Length		H/V  Visual Angle
2	Red LED	SMD2121		120-140mcd		620-625nm		140º/65º
3	Green LED	SMD2121		360-435mcd		520-525nm		140º/65º
4	Blue LED	SMD2121		80-100mcd		470-475nm		140º/65º
Module Specification
1	Pixel Pitch	3mm
2	Pixel Configuration	1R1G1B
3	Module Resolution	64 x 64 pixels
4	Module Pixles	4096 pixels
5	Module Size	192mm X 192mm
Cabinet Specification
1	Cabinet Size(W X H X D)	576mm x 576mm x 80mm
2	Cabinet Resolution(dot)	192 x 192 pixels
3	Module Quanity (pcs)	9pcs
4	Cabinet Pixels	36864 pixels
5	Pixel Density	111111 pixels/m2
6	Cabinet Materials	Die Casting Aluminum Cabinet for rental purpose
7	Cabinet Weight	9.2kg per cabinet
8	Packaging	Fly case
9	Fly Case Size	77CM*63CM*80CM ( one case for six cabinets )
Whole Screen Specification
1	Screen Brightness	≥1700cd/m2
2	Driving Method	1/16 scan
3	Best Viewing Distance	3m - 30m
4	Max. Power Consumption	1150W/m2
5	Average Power Consumption	550W/m2
6	Gray Level	8bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥1200Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Protective Scale	For indoor use only
17	Screen Plainness	<±1mm
18	Power Supply Mode	AC220±10%  50Hz/AC110±10%  60Hz
19	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius
		Humidity:10%~90% RH
20	Control Mode	Synchronous display with control PC by DVI
21	Control System	DVI video card + full color control card + fiber system( optional)
22	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
23	Interface	Standard Ethernet
24	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
