| Price: | US $ 1484/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
Product Features
High definition and could be adjusted, so it can meet the request of the customers according the application environments. |
Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light. |
To picture and character, have clear, exquisite and real display effects. |
Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion. |
Can repair each led lamp, so the cost of maintenance is lower, and easy to repair. |
LED Parameters
Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition |
|
Red LED | 150-200mcd | 120º/120º | 620-630nm | 25ºC,20mA | |
Green LED | 260-330mcd | 120º/120º | 520-535nm | 25ºC,20mA | |
Blue LED | 55-65mcd | 120º/120º | 465-475nm | 25ºC,20mA |
Module Parameters
Pixel Pitch | 4mm |
|
Pixel Configuration | 1R1G1B SMD 3in1 | |
Module Resolution | 48dots*48dots for real | |
Module Pixels | 2304 dots | |
Module Size | 192mm*192mm | |
Module Weight | 0.55KG |
Cabinet Parameters
Cabinet Size(W*H*D) | 576*576*80(mm) |
|
Cabinet Resolution | 144dot*144dot for real | |
Module Quantity | 9 pcs | |
Cabinet Pixels | 20736 dots | |
Pixel Density | 62500 dot/sqm | |
Avg. Power Consumption | 250W/sqm | |
Max. Power Consumption | 750W/sqm | |
Material | Aluminum | |
Cabinet Weight |
|
Screen Parameters
Brightness | ≥1800cd/sqm |
Contrasts (Max. /Min.) | 1.1:1 |
Driving Method | Static |
View Angle | Horizontal 120° Vertical 120° |
Optimal Viewing Distance | 3m to 50m |
Brightness Control | Red, Green and Blue 256 Grade/Each |
Fresh Frequency | ≥600Hz |
Frame Frequency | 50 - 60Hz |
Input Voltage | AC220V/50Hz or AC110V/60Hz |
Defects Rate | ≤0.00001 |
Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
MTBF | >10,000 hours |
Life Span | ≥100,000 hours |
Brightness Uniformity | <3% |
Earth Leakage Current | <3mA |
Protective Grade | IP45 |
Temperature-operating | -40ºC~60ºC |
Humidity-operating | 10%~90% |
Operating System | Windows98/me/2000/NT/XP/win7 |

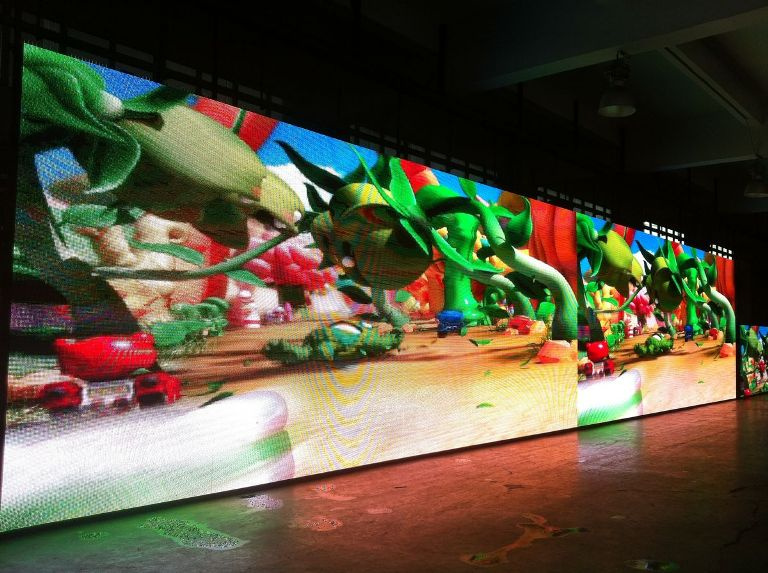

| Prod Model: | PH4 SMD rental led display |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 192*192 |
| Module Resolution: | 48dots*48dots for Real |
| Module Pixels: | 2304 Dots |
| Module Weight: | 0.55kg |
| Cabinet Size(W*H*D): | 576*576*90(Mm) |
| Cabinet Resolution: | 144DOT*144DOT for Real |
| Material: | Die-Casting Aluminum |
| Cabinet Weight: | 8kg for Aluminum Cabinet |
| Brightness: | More1800CD/Sqm |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Scanning Mode: | 1/16 Scan |
| Certification: | CCC |
| Pixel Pitch: | 4mm |
| Application: | Shopping Guide |
| IP Rating: | IP43 |
| Pixel Configuration: | 1r1g1b SMD2121 3in1, 1R, 1G, 1B |
| Pixel Density: | 62500dots/Sqm |
| System Operating Platform: | Windows98/Me/2000/Nt/XP/Win7 |
