Product Details
Basic Info.
Model NO.:PH3.91
Display Type:LED Video Display
Tube Chip Color:Full Color
IP Rating:IP65
Pixel Configuration:1R, 1G, 1B
Certification:CE, RoHS,, CCC, Pixel Pitch:
3.91
Display Function:Video Display
Application:Stage Performance Advertising Shopping Guide
Scanning Mode:1/16
Pixel Density:65746
Average Power Consumption:220W / m²
Die-Casting Aluminum Cabinet Size:500mmx500mm
Outdoor HD Rental LED Screen:pH3.91
Export Markets:Global
Additional Info.
Trademark:P3.91
Packing:Flight Cases
Standard:CE ROHS
Origin:
Shenzhen, China
Production Capacity:3000 Square Meter Per Month
Product Description

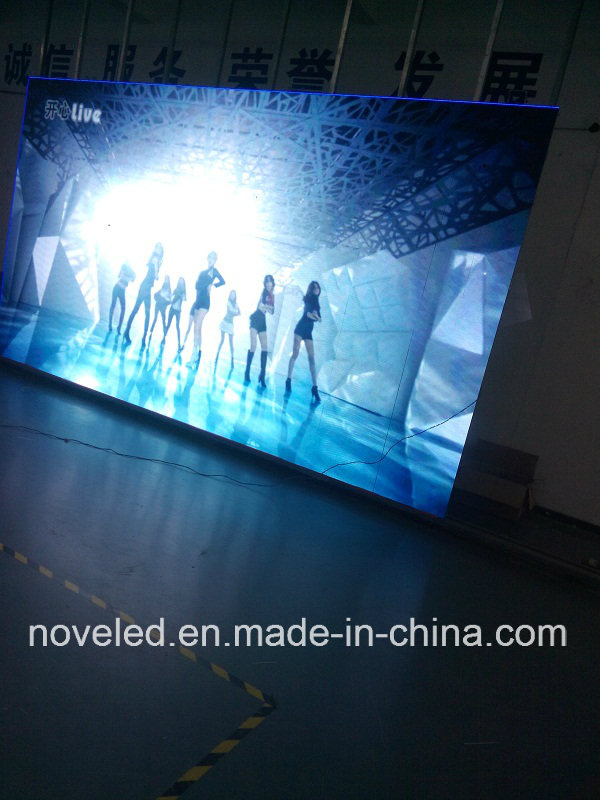

HTS SMD LED DISPLAY FOR AV RENTAL USE
3.91mm pixel pitch, Outdoor die-casting aluminum slim led displays
The premium 3.91mm die-casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless .
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections .;
5. No tools to assemble and dismantle, less worker and saves the cost
6. It suit for hanging-up, each hanging beam can bearing 10-15 pcs cabinets.
Application:
TV Show Ceremonies Shopping Mall
Installation Diagram
Specification |
| LED |
|
| Color | Package | Chip Brand | View Angle | Wavelength | Test Cond. |
| Red | SMD2828 Black-face | Epistar | 120°/120° | 625nm | 25 degree,20mA |
| Green | Silan | 120°/120° | 520nm | 25 degree,20mA |
| Blue | Silan | 120°/120° | 467nm | 25 degree,20mA |
| Module |
|
| Model No. | HTS-P3.91 |
| Pitch | 3.91mm |
| Screen mode | Real Pixel |
| Physical density | 65746 Pixels per square meter |
| LED type | 3-in-1 SMD2121 black-face |
| Drive mode | constant current |
| Cabinet |
|
| Resolution | 128x128pixels |
| Width | 500mm |
| Height | 500mm |
| Depth | 60mm |
| Weight | 8.6KG/cabinet |
| Cabinet color | Black |
| Material | Die-casting aluminum |
| LED panel |
|
| Brightness | ≥5000cd per square meter |
| Flatness | Gap≤0.5mm |
| Gary scale | 65536 BIT |
| Screen color | 281 trillion |
| Scan method | 1/16 |
| Operation power | AC110V/220V, 50-60Hz |
| Max power consumption | 250W/cabinet |
| Ave power consumption | 120W/cabinet |
| Control Mode | Synchronous display with control PC by DVI |
| Screen Refresh Frequency | ≥960Hz |
| View angle | Vertical: 120°, Horizontal: 120° |
| Support Input | composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA |
| Control Distance | Ethernet cable≤120m or Fiber Optic>120m |
| Brightness Correction | pixel, module, cabinet |
| Operating humidity | 10% - 80% RH |
| Operating life | 100,000 hours |
| MTBF | 5000 Hours |
| Protection level | IP65 front, IP65 rear |
| Out of control rate | 0.02%
|
