pH16 RGB Full Color Outdoor Video Wall P16 Waterproof LED Display
| Price: |
US $ 450-600/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
| Item | Parameter |
| Model | P16 full color LED module |
| Module size | 256mm * 256mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W) * 16dots(H) |
| Max power consumption | 35W |
| Module thickness | 33mm |
| Module weight | 1KG |
| Driving method | Constant current driving |
| Scan method | Static scanning |
| Interface way | HU40 |
| Brightness | ≥7500cd/m² |
| Cabinet size | 1024mm * 1024mm |
| Power supply mode | 5V/40A 5V/60A |
| Optimal viewing distance | 10M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤800W/m² |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Product Features.1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing
the strong sunshine directly. 2. Weatherproof design, completely outdoor use.3. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray. 4. Easy for assembling and connection with the connector added. 5. High color uniformity and clear image can bring you a vivid audio visual effect.6. Both front and rear access are available. 7. Use the same level of red, green and blue led chips, which makes the image display of whole led display

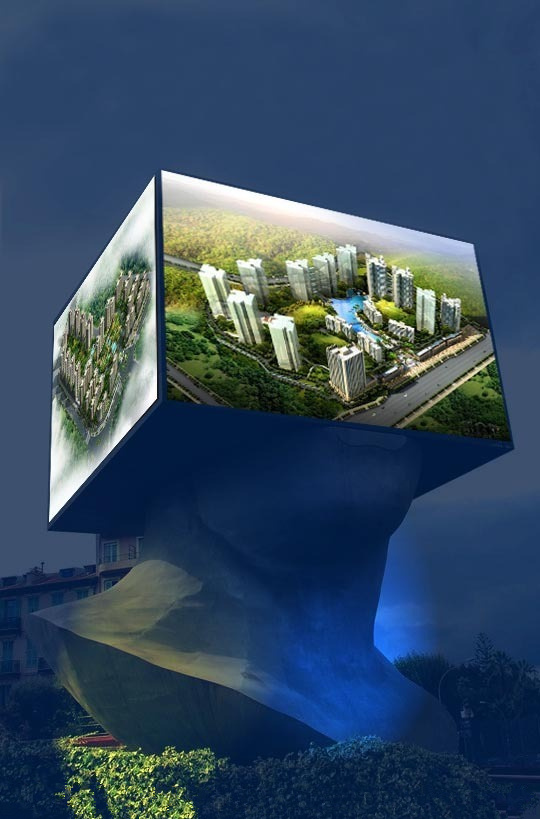

more excellent and uniform. Using range.Widely used in a variety of needs large hall, sports arena,banking, telecommunications, government agencies, terminal, pier, railway stations, the stock market and other trading market, medical systems, electric power, galleries and other publicity, advertising, information dissemination, the guide places. Certification
| Prod Model: |
PH16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery: |
10-15 Working Days After Reveived Payment |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Density: |
3906dots/M² |
