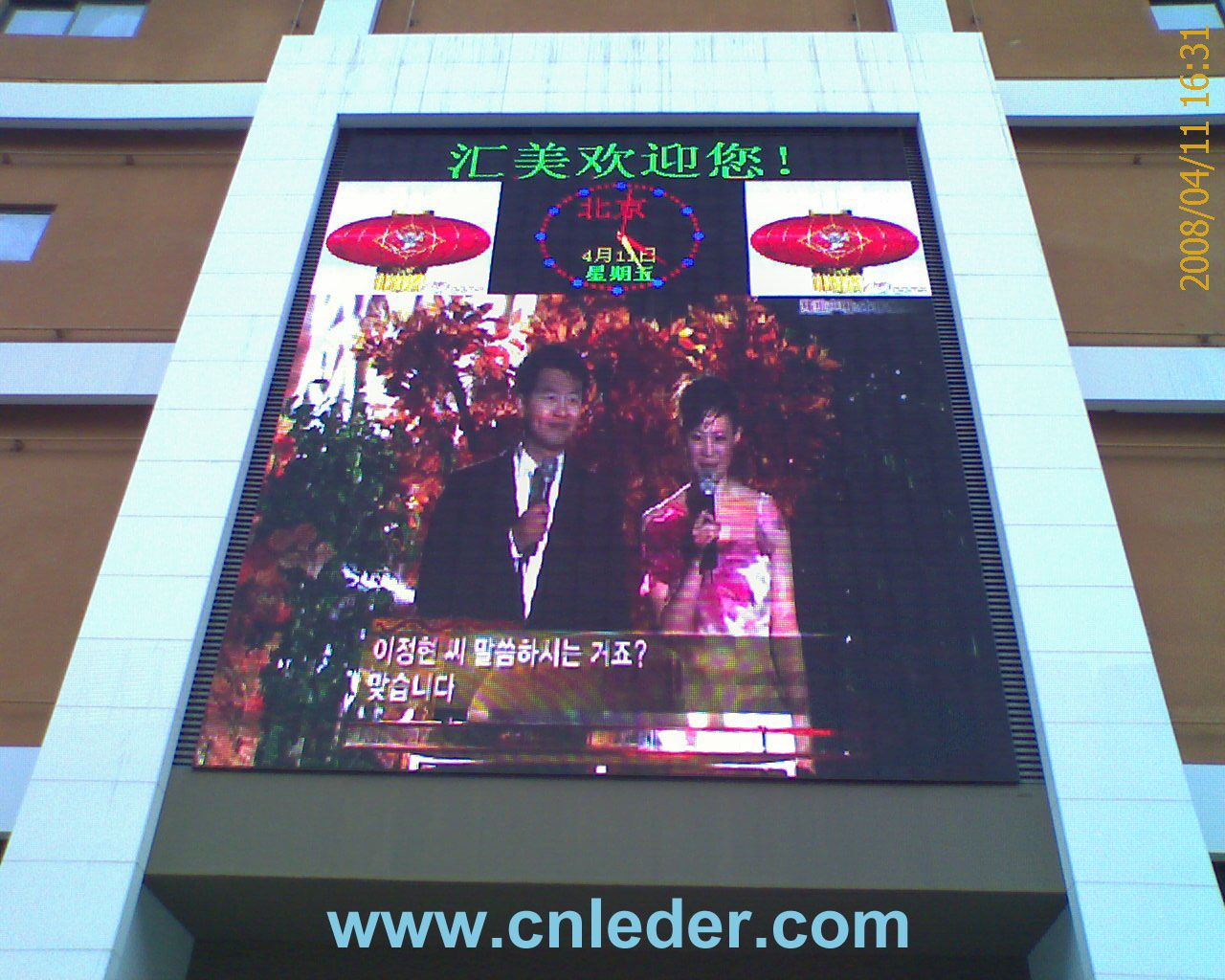

PH16 Outdoor Electronic LED Sign Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
pH16 Outdoor Electronic LED Sign Display:
Large viewing angle
High brightness
Weatherproof
Good after-sales service
|
16mm Pixel Pitch with Oval LEDs |
|
Parameter |
Unit |
Value |
|
Brightness |
nits |
6800 |
|
Colour temperature |
deg. K |
6500 |
|
Viewing angle - Horizontal(50% brightness) |
deg. |
140(+70/ -70) |
|
Viewing angle - Vertical(50% brightness) |
deg. |
60( +30 / -30) |
|
Panel weight |
kg |
52 |
|
Panel diagonal |
mm |
1450 |
|
Panel width |
mm |
1024 |
|
Panel height |
mm |
768 |
|
Panel depth(including door and louver) |
mm |
165 |
|
Panel area |
sq. m. |
0.786 |
|
Panel material |
|
Aluminum/ Steel |
|
Aspect ratio |
|
16: 9 |
|
Ingress protection |
IP |
IP66 front; IP43 back |
|
Operating temperature range |
deg. C |
-20 ~ +50 |
|
Pixel type and configuration |
R/G/B |
2, 1, 1 |
|
Pixel pitch |
mm |
16 |
|
Module size |
mm |
256× 128 |
|
Module pixel dentisy |
dots |
16× 8 |
|
Pixel matrix per panel |
dots |
64 x 32 |
|
Pixels per panel |
dots |
3072 |
|
Lines per meter |
|
63 |
|
Pixels per sq. meter |
|
3906 |
|
LED per sq. meter |
|
15624 |
|
Recommended minimum viewing distance |
m |
12 |
|
Colours |
|
4.4 Trillion |
|
Grey scale (linear) |
Levels |
16384 levels per colour |
|
Brightness control |
Levels |
95 |
|
Contrast ratio |
|
2000: 1 |
|
Processing depth |
bit |
≥ 14 |
|
Video frame rate |
Hertz |
≥ 60 |
|
Display refresh rate |
Hertz |
≥ 400 |
|
Drive type |
|
Direct |
|
Input voltage(nominal) |
VAC |
110 to 230 |
|
Input power frequency |
Hertz |
50/60 |
|
Input power (max)* |
Watts |
825 |
|
Input power (typical)* |
Watts |
335 |
|
Lifetime (50% brightness) |
Hours |
≥ 100, 000 |
|
Red wavelength(dominant) |
nm |
630 |
|
Green wavelength(dominant) |
nm |
525 |
|
Blue wavelength(dominant) |
nm |
470 |
|
Red luminance (IV) |
mcd |
620 |
|
Green luminance (IV) |
mcd |
1880 |
|
Blue luminance (IV) |
mcd |
450 |
|
Panel interconnection |
|
Serial Coaxial BNC |
|
switching power supply |
|
MW Power |
|
MTBF |
Hours |
Over 10000 hours |
|
Protection technology |
against moisture, dust, decay, static electronity, lighting, shock, and the protection fuction of over current, short circuit, over voltage and under voltage. |
| Prod Model: |
PH16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
350W / m² |
| Certification: |
CE |
| Pixel Density: |
3906 Dots/Sqm |
| IP Rating: |
IP66 |
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
