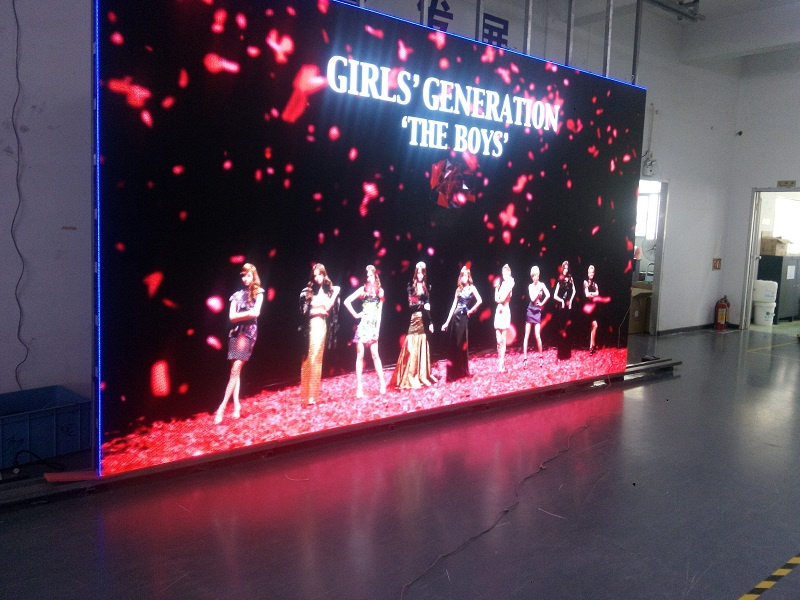

PH10 outdoor Rental LED Display with die-casting aluminium cabinet
We provide A-to-Z service LED DISPLAY systems and solutions, from initial planning, design concept, application mock up, production, installation, testing, training to maintenance. Maintaining the highest standards of design and quality, we develop tailor made solutions to each visual scenario presented to us.
Product Features
1. P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice.
2. High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance.
3. Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions.
LED Parameters
Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
Red LED | 300-500mcd | 120º/60º | 620-630nm | 25ºC,20mA |
Green LED | 1800-2200mcd | 120º/60º | 520-535nm | 25ºC,20mA |
Blue LED | 250-500mcd | 120º/60º | 465-475nm | 25ºC,20mA |
Module Parameters
Pixel Pitch | 10mm | |
Pixel Configuration | 1R1G1B |
Module Resolution | 32dots*16dots for real |
Module Pixels | 512 dots |
Module Size | 320mm*160mm |
Module Weight | 1.2KG |
Cabinet Parameters
Cabinet Size(W*H*D) | 640*640*160(mm) or customizable | |
Cabinet Resolution | 64dot*64dot for real |
Module Quantity | 8pcs |
Cabinet Pixels | 4096 dots |
Pixel Density | 10000 dot/sqm |
Avg. Power Consumption | 250W/sqm |
Max. Power Consumption | 750W/sqm |
Material | Iron or Aluminum |
Cabinet Weight | 50KG for iron cabinet; 38KG for aluminum cabinet |
Screen Parameters
Brightness | ≥7500cd/sqm |
Contrasts (Max. /Min.) | 1.1:1 |
Driving Method | 1/4 scan |
View Angle | Horizontal 120° Vertical 60° |
Optimal Viewing Distance | 10m to 100m |
Brightness Control | Red, Green and Blue 256 Grade/Each |
Fresh Frequency | ≥600Hz |
Frame Frequency | 50 - 60Hz |
Input Voltage | AC220V/50Hz or AC110V/60Hz |
Defects Rate | ≤0.00001 |
Screen Weight | ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet |
MTBF | >10,000 hours |
Life Span | ≥100,000 hours |
Brightness Uniformity | <3% |
Earth Leakage Current | <3mA |
Protective Grade | IP65 |
Temperature-operating | -40ºC~60ºC |
Humidity-operating | 10%~90% |
Operating System | Windows98/me/2000/NT/XP/win7 |
