| Price: | US $ 800/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Square Meter |
| Pay Type: | T/T,Paypal,Western Union |
| Item | Outdoor DIP LED display | |||
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
| LED Type | DIP346 | |||
| Viewing angle: | H:120°,V:60° | |||
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static | ||
| Color Depth(nits) | 16384 | |||
| Refresh Rate(Hz) | 2200 | 2800 | ||
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 | |
| Cabinet Material | Steel | |||
| Cabinet weight(kg) | 50 | 55 | 68 | |
| Voltage | 110/220V | |||
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 | |||
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH | |||
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH | |||
| Lifetime(h) | ≥50000 | |||
| Compliant Standard | CCC,CE,Rosh | |||
Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
Red LED | 300-500mcd | 120º/60º | 620-630nm | 25ºC,20mA | |
Green LED | 1800-2200mcd | 120º/60º | 520-535nm | 25ºC,20mA | |
Blue LED | 250-500mcd | 120º/60º | 465-475nm | 25ºC,20mA |

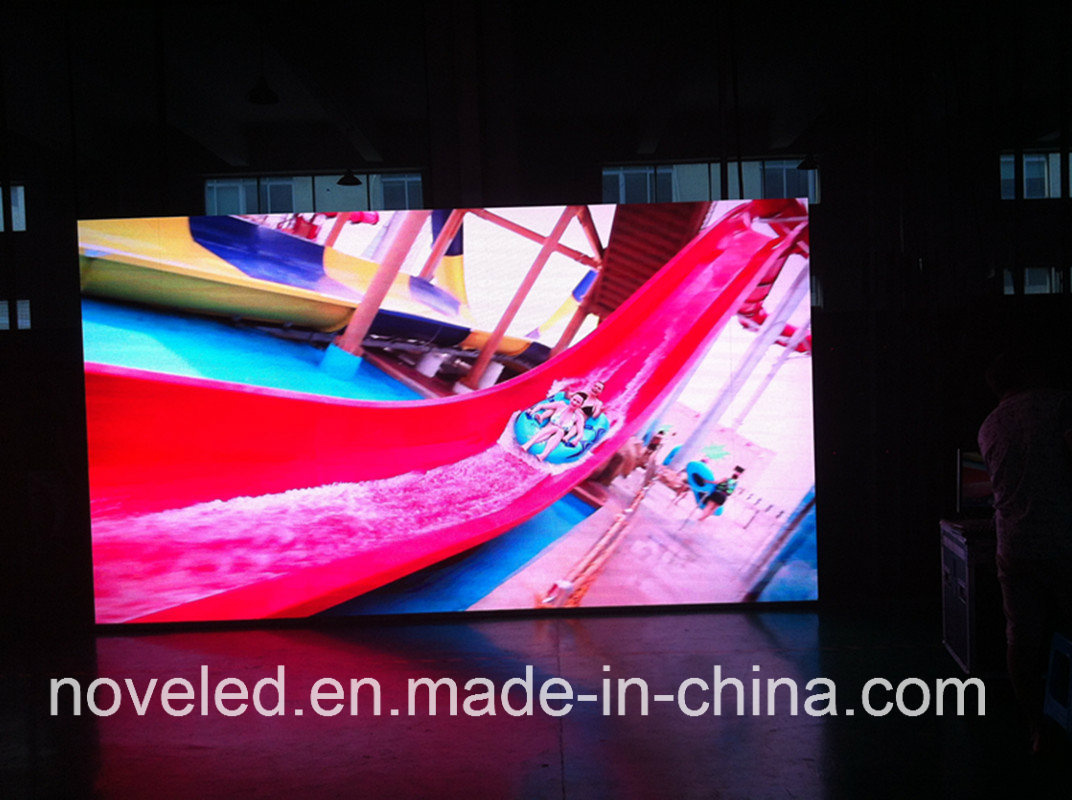

P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice. |
High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance. |
Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions. |
| Prod Model: | PH10 RGB outdoor led display |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 160mm*160mm |
| Standard Cabinet Size: | 960mm*960mm |
| Brightness: | More Than 6500CD |
| Cabinet Material: | Steel |
| Packed Material: | Wooden Case or Flight Case |
| Warranty: | 2 Years |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Certification: | CCC |
| Pixel Pitch: | 10mm |
| Display Function: | Video Display |
| Application: | Advertising |
| Scanning Mode: | 1/4 Scan |
| Pixel Density: | 10000 dot / m² |
| Average Power Consumption: | 220W / m² |
