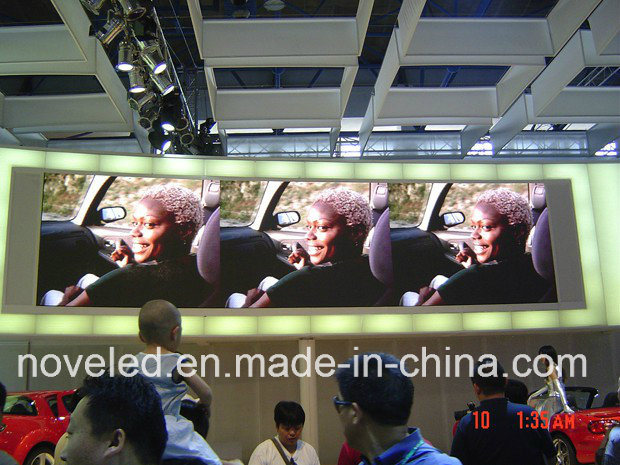

pH10 Indoor LED Display
| Price: |
US $ 700/Square Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Paypal,Western Union |
Product Features
| OIC's indoor LED signs are an ideal solution for your indoor entertainment needs. The SMD based on LED signs have tighter pitch sizes, making it ideal for use indoors. The SMD based LED signs are composed of bowl-shaped compartments that contain 3 colored LED lamps, making up one pixel. The SMD design allows for all three colors to be placed into one small package chamber, and then color could be mixed inside of the package, improving the quality of the displayed image, while allowing for a higher blending of colors. The SMD LED signs consume much less energy, while being lighter than your ordinary LED signs. |
| The SMD model consists of 3mm, 4mm, 5mm, 6mm, 7.62mm, or 10mm pitches. The different pitches will allow for a sharper image quality or a longer range of visibility. 3mm, the tightest pitch of OIC's indoor SMDs, will be the highest of quality, while the 6 and 7.62mm pitches will mix to have excellent quality and visibility range. The 10mm would provide the longest range of visibility amongst the various pitches. Choosing the correct pitch will ultimately determine the effectiveness of the SMD indoor LED signs. |
LED Parameters
| Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition |
|
| Red LED | 150-200mcd | 120º/120º | 620-630nm | 25ºC,20mA |
| Green LED | 260-330mcd | 120º/120º | 520-535nm | 25ºC,20mA |
| Blue LED | 55-65mcd | 120º/120º | 465-475nm | 25ºC,20mA |
Module Parameters
| Pixel Pitch | 10mm |
|
| Pixel Configuration | 1R1G1B SMD 3in1 |
| Module Resolution | 32dots*16dots for real |
| Module Pixels | 1024 dots |
| Module Size | 320mm*160mm |
| Module Weight | 0.6KG |
Cabinet Parameters
| Cabinet Size(W*H*D) | 960*960*160(mm) |
|
| Cabinet Resolution | 96dot*96dot for real |
| Module Quantity | 18pcs |
| Cabinet Pixels | 16384 dots |
| Pixel Density | 9216 dot/sqm |
| Avg. Power Consumption | 280W/sqm |
| Max. Power Consumption | 850W/sqm |
| Material | Iron or Aluminum |
| Cabinet Weight | 38KGfor iron cabinet;
29KG for aluminum cabinet |
Screen Parameters
| Brightness | ≥1500cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/8 Scan, Constant Current |
| View Angle | Horizontal 120° Vertical 120° |
| Optimal Viewing Distance | 10m to 100m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥600Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <3% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP45 |
| Temperature-operating | -40ºC~60ºC |
| Humidity-operating | 10%~90% |
| Operating System | Windows98/me/2000/NT/XP/win7 |
| Prod Model: |
PH10 SMD indoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320mm*160mm |
| Cabinet Size: |
960*960*160(Mm) |
| Cabinet Material: |
Iron or Aluminum |
| Brightness: |
≥1500CD/Sqm |
| Warranty: |
2 Years |
| Cabinet Weight: |
38kgfor Iron,29kg for Aluminum |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
