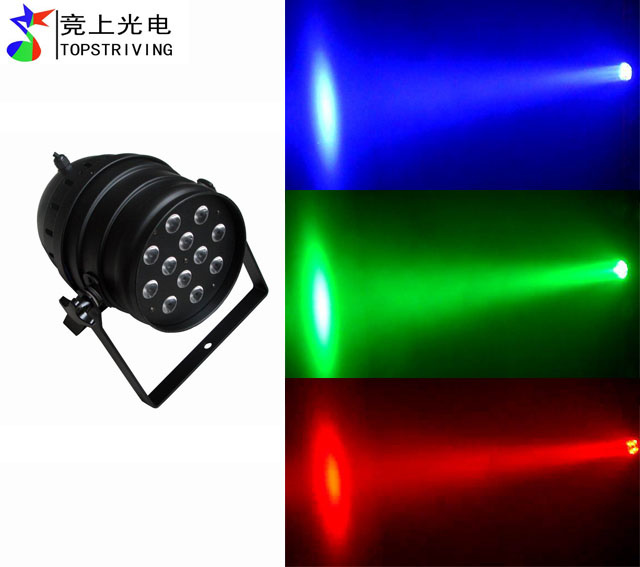

12* 3 in 1 9W RGB LED PAR light stage light high consumption PAR RGB 12
Specification
1. Electronic power supply AC 90-240V 50/60Hz
2. Dimensions: 300*270*240mm
3. Weight: 5.0 kgs
Light source
Black housing with 12 PCS four in one RGB 9W high MCD LEDs
TECHNICAL SPECIFICATIONS
Power supply: 90-240V AC 50/60Hz
Power consumption: 120W
DMX-control-channels: 9
DMX-512-connection: 3-pin XLR
Number of LED: 12 high MCD 3 in 1 9W RGB LEDs
25° Beam angle
Dimensions: 310X270X230mm
Weight: 3.5 kgs
Please note: Every information is subject to change without prior notice.
DMX control:
DMX channel: 9CH
DMX 512 connection: Linkable via 3-pin XLR cables
channel |
value |
function |
1 |
1-255 |
Red from small to big brightness ( dimming ) |
2 |
1-255 |
green from small to big brightness ( dimming ) |
3 |
1-255 |
blue from small to big brightness ( dimming ) |
4 |
1-255 |
blue from small to big brightness ( dimming ) |
5 |
1-255 |
Master dimmer from small to full brightness |
6 |
1-255 |
Strobe from slow to fast
|
7 |
0-30
31-255 |
Dimmer, color, macro
Dimmer on at ch 1/ch 2/ch 3/ch 4
Color macro, the brightness can be adjusted by the master dimmer at ch 4
|
8 |
0-85
86-169
170-255 |
Dimmer, increasing brightness, then decreasing brightness, color following one by one
Dimmer on at ch 1/ ch2/ ch3/ ch4
Increasing brightness, then decreasing brightness , the running speed can be
adjusted by ch 8
Color following one by one, the running speed can be adjusted by ch8
|
9 |
1-255 |
Running speed adjustements
When ch 7 at 86-169 or at 170-255, the speed adjustment works |
