Product Description

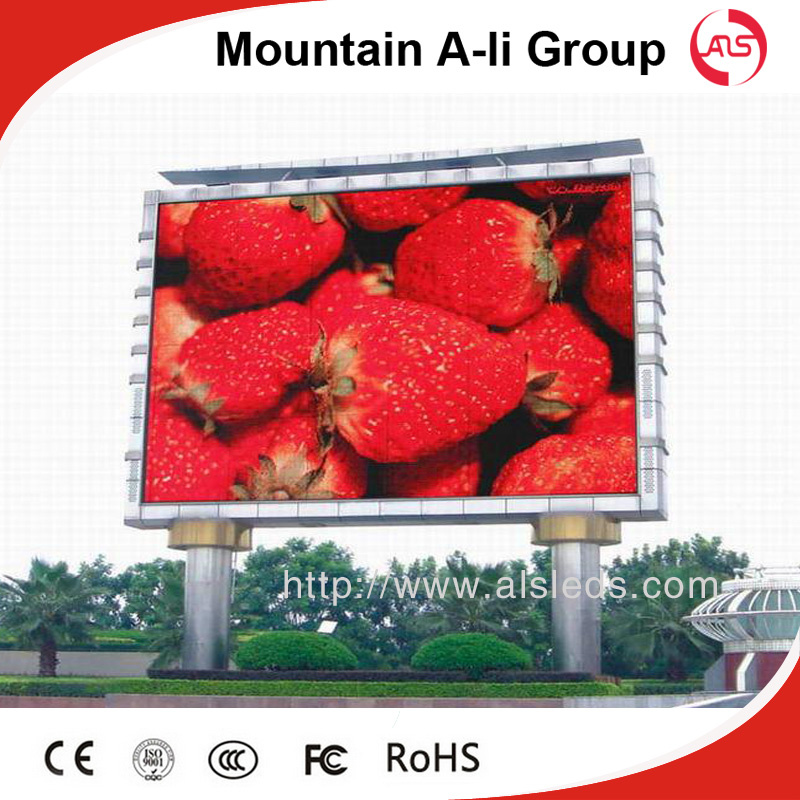

P8 Waterproof SMD Outdoor LED Display
1. Widely application field and short ROI time. Commercial advertising LED display screen, Stadium perimeter LED display screen, mobile trailer LED display, LED screen for mobile media, shopping mall LED display, screen for logo showing, LED display for bank or stock exchange rate showing, LED moving sign for train and bus station, LED display screen for air port, elecommunication LED display screen for information showing and instruction and ect.
2. Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more audience to get short ROI of your LED display screen's investment.
3. Long term brightness. More than 6000 nits brightness for outdoor full color LED display, more than 800 nits brightness for indoor full color LED display capacity throught products lifetime of LED display screen.
4. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the LED display screen system.
5:Low energy consumption ,long lifespan , less maintenance performance ./ No color difference , concentrating well, good veiwing angle .
6:Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
7:High brightness , high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .
8:Simply installation , easy to maintain ,easy to use .
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days
Parameter
The specifications of modules | |
|
Items | Parameter | |
Product Model | P8 Outdoor SMD LED Display | |
Module size | 320mm*160mm/256mm*128mm | |
Pixel pitch | 8mm | |
Pixel density | 15625dots/m2 | |
Pixel configuration | 1R1G1B | |
Module resolution | 40dots(W)*20dots/32dots(W)*16dots(H) | |
Module maximum power consumption | 25W | |
Module Thickness | 2.8CM | |
Module Weight | 0.55kg | |
Driving method | Constant Current Driving | |
Scanning method | 1/5scan / 1/4scan | |
Interface | HUB75B | |
Brightness | ≥6200cd/m2 / ≥6500cd/m2 | |
The specifications of cabinets | |
|
Cabinet size | 640mm*640mm | |
Module quantity | 8pcs | |
Power supply | 5V/40A 5V/60A | |
Cabinet resolution | 80*80dots | |
Optimal viewing distance | 8M~50M | |
Optimal viewing angle | 160°(W) 120°(H) | |
RHWorking temperature | (Work :-20°C~+60°C) | |
System operating humility | 10%-95% | |
The specifications of power supplier | |
|
Operating Voltage | AC220V±10% | |
Average power consumption | 400W/H | |
Maximum power consumption | ≤800W/m2 | |
Electric current | ≤20mA(single LED) | |
The specifications of control card | |
Control Panels | Pentium4 or above | |
Operating system | WIN98/2000/NT/XP | |
Control model | Synchronization with PC | |
The specifications of the main technical parameters | |
|
Driving device | Constant Current Driving | |
Refresh rate | ≥600HZ | |
Grey scale | RGB Each 256, can display 16.7M colors) | |
MTBF | ≥9000hours | |
Power switch | Automatic Switch | |
Display Mode | 800*600/1024*768/1280*900 | |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
