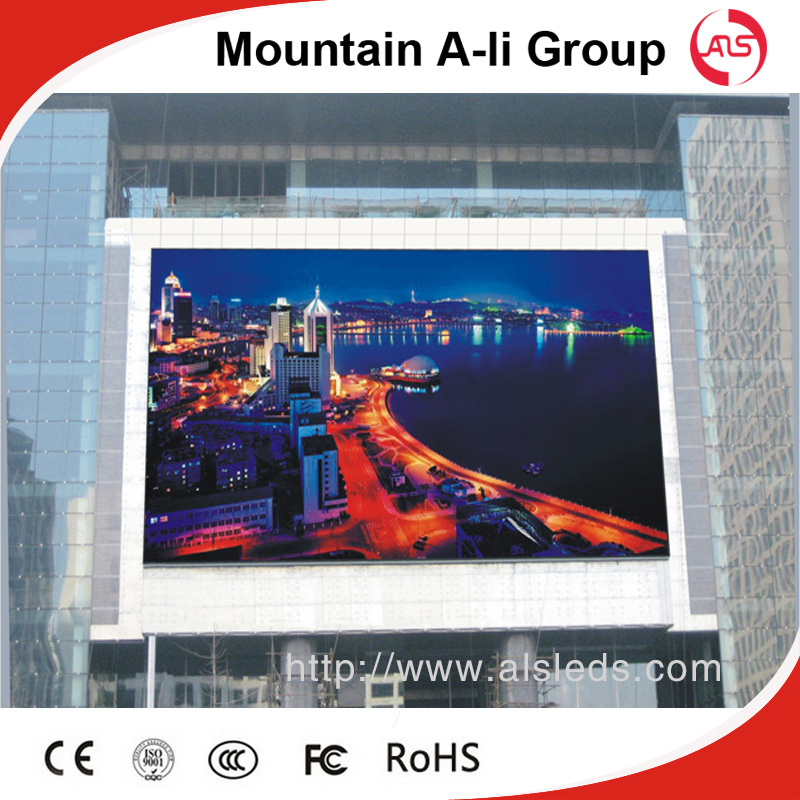

P6 SMD Outdoor FullColor LED Display Screen for Advertising
What are the advantages of our LED display?
1. Low energy consumption,high brightness (brightness can be customized)
2. Low fault rate,long lifespan (2 more years lifespan)
3. No color difference,large viewing angle (Horizontal 160°, Vertical 120°)
4. Optimal design,high-precision seamless,accurate to 0.1mm gap
5. Ultra-high refresh rate,can support video shooting,clear picture quality assurance
6. Quick and easy assembly,removing system,short loading time
7. Wide range of application
What about our Products list ?
1. P2/P2.5/P3/P3.91/P4/P4.81/P5/P6/P7.62/P10 Indoor Full Color Led Display;
2. P6/P7/P8 /P10/P12/P13.33/P16/P20 Outdoor Full Color Led Screen
Why choose our LED display?
1.Experience advantage: more than 15 years manufacturing experience, powerful factory!
2.Price advantage: Factory Outlet,No.1 cost effective
3.Quality advantage: superior LED led lamp from our own factory,serious QC control system,best material(passed ISO 9001,CE,RoHS,IP65 waterproof certification...)
4.Service advantage: after service dept& Tech Dept. 1-3 years guarantee period.
What are the LED display specifications?
The Technical Parameters of Outdoor led video screen
Item | Parameters |
| Product model | P6 SMD module |
| Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | smd 3in1 |
| Module resolution | 32dots(W)*32dots(H) |
| Maximum power consumption | 35W |
| Module thickness | 27mm |
| Module weight | 0.4kg |
| Driving method | Constant current driving |
| Scan mode | 1/8 scan |
| Interface type | HUB75-B |
| Brightness | ≥6500cd/m2 |
| Cabinet size | 768mm*768mm |
| Module quantity | 16pcs |
| Power supply | 5V/40A |
| Cabinet resolution | 128*128dots |
| Optimal viewing distance | 7m~50m |
| Optimal viewing angle | 160°(W) 120°(H) |
| Temperature | Storage:-35ºC~+85ºC
Working:-20ºC~+50ºC |
| System operating humility | 10%-95% |
| Operating voltage | AC220V±10% |
| Average power consumption | 270W/ |
| Maximum power consumption | ≤810W/ |
| Current | ≤20mA(single LED) |
The specifications of control system
|
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| Driving device | Constant current driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768 |
What are the LED display features?
1. High-quality Components
a. LED lamps: High brightness LED lamps with wide viewing range and low driving current, consuming less power.
b. Driving IC: High-precision constant current LED driving ICs with current gain control; the light decay can be controlled to maintain a stable brightness.
c. Power supply: With PFC (Power Factor Correction) functions to improve the efficiency of power supply produce less heat, and save energy.
d. Optical fiber: Shortening signal delay caused by long distance transmission.
2. Advanced Control Technology
e. Calibration: Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED display.
f. Monitoring: Proprietary control system can monitor the temperature, brightness, status information of LED display in real time.
g. Remote network control: Controlling and changing all display information, controlling the displays of several cities in one place to change the contents at any time.
h. Adjustable brightness: Adjusting screen brightness automatically according to environmental lighting based on sensitive control system, adjusting it manually or by programmable menu.
i. Large screen control: Controlling super large size display stably without any black screen, frame vibration or reducing.
j. High refresh rate, high gray scale and high contrast ratio: More realistic pictures optimize commercial advertisement value.
3. Effective Solution
k. Energy saving: Adopting the techniques of LED lamps with low driving current, adjustable brightness, efficient power supply with PFC, less heat dissipation, special cooling design, and appropriate power distribution from control system.
l. Cooling design: With special designs of separate driving ICs and LED lamps on the PCB, thermal radiator, air flow, ventilation and air conditioning, display could keep working in an appropriate temperature.
m. Long life span: Benefiting from the techniques of energy saving design, high quality LED lamps, effective cooling design, adjustable brightness, all-round protection, and efficient power supply with PFC.
n. Protection: Outdoor IP65 standard cabinets to protect LED display in extreme weathers; famous brand anti-lightning device to avoid lightning shock; the protective layer of our special conformal coating on PCB board to resist hostile environment.
What are the cases of our LED display?
What is the trade terms of our LED display?
1. Trade terms:EXW,FOB,CIF,etc.
2. Payment terms: 30% deposit,balance before shipping
3. Payment methods:T/T,West Union, MoneyGram,
4. MOQ:1(1 square meter)
5. Delivery:7-15days after deposit.
6. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
What is the packaging and shipping?
1. Packaging
We provide plywood wooden box packaging and Air box packaging.Customers can freely choose box and packaging way.But in any case, we will both ensure the use of appropriate packaging to protect the safety of the goods.
2. Transportation
Customers can freely choose box also the shipping way, by air, by sea or by train. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.
3. After-sales service
We offer a 1-3 year warranty service according different order, and to provide free technical guidance. We have a professional service team; they are always online waiting to serve you. During the warranty period, all damaged parts could be replaced free of charge.
What about Our Sales Team?
With a rich experience of more than 16 years,Mountain A-Li has developed a professional sales team of 30.Including 15 sales engineers with bachelor's degree that can provide the most optimal customized LED display solutions according to your various requirements.
How to get a quotation and details?
Our experienced sales engineer will provide professional display solutions according to your requirement.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
