Products List:
Outdoor DIP LED Display, P6 / P8 / P10 / P13.33 / P16 / P20 etc.
Outdoor SMD LED Display, P5 / P6 / P8 / P10.
Indoor SMD LED Display, P2 / P3 / P3.91 / P4 / P4.81 / P5 / P6 / P7.62 / P10.
P8 SMD Outdoor LED Module Technical Parameters
| Item | Parameter |
| Model | P8 full color LED module |
| Module size | 256mm * 128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m² |
| Pixel configuration | 1R1G1B 3in1 |
| Module resolution | 32dots(W) * 16dots(H) |
| Max power consumption | 25W |
| Module thickness | 28mm |
| Module weight | 0.55KG |
| Driving method | Constant current driving |
| Scan method | 1/4 scan |
| Interface way | HUB75B |
| Brightness | ≥6500cd/m² |
| Cabinet size | 640mm * 640mm |
| Power supply mode | 5V/40A 5V/60A |
| Optimal viewing distance | 8M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 400W/H |
| Max power consumption | ≤800W/m² |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Features:
1. With good lightening accordance and no mosaic.
2. Led advertising board can play different formats of image files, flash, WAV/MIDI,
video signal from TV, video signal from video and other equipment.
3. Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment.
Applications:

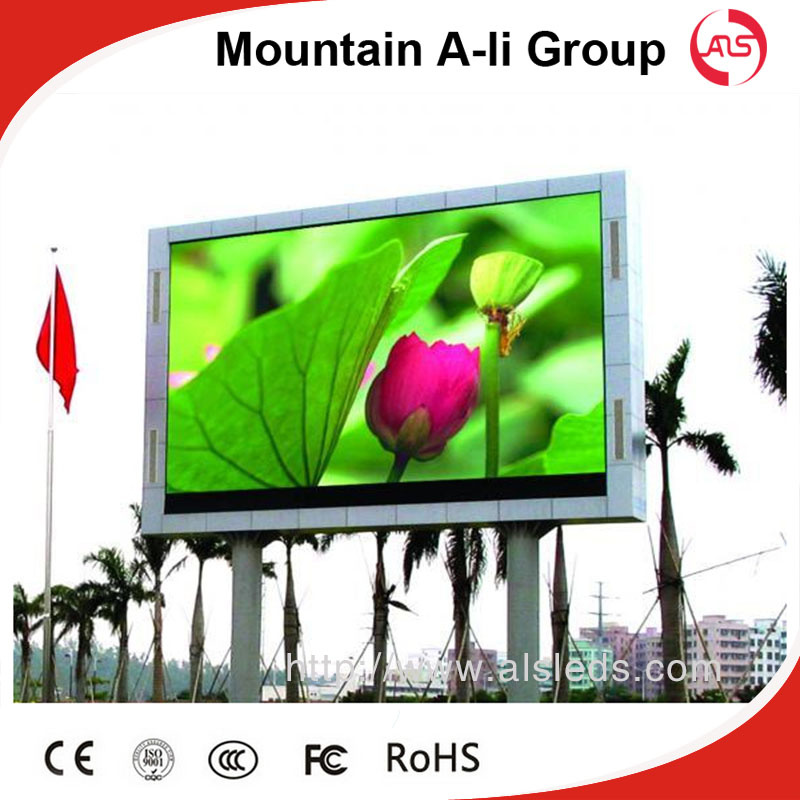

Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
Our service:
1. Any inquiry or complaint will be replied within 24hrs.
2. Providing competitive products and sales consultation.
3. Any your customized product or idea we can help you to design and put into product.
4. Two years quality guarantee, only needs to anew purchase the raw material when over the warranty period.
5. Protection of your sales area, ideas of design and all your private information.
6.Years of production experience we can very good to control the quality of the product, OEM and ODM accepted.
Trade Terms
1.Payment term: T/T 30% deposit before production,the balance before delivery.
2.Packing: Anti-shaking wooden cabinet /Air flight case/carton
3.Shipping port: Shenzhen. China
4.Shipping freights are quoted according to your requests
5.Delivery:10-20 working days after deposit.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
