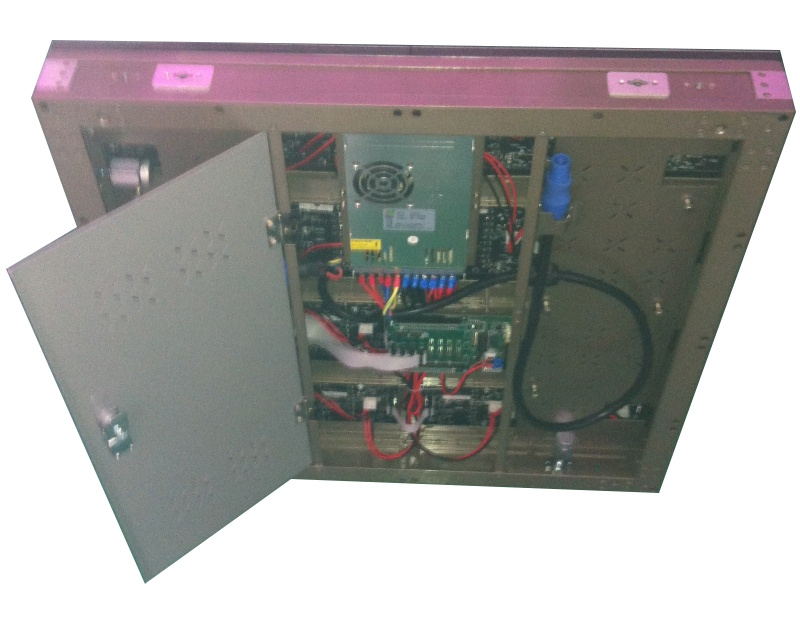

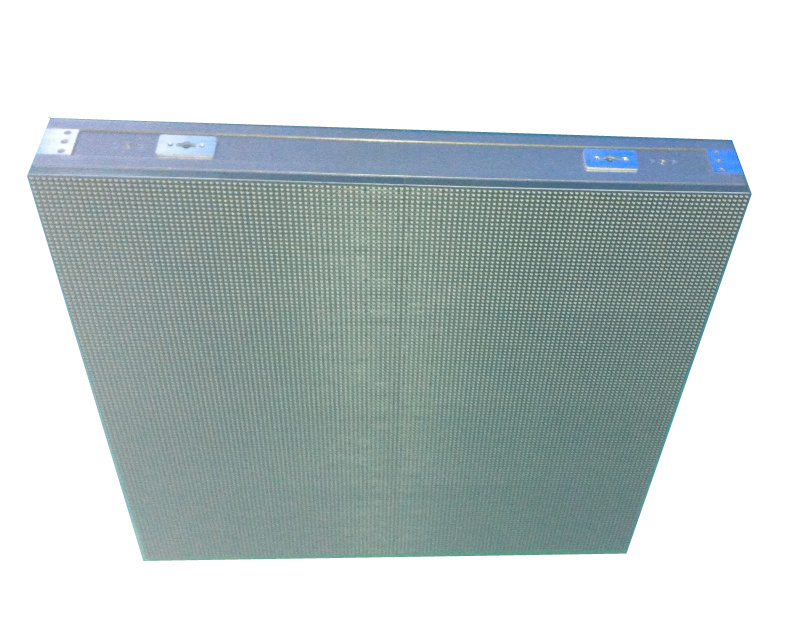

P7.62 indoor full color LED display. Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4)Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Basic information:
Pixel configuration: One red, one pure green, and one pure blue
Pixel pitch: 7.62 mm
Environment: Indoor
Resolution: 17222 dots/m2
Display brightness: > 1, 500CD/m2
Module size :244*122 mm
Viewing angle(H/V) :
H:110º V:50º Brightness adjustment: 256 manual and eight automatic grades
Viewing angle: > 140 degree (left and right viewing angle)
Viewing distance: 4 to 100m
Grey scale: Monochrome 12 bits
Display color: 36 bits
Exchange frame speed: > 60fps
Refresh frame frequency: 360Hz
Screen body power consumption:
Maximum :900W/m2
Average: 380W/m2
Control distance: 120m (without relay)
MTBF: > 100, 000 hours
Operating platform: Windows 2000, XP, and Vista OS
Working temperature: -20 to +60 degree Celsius
Working humidity: 10 to 95% RH.

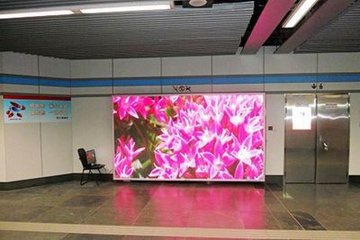

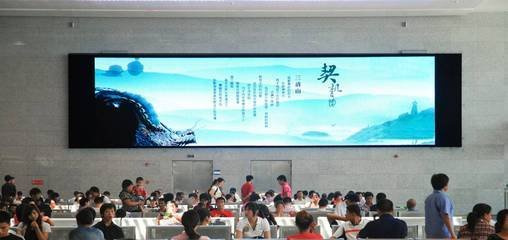

Markets of P7.62 Indoor Rental Full Color LED Display:
Indoor Rental Full Color LED Display can be used in public squares,air ports, stations ,stadium,traffic,wharf,stage,bank,hotel,club,entertainment,wedding,party and so on.
It is easy to install and dismantle for rental ,and there is two-year guarantee for customers beacause our products have good quality.
Our Services for Customers:
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful &win
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
