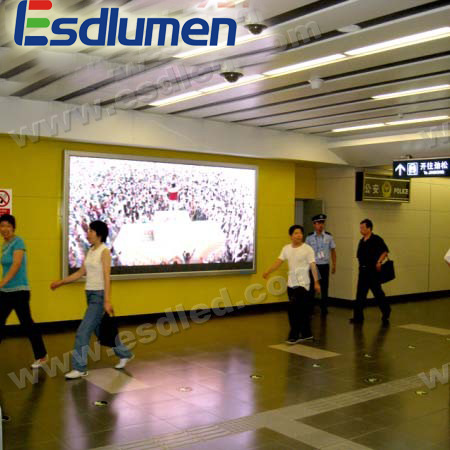

P7.62 Indoor fullcolor advertising LED display screen LED video display features:
Quiet fan design, excellent heat dissipation, noiseless, the preference for indoor use.
Concealed quick lock between the cabinets horizontally, just one switch, then all set.
Crane padlock vertically connected, convenient for installation.
High polymer flexible mask, no dazzle, better contrast ratio.
High-performance metal plate cabinet, concise cable.
The sealed type back cover, effectively prevent the wrong operation of the amateur.
|
Item |
Parameters |
|
MODULES |
model |
ESD-IA7.62S |
|
Pixel Pitch(MM) |
7.62 |
|
Physical Density(dot/M2) |
17, 222 |
|
LED Arrangment |
1R1G1B |
|
LED Type |
SMD3528 |
|
Module Size(MM*MM) |
244*122 |
|
Module Resolution(PX*PX) |
32*16 |
|
Module Power Comsumption(W) |
25 |
|
main technical parameters |
Drive Mode |
Constant Current Drive |
|
Scan Mode |
1/8 |
|
Horizontal Viewing Angle(Deg) |
140 |
|
Vertical Viewing Angle(Deg) |
140 |
|
Brightness(CD/M2) |
2200 |
|
Grey Scale |
> 4096 |
|
Refresh Rate(HZ) |
> 600 |
|
Cabinet Resolution |
128*128 |
|
Cabinet Max Power Consumption(W) |
800 |
|
Cabinet Average Power Consumption(W) |
320 |
|
Cabinet Size(MM*MM) |
975*975 |
|
Cabinet Thickness(MM) |
120 |
|
Cabinet Material |
Steel/ALU |
|
Color(M) |
> 16.7 |
|
Input Voltage |
AC 110V~220V+/-10% |
|
Refresh Frame Frequency(Hz) |
60 |
|
Protection Level |
IP43 |
|
Working Environment |
Indoor |
|
Working Temperature(Celsius degree) |
-20~+40 |
|
Storage Temperature(RH) |
10%-90% |
|
Life Span(H) |
100000 |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
