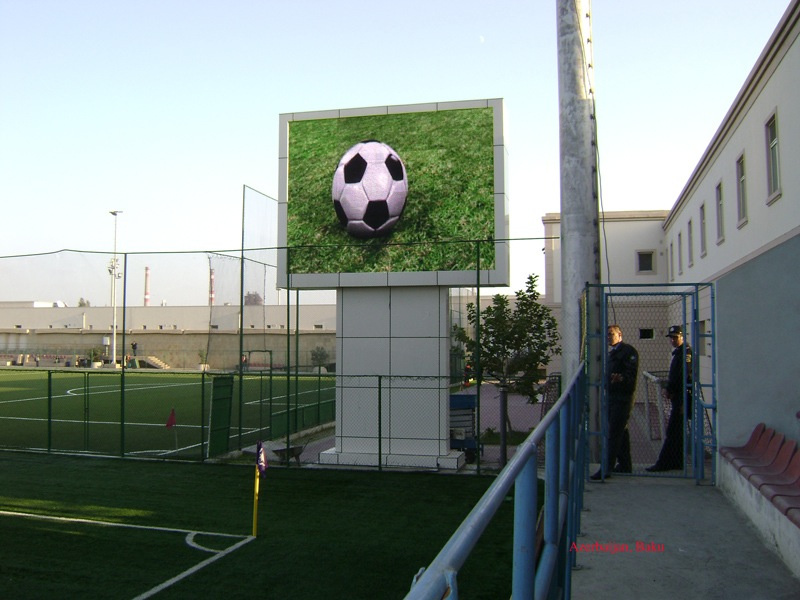

Rock Series P6.67 outdoor rental advertising LED display screen Features:
The Outdoor LED display cabinet is only 12.5kg and the thickness is only 110mm, light and small, save transport cost and reduce labor intensity of workers substantially.
Using quick rim lock to connect up and down cabinets, can hanging 15PC cabinets in one time at most, easy to achieve a large screen.
Using quick rim lock to connect left-right cabinets, positioning precisely, needs only 10s to install the whole cabinet, it is the first choice for rental screens.
Macromolecule flexibility mask, surface without glare, better contrast ratio. It can be taken out from the screen directly to make the products maintenance in one step.
Nanotechnology and unique positioning system applied in the module, make the install and dismantle in one step.
Signal, power indicator light and reset button can show well the working condition of the whole screen and repair quickly.
All the outside cable use the rapid inserted plug for the connection, easy and quick for installing and maintenance.
Handle is designed on the pull aluminum material at the side, this can make the move more convenient, quick and comfortable. At the same time the cabinet will be more concise and lighter.
Using silica gel to make the cabinet waterproof and sealed, the protection level can reach IP65.
|
I tem |
Parameters |
|
MODULES |
model |
ESD-OE6.67S |
|
Pixel Pitch(MM) |
6.67 |
|
Physical Density(dot/M2) |
22, 477 |
|
LED Arrangment |
1R1G1B |
|
LED Type |
SDM3535 |
|
Module Size(MM*MM) |
320*320 |
|
Module Resolution(PX*PX) |
48*48 |
|
Module Power Comsumption(W) |
70 |
|
main technical parameters |
Drive Mode |
Constant Current Drive |
|
Scan Mode |
1/6 |
|
Horizontal Viewing Angle(Deg) |
140 |
|
Vertical Viewing Angle(Deg) |
140 |
|
Brightness(CD/M2) |
4500 |
|
Grey Scale |
> 4096 |
|
Refresh Rate(HZ) |
> 800 |
|
Cabinet Resolution |
96*96 |
|
Cabinet Max Power Consumption(W) |
300 |
|
Cabinet Average Power Consumption(W) |
120 |
|
Cabinet Size(MM*MM) |
640*640 |
|
Cabinet Weight(KG) |
13 |
|
Cabinet Thickness(MM) |
88 |
|
Cabinet Material |
A LU |
|
Color(M) |
> 16.7 |
|
Input Voltage |
AC 110V~220V+/-10% |
|
Refresh Frame Frequency(Hz) |
60 |
|
Protection Level |
IP65 |
|
Working Environment |
O utdoor |
|
Working Temperature(° C) |
- 20~+40 |
|
Storage Temperature(RH) |
1 0%-90% |
|
Life Span(H) |
100, 000 |
|
Vertical Hanging Quantity |
/ |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
