Product description:

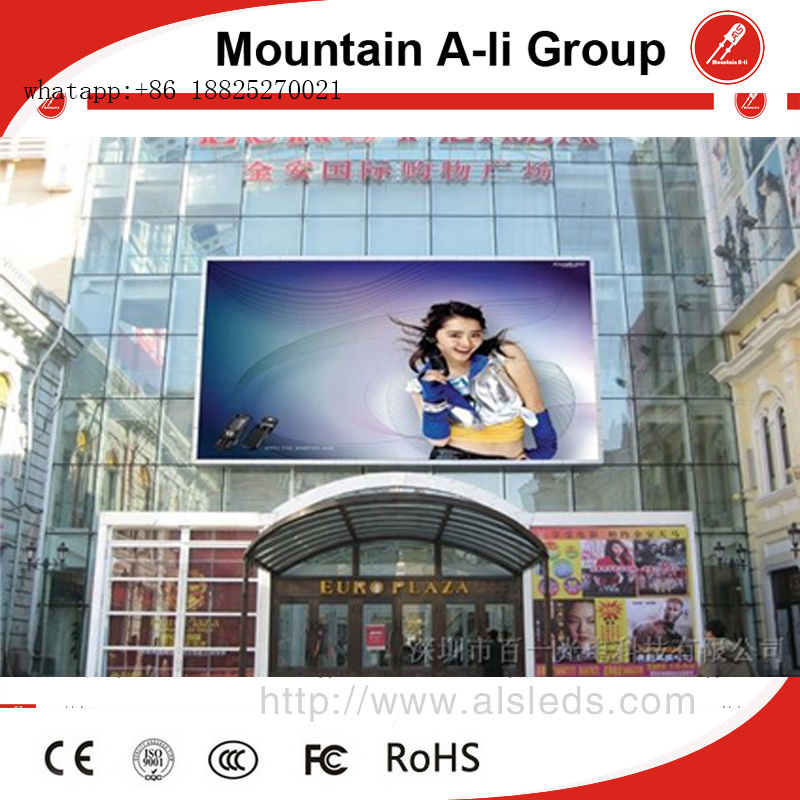

The configuration of P6 outdoor surface mounted module led display is 1R1G1B. The gap can be controled less than 02mm,cabinet installation just 20 seconds. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light, color can be customized.
2.Full magnesium desigh,cooling well,no fans,no noise.
3.High precision.
4.Fast disassembly module just 10seconds.
5.Convenient replacement and maintenance.
6.Durable cabinet structure.
7.Well waterproof,well dust proof.
Product Parameter
| Item | Parameter |
Unit Module | Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3535White LEDS |
| Pixel resolution | 32dots(W)*32dots(H) |
| Max power consumption | 35W |
| Module thinkness | 2.7cm |
| Weight | 0.4kg |
| Drive type | constant current driving |
| Scan mode | 1/8 scan |
| Port type | HUB75-B |
| Brightness of white balance | ≥6000cd/m² |
|
|
|
Unit Module | Cabinet size | 768mm*768mm |
| Cabinet composing | 16pcs |
| Power supply module | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Best viewing distance | 5m~50m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | storage:-35ºC~+85ºC working:-20ºC~+50ºC |
| Relative humidity | 10%~95% |
| Thickness | 85mm |
|
|
|
Power | Working voltage | AC220±10% |
| Average power consumption | ≤350W/H |
| Max power consumption | ≤ 560W/ h |
| Current | ≤20mA(single LED) |
|
|
|
Control system | CPU | pentiuma or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
|
|
|
Main technical parameter | Driving device | constant current driver IC |
| Refresh frequency | ≥600HZ |
| Grey scale/colors | RGB each 256 grade,can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display module | 800*600/1024*768/1280*900 |
