Product Description
Feature and Advantage
1. Waterproof: IP68front, IP65back
2. Best viewing distance: 15-300m
3. White balance brightness: 8000CD/sqm adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. Life span: More than 100, 000hours
7. Contrast ratio: 4000: 1
8. Pconsumption: 400W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private information
Trade Terms
1. Package: Wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits, 60% balance before delivery 3. Shipping port: Shenzhen
4. Warranty time: 1years
5. Delivery time:
Sample order, 3working days;
10sqm-50sqm, 8-18working days;
50sqm-100sqm, 25-28working days;
Description | Technical parameter |
| Unit module | Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 32dots*H: 32dots |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 25pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 6m-110m |
| Temperature | Storage: -40degree~+80degree |
| Working: -20degree~+80degree |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 600-1100W/m2 |
| Max. Power consumption | ≤ 560W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/8 scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 5500cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |

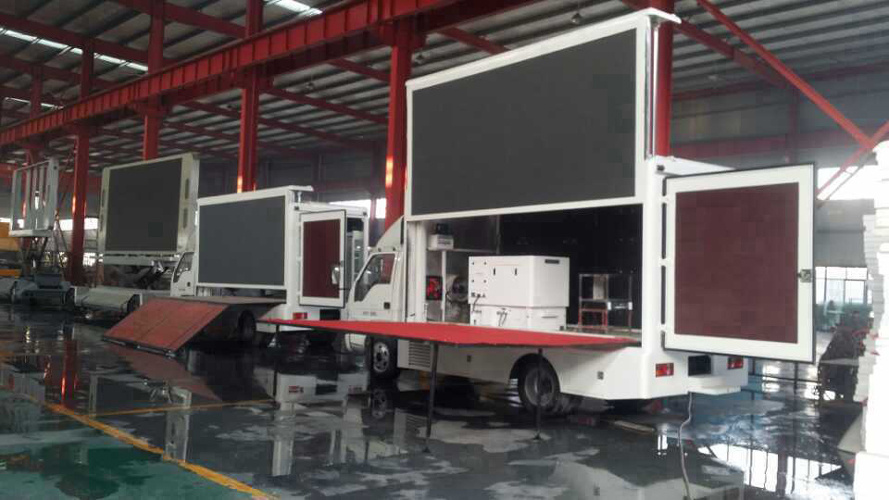

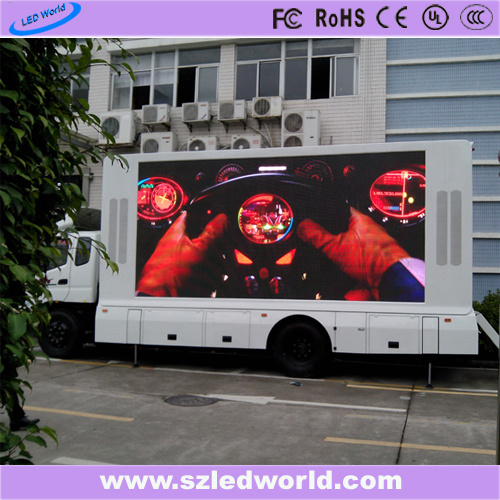

Project:

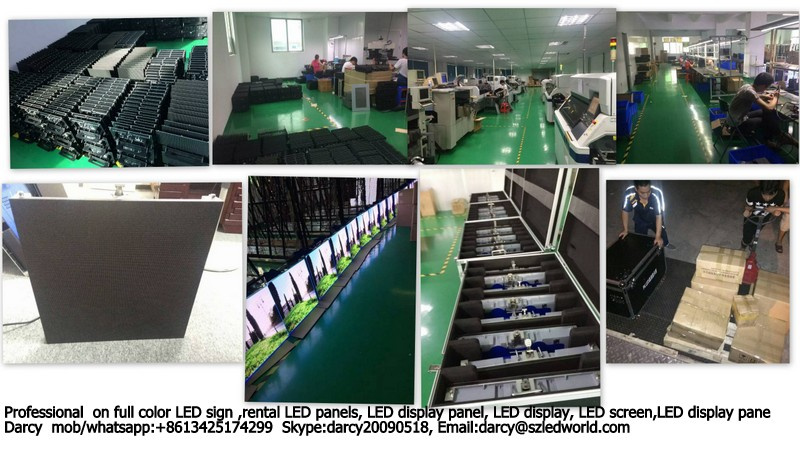

Workshop:
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.
LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.
Warmly welcome you visit our company to innovate and win glory together.
