Home LED Light Products P10 Full Color Outdoor LED Screen/LED Billboard/LED Display

P10 Full Color Outdoor LED Screen/LED Billboard/LED Display

P10 Full Color Outdoor LED Screen/LED Billboard/LED Display
Price: US $ 550-750/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
P10 Outdoor LED Screen  detail specification:
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.


Display and control feature
          Structure feature
Pixel Pitch10 mmModule size160 mm*160 mm
Pixel composing1R1G1BDisplay resolution/module16 dots*16 dots
Wavelength  (R)625±5Standard cabinet size960mm*960 mm
Wavelength  (G)522±3Weight per sqm56Kg/sqm
Wavelength  (B)470±5Protection classification0
Wave Angle  (H)110°(H)/ 60°Install modeWallmount, hung and stand structure
LED packageDIP346

Density10000         Working power
Display color256*256*256SpecificationParameter
Whiteness brightness≥7500cdWorking voltageAC 220v/380v±10%  47~64Hz
Brightness level128 gradeMax power/sqm1000W/sqm
Changing frame frequency60 HzAverage power/sqm500W/sqm
Refresh400 HzShort circuit protectionYes
Driving methodConstant Static current

Control modesynchronousWorking environment
Display portDVISpecificationParameter
Display mode1024*768 /1024*1024EnvironmentOutdoor
Out of control1/10,000 ( scattered)Working temperature--20~50c
lifetime100,000 hoursWorking Humidity10~90%

P10  Full color outdoor  LED Display   for fix installation:

Product detail:


Prod Model: LW-FO 10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: More Than 7500CD/M2
Mini Order: 1 Sqm

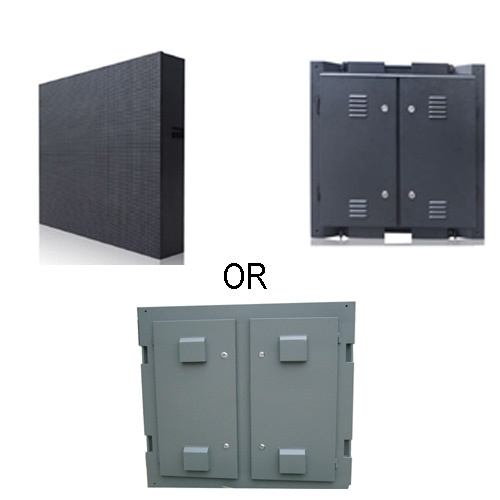

Standard Cabinet Size: 960mm X960mm X 150mm or Other Size
Packed: Wooden Case or Flight Case
Export Markets: Global
DOT Pitch: 10 mm
Module Size: 160 mm*160 mm
LED Encapsulation: DIP 346 (Epsitar)
Max Power/Sqm: 1000W/Sqm
Color Combination: 1r1g1b
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: ETL

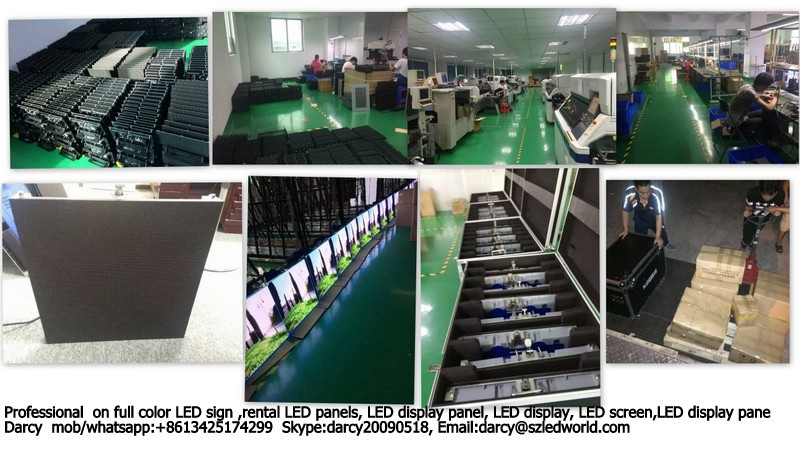

Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.

Warmly welcome you visit our company to innovate and win glory together.
