P6 indoor rental led display Applications]: Government plaza, Leisure square, big entertainment plaza, prosperous trade Center, Advertising information publishing brand, commercial street, railway station, Airport, Bus station, passenger station, Station, Dock, Shopping mall, Supermarket, Hospital, Hotel, Bank, Security market, Auction, Stadium.
Certificates

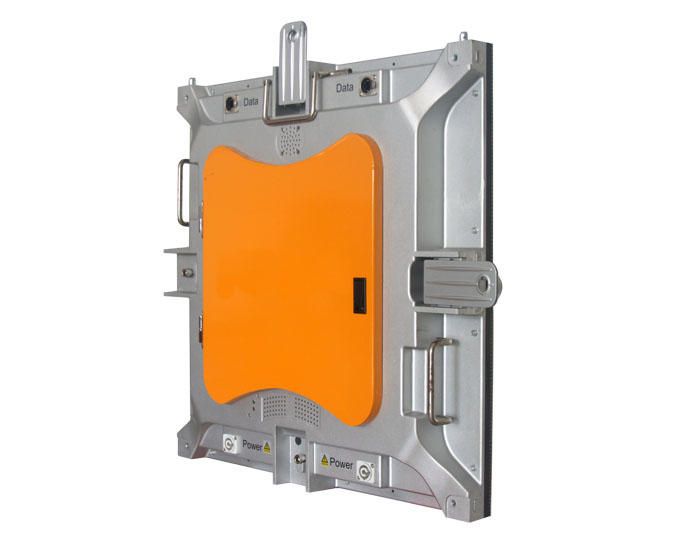

P6 indoor full color led display specification ;
| Item | Indoor rental LED display 512 x 512 Series |
| Pixel Pitch(mm) | 6mm |
| Pixel density(pix/m2) | 3528 |
| Module Size(mm) | 192mm x 192mm |
| Cabinet Size(mm) | 576mm x 576mm |
| Brightness | ≥1800cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/16 |
| View Angle | Horizontal 120° Vertical 120° |
| Optimal Viewing Distance | 3m to 50m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥600Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <3% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP45 |
| Temperature-operating | -40ºC~60ºC |
| Humidity-operating | 10%~90% |
| Operating System | Windows98//2000/NT/XP/win7 |
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
