Product Description:
Why US:
1.CE,RoHS,FCC
2.low consumption
3.quality insuranc PCIC
Production:

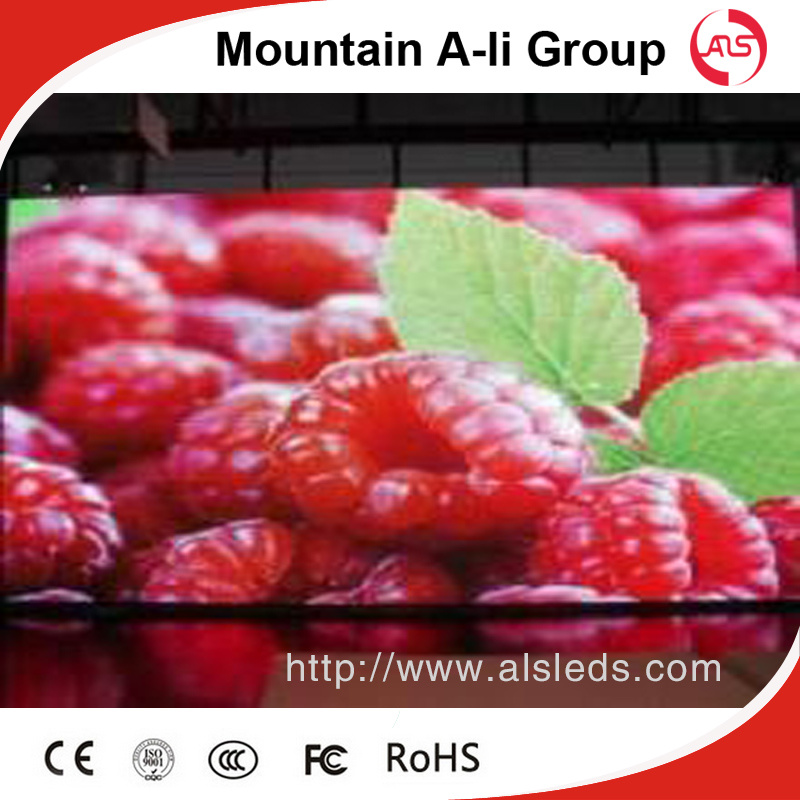

HD P6 indoor full color rental led display for stage performance
1). Model No.:P2mm, P3mm, P4mm, P5mm,P6,mm P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee:2 year
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Why choose us ?
1.Experience advantage: more than 10 years manufacturing experience, powerful factory!
2.Price advantage: Factory Outlet,No.1 cost effective
3.Quality advantage: superior LED lamp from our own factory, serious QC control system, best material(passed ISO 9001,CE,RoHS,IP65 waterproof certification...)
4.Service advantage: after service dept& Tech Dept.( 1-3 years guarantee period)
What is the packaging and shipping?
1. Packaging
We provide Flight Case ensure the use of appropriate packaging to protect the safety of the goods.
2. Transportation
you can freely choose box also the shipping way, by air, by sea or by train. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.
3. After-sales service
We offer a 1-3 year warranty service according different order, and to provide free technical guidance. We have a professional service team; they are always online waiting to serve you. During the warranty period, all damaged parts could be replaced free of charge.
What are the trade terms?
1. Trade terms: EXW, FOB, CIF, etc.
2. Payment terms: 30% deposit, balance before shipping
3. Payment methods: T/T, West Union, Paypal, L/C
4. MOQ:1(1 square meter)
5. Delivery:7-15days after deposit.
6. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
Product attributes:
Model Number | P3mm | P4mm | P5mm | P6mm | P7.62mm |
Module size | 192mm*96mm | 256mm*128mm | 320mm*160mm | 192mm*192mm | 244mm*244mm |
Pixel pitch | 3mm | 4mm | 5mm | 6mm | 7.62mm |
Pixels Density | 111111 /m2 | 62500 /m2 | 40000 /m2 | 27777 /m2 | 17222 /m2 |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Package mode | SMD2121 | SMD2121/SMD0805 | SMD3528 | SMD3528 | SMD3528 |
Pixel resolution | 64dots(W)*32 dots(H) | 64dots(W)*32 dots(H) | 64dots(W)*32dots(H) | 32dots(W)*32dots(H) | 32dots(W)*32dots(H) |
Scan mode | 1/16scan | 1/16scan | 1/16scan/ 1/8scan | 1/8scan / 1/4scan | 1/8scan/1/16scan |
Port type | HUB75-A | HUB75-A | HUB75-A | HUB75-A | ≥1500cd/m2 |
Brightness | ≥1800cd/m2 | ≥1200cd/m2 | ≥1500cd/m2/≥2800cd/m2 | ≥2200cd/m2 ≥3000cd/m2 | ≥1500cd/m2 /≥800cd/m2 |
Cabinet size | 576mm*576mm | 512mm*512mm | 640mm*640mm | 576mm*576mm | 732mm*732mm |
Power supply | 5V/40A*3pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs |
Pixel per cabinet | 192*192 | 128*128 | 128mm*128mm | 96mm*96mm | 96mm*96mm |
Best viewing distance | 3M ~ 20M | 4M ~ 20M | 5M ~ 30M | 6M ~ 40M | 7M ~ 40M |
Best viewing distance | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) |
Temperature | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree |
Relative humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
Screen thickness | 85mm | 85mm | 85mm | 85mm | 85mm |
Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
Average Power | 180W/ m2 | 185W/ m2 | 180W/ m2 | 220W/ m2 | 160W/ m2 |
Max.Power consumption | ≤360W/ m2 | ≤550W/ m2 | ≤500W/ m2 | ≤650W/ m2 | ≤480W m2 |
Refresh frequency | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ |
Grey scale/colo | 256levels of each color(RGB)/16.7M colors | 256levels of each 256levels of each color(RGB)/16.7M colors color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors |
MTBF | ≥9000hours | ≥9000HZ | ≥9000hours | ≥9000hours |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
