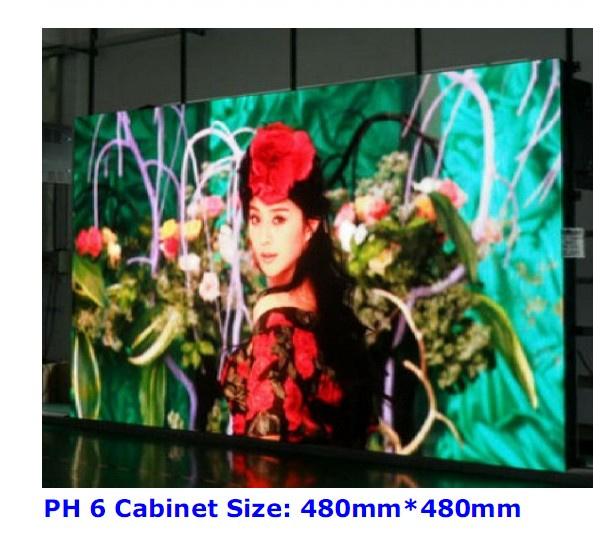

P6 Indoor Die Casting SMD LED Color LED Display
| Price: |
US $ 1850/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
2012 Best seller! P6 Indoor die casting SMD LED Color LED Display
Amazing features:
*Uniform cabinet size
Indoor series: 480mmx480mm, Outdoor series:640mmx640mm
*Special size modules
4 pieces modules = 1 piece cabinet display
Indoor module series size: 240mmx240mm
Outdoor module series size: 320mmx320mm
*Ultra thin and light
Indoor series: 7.2kg/cabinet, thickness 64mm,
Outdoor series: 17kg/cabinet, thickness 105mm
*Simple structure
No flat cable, No 5v power wire, No hub board
*Fast lock design, easy installation
30 cabinets can be installed only within One hour
1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Item PH6
Module
Pixel Pitchmm6
Pixel Densitydots/m227777
LED Encapsulation SMD3528
Pixel Composition 1R1G1B
Module ResolutionLxW dots40x40
Module SizeLxW mm240x240
Driving Method 1/10 scan
Cabinet Die-cast/Iron Cabinet
Cabinet weightkg7.2
Assemble Method Fast lock/Fix
Screen Performance
Min.Viewing Distancemeter> =6
Brightness 1500-2200
Viewing angleHorizontal140°
Vertical140°
Max. Power Consumptionw/m2850w
Operating VoltageV220v±15% or 110v±15%
Working Temperature -20~+50
Working Humidity%10%~90%
Storage Temperature -30~+60
Storage Humidity%10%~90%
MTBFHours> =9000
Life TimeHours> =50000
IP Level > =IP43
Authentication CCC/CE/FCC/ROHS
System Configuration
Malfunction Dot rate < 1/10000
Control system Synchronous Control
Driving mode Constant current driving
Grey Scale GradeBit16
ColorM16.7
Frame FrequencyHZ> =60
Refresh FrequencyHZ> =1350
|
ITEM |
PH6 |
|
Pixel Pitch(mm) |
6mm |
|
Constitution of Pixel |
1R1G1B |
|
Scan Mode |
1/8 |
|
Brightness (cd/m 2 ) |
> 2500cd |
|
Average Power (W/m 2 ) |
450W |
|
Max Power (W/m 2 ) |
850W |
|
Pixel of Module (dot) |
40*40 |
|
Module Size(mm) |
192mm× 96mm |
|
Pixel Density (dots/m 2 ) |
27, 777dots |
|
Viewing Distance(m) |
4m-115m |
|
Weight (kg/m 2 ) |
53kg |
|
LED Drivemode |
Constant Current |
|
Gray scale |
12-16bit |
|
Refresh Rate |
1, 300-10, 000Hz |
|
Frame-changing Frequency |
More than 60Hz |
|
Display Interface |
VAG+DVI display card |
|
Display Mode |
768× 576, 960× 768 |
|
Control Mode |
Point to Point connect between LED display and Computer |
|
Transmission Distance |
CAT-5E≤ 130m/Multi-mode Optical Fiber≤ 500m / Single Mode Optical Fiber≤ 10km |
|
Video Acceptable |
TV, VCD, DVD |
|
Continuous Working Hours |
> 72 Hours |
|
Using Life |
100, 000 Hours |
|
MTBF |
> 10, 000 Hours |
|
IP Grade |
In-door IP43 |
|
Working Temperature |
-35 to +60 |
|
Working Humidity |
In-door 10-60% |
| Prod Model: |
PH6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD 3528 |
| P6 Module Size: |
240mmx240mm |
| P6 Cabinet Size: |
480mmx480mm |
| P6 Cabinet Weight: |
7.2kg |
| LED Brightness: |
1500-2000CD/Sqr |
| Viewing Angle: |
H:120; V:120 |
| Viewing Distance: |
More Than 6m |
| Max Power Consumption: |
850W |
| Frame Frequency: |
>=60Hz |
| Refresh Frequency: |
>=1350Hz |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Certification: |
CE |
| Application: |
Stage Performance |
| Scanning Mode: |
1/10 Scan |
