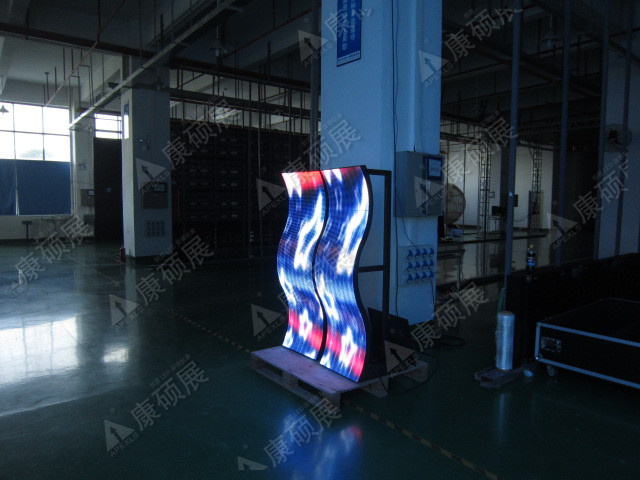

P6.67 Flexible LED Display
| Price: |
US $ 3000/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Paypal,Western Union |
1) Description.
It has high brightness, high refresh rate and true color output. The brightness adjustment level can reach Grade 256 and the refresh rate is between 400 and 1500 frame per second. It can be any creative design with flexible module. Flexible LED screen, panel or curtain can be used both indoors and outdoors. It can also be put directly in water for immersion test.
2)Application
Flexible LED displays are widely used in science and technology museums, galleries, lounges, hotels, high-speed railway stations, subway stations, shopping malls, bars and other places. The new forms
3)Main features
1>Flexible: many irregular shapes are available such as cylinder, arch, round shape,convex, concave etc with support frame;
2>Ultra-light weight: only 0.48KG/pc, suitable for the place with strict weight limited, slim structure and instant installation will save 90% time and cost in transportation
3>Ultra slim: the maximum thickness is 8mm, popular with some occasion there are some limitation in maintenance space and even double screen
4> Maintain Conveniently: magnetic backing, easy to attach to any metal surface, Save cost of frame and installation space, maintain conveniently;
5> Custom Saving: custom charge you clearance fee based on module not screen body, save you a lot;
6> Quiet Occasion: Working with no fan, zero noise pollution makes it popular in Church, Meeting Room and quiet place.
4) Model: P6,P6.67,P10 or size can be customized
5.) Parameter
| Basic Parameters of Flexible LED Display |
| Pixel Pitch(mm) | 6mm | 6.67mm | 10mm |
| Pixel Density(dots/) | 27777 | 22500 | 10000 |
| LED Package | SMD3528 |
| Module Pixel (dots) | 48×32 (W*H) | 48×24 (W*H) | 32×16 (W*H) |
| Module Size (mm) | 288×192 (W*H) | 320×160(W*H) | 320×160(W*H) |
| Module Max power | ≤38W | ≤28w | ≤13W |
| Module Input Voltage(AC) | 5V |
| Ave. Power Consumption (W/) | ≤340 | ≤280 | ≤125 |
| Max. Power Consumption (W/) | ≤680 | ≤560 | ≤250 |
| Control System | VAG+DVI Card+Control Cards+Transmission Cables |
| Video Acceptable | TV VCD DVD |
| Display Mode | 640×480,800×600,1024×768,1280×960…1920×1200,2048×640 |
| Transmission Distance | CAT-5E<=130m /Multi-mode Optical Fiber<=500m / Single Mode Optical Fiber<=10km |
| Scan Mode | 1/8 |
| LED Drive Mode | Constant Current |
| Brightness (cd/) | 2500 | 1800 | 1000 |
| Viewing Distance(m) | ≥6 | ≥6.5 | ≥10 |
| Brightness Calibration | 256 grade |
| Gray Calibration | 4096 grade |
| Refresh Rate(Hz) | 2440 |
| Frame-changing Frequency | > 60Hz |
| Display color | 17M~69G |
| Continuous Working Hours | >72 |
| MTBF | >100,000 Hours |
| Scatter OOC Point | <0.01% |
| Working Temperature | -35ºC~+60ºC |
| Working Humidity | 10~60% |
| Prod Model: |
P6.67 Soft Led Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P6.67 |
| Pixel Composition: |
1r1g1b |
| LED Encapsulation: |
SMD3528 |
| Brightness: |
1000nit |
| Average Power Consumption: |
230W/M2 |
| Max Power Consumption: |
470W/M2 |
| Application Environment: |
Indoor |
| Module Size: |
320mmx160mm |
| Module Pixel Pitch: |
48X24dots |
| AC Input Voltage: |
110-240V ±10% |
| Tube Chip Color: |
Full Color |
| Scanning Mode: |
1/8 Scan |
| Certification: |
FCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Display Function: |
Animation, Text, Video, Pictures |
| Pixel Pitch: |
6.67mm |
| Pixel Density: |
22477dots/M2 |
| System Operating Platform: |
Win7, XP |
