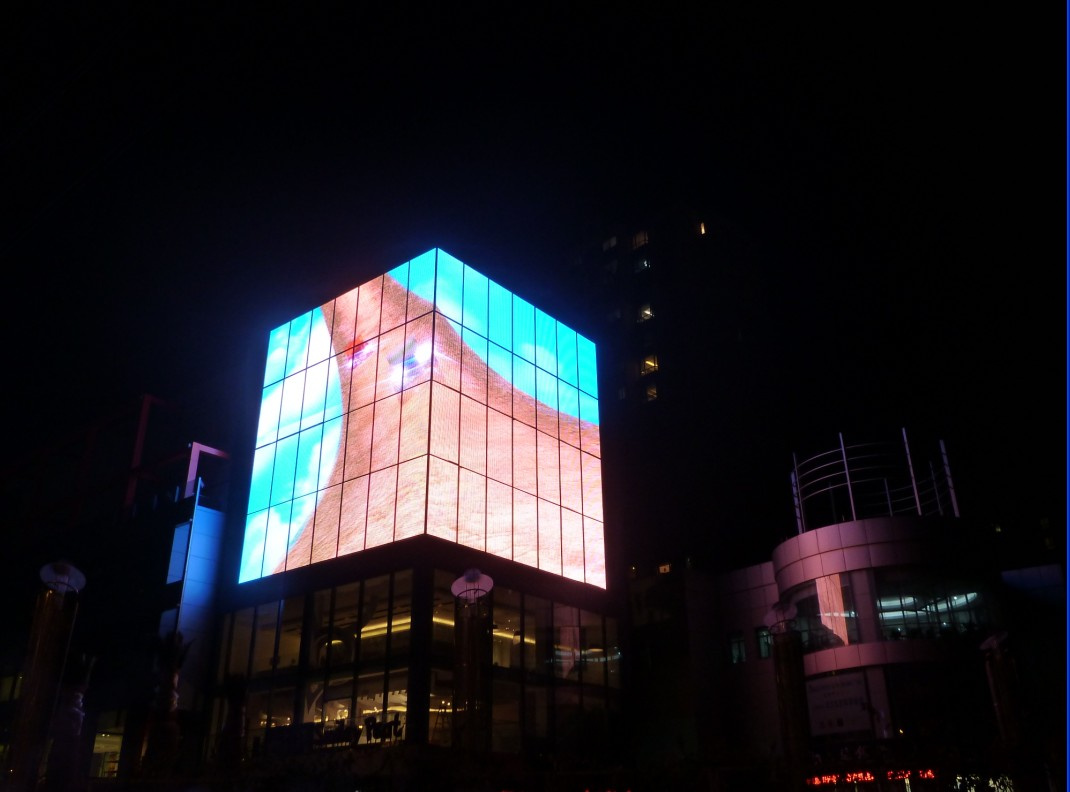

P50 Outdoor High Brightness Transparent LED Curtain Display
| Price: |
US $ 550/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
P50 outdoor high brightness transparent LED mesh display
Product Description
Specifications
Fanless design,
Good heat dissipation, keeping silent.
Cabinet body through the air rate of 30% -70%, wind resistance
Description
No need to remove the entire cabinet, only by removing the front light bar module to repair and maintenance.
Hook can be fully retracted, so that housing is dismountable from the middle of the screen body, convenient maintenance.
Without fans design, good heat dissipation, operating silent.
Double waterproof cushion seal patented design, protection grade IP 65, can adapt to complex outdoor environments.
Cabinet body transparent rate range from 30% -70%, wind resistance, high safety.
Up to 20 hanging cabinets, easy to assemble large-screen.
Parameter
Pixel Pitch |
50 mm |
Pixel Density(m²) |
4000 |
Pixel Composition |
3R 3G 3B |
Cabinet Size |
1200 mm*1200 mm*80 mm |
Cabinet Resolution |
24*24= 576 |
Number of Modules(One Cabinet) |
1*24=24 |
Cabinet Material |
Aluminum |
Number of Power(One Cabinet) |
5 V/60 A/4 |
Cabinet Net Weight |
19 kg/Sq. m. |
Cabinet Gross Weight |
23 kg/Sq. m. |
Package Size |
1280 mm*1340 mm*260 mm |
Red |
DIP 346; 625 nm, 1000 mcd |
Green |
DIP 346; 525 nm, 2000 md |
Blue |
DIP 346; 465 nm, 550 mcd |
Module Resolution |
1*40 |
Module Size |
1200*25*12(mm×mm×mm) |
Module Weight |
0.26 kg |
Power Consumption (Single Module) |
5 V, 14 W |
Brightness |
7500 cd /Sq. m. |
Gray Level |
16384 |
Color |
16700000 |
The Best Viewing Angle |
H: 120°, V: 60° |
The Best Viewing Distance |
30 m~200 m |
Scan Mode |
Static; Real |
Refresh Rate (Max) |
4000 Hz |
Input Voltage |
110 V/60 Hz, 220 V/50 Hz; |
Max Power Consumption |
260 W/Sq. m. |
Average Power Consumption |
120 W/Sq. m. |
Lifespan |
50000 h |
Operating Temperature |
-20°C~+50°C |
Operating Humidity Range |
10%RH ~ 90%RH |
Front Ingress Protection Index |
IP 65 |
Back Ingress Protection Index |
IP 65 |
| Prod Model: |
P50 Transparent LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P50 |
| Pixel Composition: |
3G3g3b |
| LED Encapsulation: |
DIP346 |
| Module Size: |
1200X25mm |
| Max Power Consumption: |
260W/M2 |
| Brightness: |
7500nit |
| Application Environment: |
Outdoor |
| Cabinet Size: |
1200X1200mm |
| Working Voltage: |
4.2V |
| Working Tempreature: |
-20 Deg-+60 Deg |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
50mm |
| Pixel Configuration: |
3r, 3G, 3b |
| Average Power Consumption: |
120W/M2 |
| Pixel Density: |
1111dots |
